Alternator replacing HITACHI LR150-435T / LR150-435S / LR150- 435

Information:

Voltage 14

Amp 50

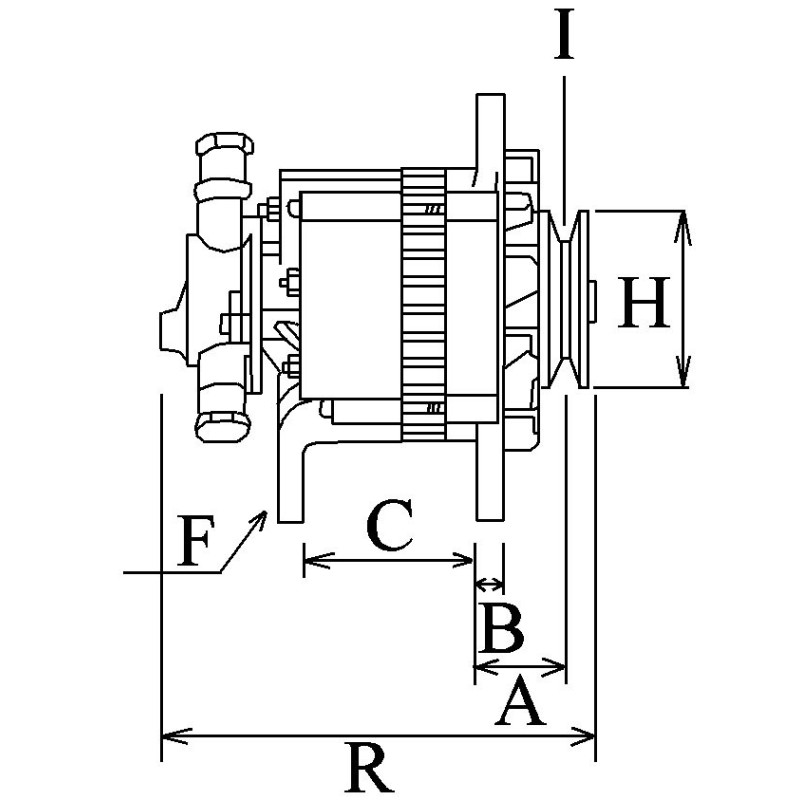

D = Bracket hole 10.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.30

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.50

H = Pulley dia. 86.00

A = Pulley dist. 41.80

Grooves/pulley 2

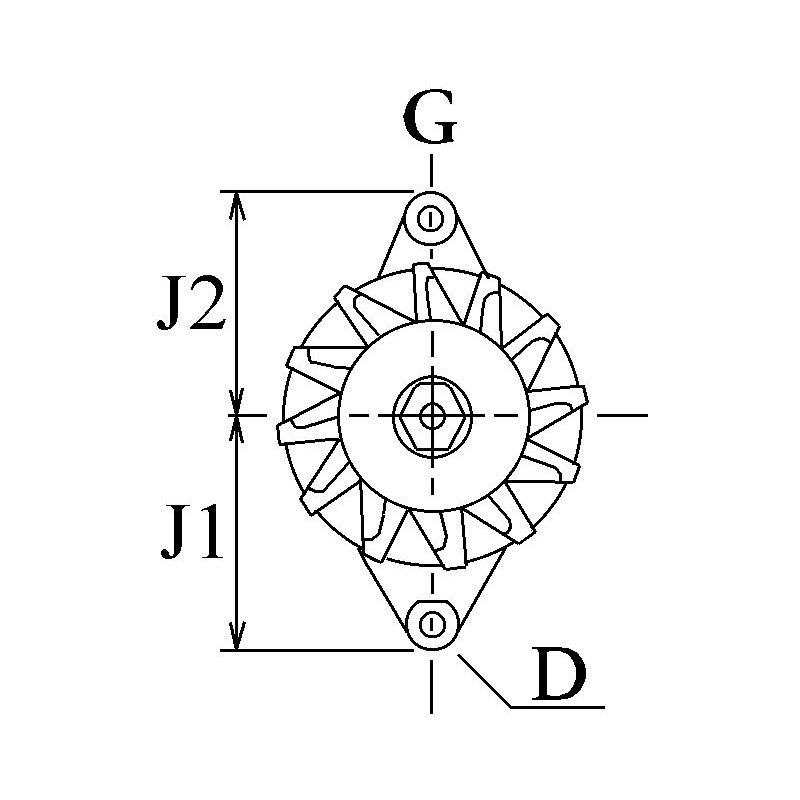

J = Radius 88.50

J = Radius 84.00

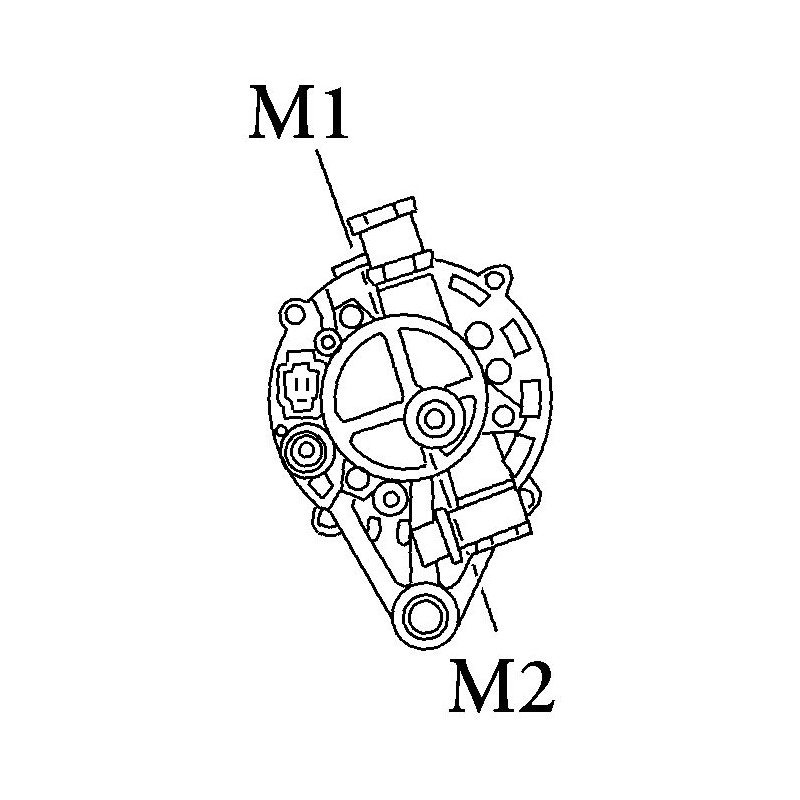

Position B + M6

Rotation Cr

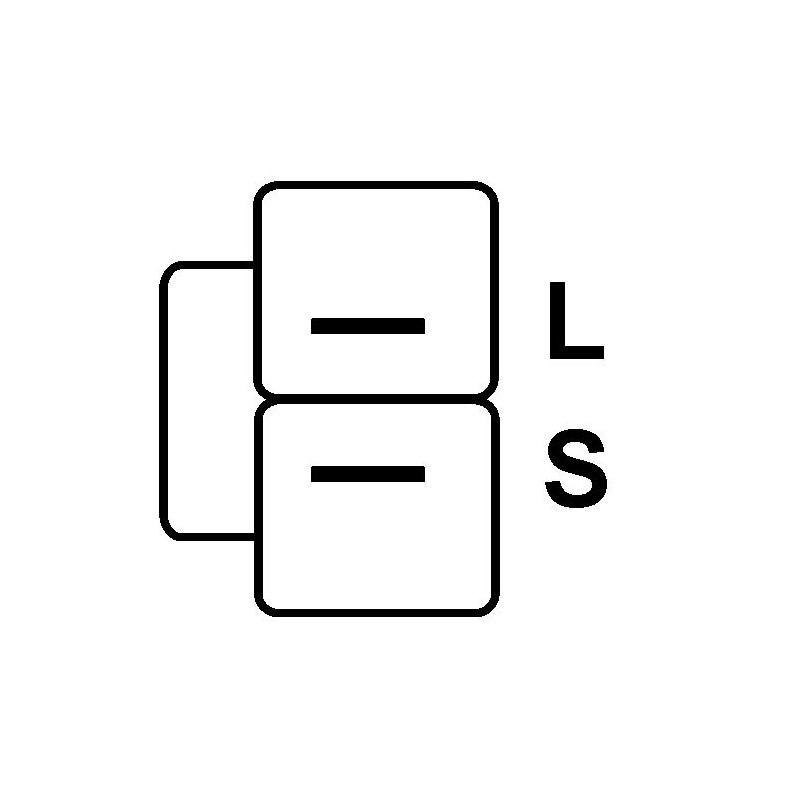

Plug no. 1 PL07

Fan Ef

Pulley Pulley double

R = Total length mm 258.00

= HITACHI LR150-435T / LR150-435S / LR150-435 / LR150-430T / LR150-430S / LR150-430C
LR150-430

= NISSAN 23100-02n12 / 23100-02n16 / 23100-02n20 / 23100-11t10 / 23100-11t13

                                            TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
