Alternator replacing 2609780 / 2616564 / 37300-2B600 HYUNDAI / KIA

W115692

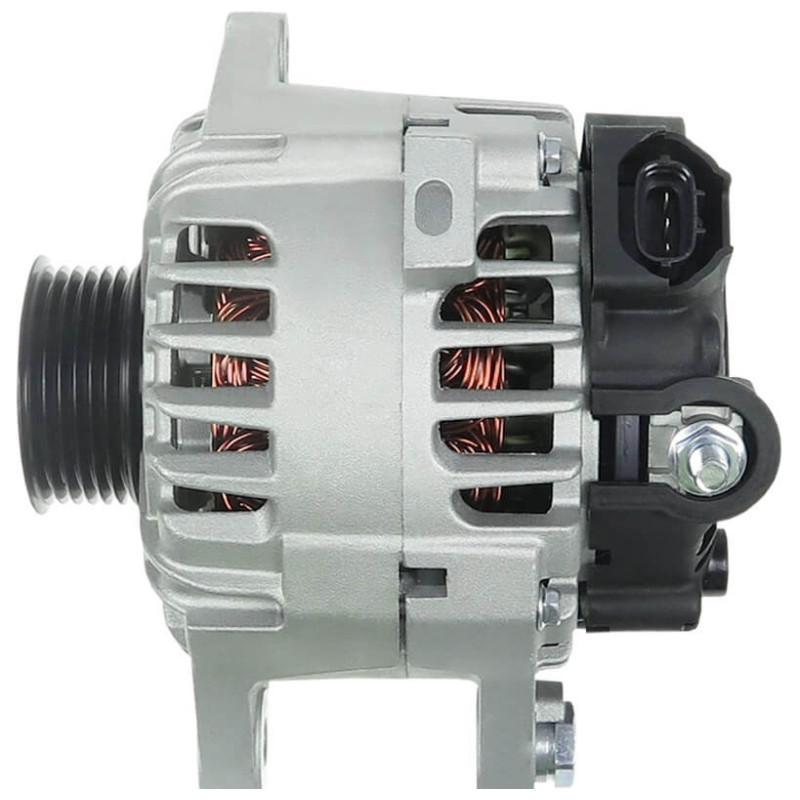

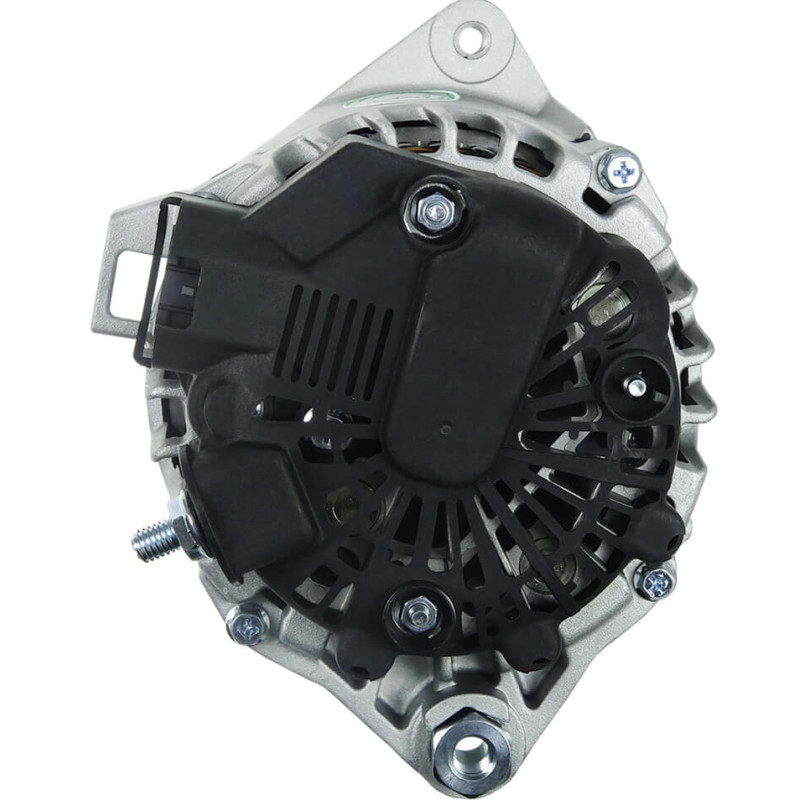

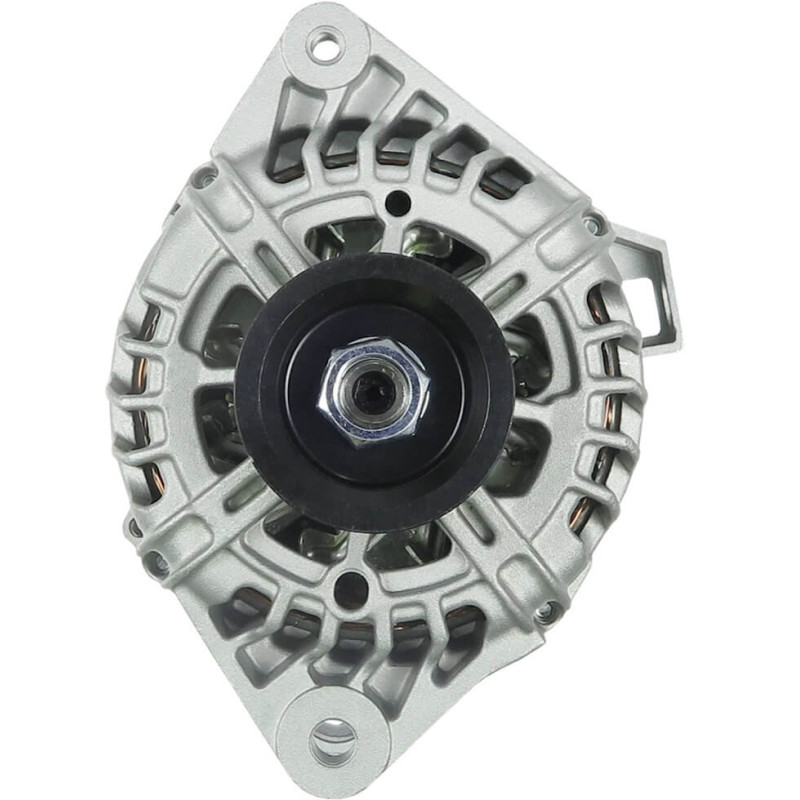

BRAND NEW 110-amp alternator / 6-groove pulley

replacing VALEO 2609780 / 2616564

HYUNDAI 37300-2B600

Kia 37300-2B600, 37300-2B600RU, 37300-2B610

NO CORE EXCHANGE NEEDED

Read more
€138.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

A9178 AS-PL
UD103158A AS-PL
UD12125A AS-PL
AEK3366 AUTOELECTRO
115692 CARGO
F032115692 CARGO
11146 DELCO
DRA0921 DELCO
A-9586 DIXIE
ALT00721 ELECTROLOG
28-5978 ELSTOCK
210308 ERA
CA2138IR HC PARTS
J5110321 HERTH+BUSS
37300-2B600 HYUNDAI / KIA
553612RIV KUHNER
446053 LOGISTIK
LRA03366 LUCAS
LRA3366 LUCAS
55151136 MEAT & DORIA
A12VA0673 SIDAT
A12VA0673A2 SIDAT
STX110189 STARDAX
STX110189R STARDAX
2609780 VALEO
155.577.090 WAI
155.577.110 WAI
155.577.110.346 WAI
155.577.110.462 WAI
255.512.110 WAI
A130.276 WAI
A130.288 WAI
A146.229 WAI
A147.212 WAI

Features

Information:

Electrical Information
Voltage 14
Amp 110
Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 15.00
E Belt. adj. brackethole pos. 51
C Mount. bracket dist 50.00
H Pulley dia. 58.00
A Pulley dist. 34.00
i Grooves/pulley 6
j Radius 85.00
k Position B + M8
n Rotation CW

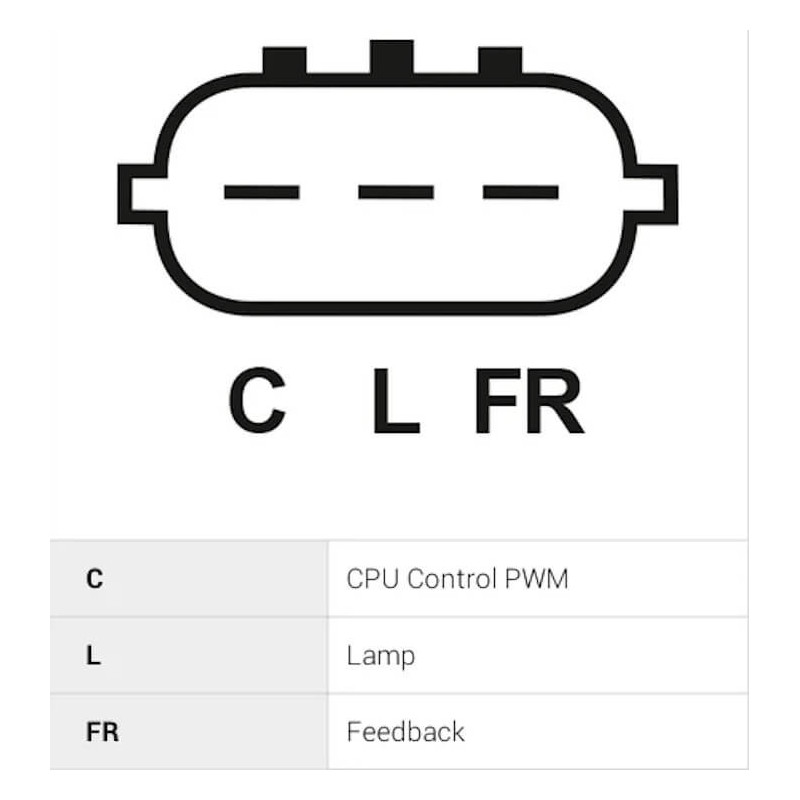

o Plug no. 1 PL176
R Total length mm 164.00

generic brand

All of our alternators and starters are new and come with a two-year warranty.

About Us


WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.

Our Logistics


Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.

Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product

Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers

Mounting on

Brand Model Typ Year
HYUNDAI i30 (GD) 1.4 G4FA 12.2011 - 12.2015
HYUNDAI i30 Estate (FD) 1.4 G4FA 11.2009 - 06.2012
HYUNDAI i30 (FD) 1.4 G4FA 10.2007 - 11.2011
HYUNDAI i30 Coupe 1.4 G4FA 05.2013 - 12.2014
HYUNDAI i30 (FD) 1.4 G4FA 10.2007 - 11.2011
HYUNDAI i20 I (PB, PBT) 1.4 G4FA 09.2008 - 12.2015
HYUNDAI i30 Estate (GD) 1.4 G4FA 06.2012 - 12.2015
HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019
HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019
HYUNDAI i30 Estate (FD) 1.4 G4FA 10.2007 - 06.2012
HYUNDAI i30 Estate (GD) 1.4 G4LC 01.2014 - 05.2017
HYUNDAI ix20 (JC) 1.4 LPG G4FA 11.2010 - 07.2019
HYUNDAI i30 (GD) 1.4 LPG G4FA 01.2013 - 12.2014
HYUNDAI i30 Estate (FD) 1.4 LPG G4FA 11.2009 - 06.2012
HYUNDAI i30 (FD) 1.4 LPG G4FA 01.2009 - 11.2011
HYUNDAI ACCENT IV Saloon (RB) 1.6 G4FC 11.2010 - 12.2017
HYUNDAI i30 (FD) 1.6 G4FC 02.2008 - 11.2011
HYUNDAI i30 (FD) 1.6 G4FC 10.2007 - 11.2011
HYUNDAI i30 (FD) 1.6 G4FC 10.2007 - 11.2011
HYUNDAI i30 Estate (FD) 1.6 G4FC 02.2008 - 06.2012
HYUNDAI i30 Estate (GD) 1.6 G4FC 01/06/12
HYUNDAI i30 (GD) 1.6 G4FC 01.2012 - 12.2016
HYUNDAI ACCENT IV Saloon (RB) 1.6 G4FC 01/11/10
HYUNDAI ix20 (JC) 1.6 G4FC 11.2010 - 07.2019
HYUNDAI i30 Estate (FD) 1.6 G4FC 02.2008 - 06.2012
HYUNDAI i30 (GD) 1.6 G4FC 12.2011 - 12.2015
HYUNDAI i30 Estate (FD) 1.6 G4FC 02.2008 - 06.2012
HYUNDAI i30 Estate (GD) 1.6 G4FD 06.2012 - 12.2015
HYUNDAI ix35 (LM, EL, ELH) 1.6 G4FD 11.2010 - 12.2015
HYUNDAI i30 (GD) 1.6 G4FG 01.2012 - 12.2016
HYUNDAI i30 Estate (GD) 1.6 G4FG 01/06/12
HYUNDAI i30 Kombi Van (GDE, GD) 1.6 GDI G4FD 01/05/15
HYUNDAI i30 Coupe 1.6 GDI G4FD 01/05/13
HYUNDAI i30 (GD) 1.6 GDI G4FD 12.2011 - 12.2016
HYUNDAI i40 I CW (VF) 1.6 GDI G4FD 07.2011 - 05.2019
HYUNDAI i30 Estate (GD) 1.6 GDI G4FD 01/06/12
HYUNDAI i30 Hatchback Van (GDE) 1.6 GDI G4FD 01/05/15
HYUNDAI i40 I (VF) 1.6 GDI G4FD 03.2012 - 05.2019
HYUNDAI ix20 (JC) 1.6 LPG G4FC 11.2010 - 07.2019
HYUNDAI VELOSTER (FS) 1.6 MPI G4FC 04.2011 - 12.2017
HYUNDAI VELOSTER (FS) 1.6 MPI G4FG 04.2011 - 12.2017
HYUNDAI VELOSTER (FS) 1.6 T-GDI G4FJ 10.2012 - 12.2017
HYUNDAI ix35 Van GDi G4FD 05.2015 - 12.2015
KIA CEED Hatchback (ED) 1.4 G4FA 12.2006 - 12.2012
KIA CEED Hatchback (ED) 1.4 G4FA 12.2006 - 12.2012
KIA CEED SW (ED) 1.4 G4FA 09.2007 - 12.2012
KIA PRO CEED (ED) 1.4 G4FA 02.2008 - 09.2012
KIA PRO CEED (ED) 1.4 G4FA 02.2008 - 09.2012
KIA CEED SW (ED) 1.4 G4FA 10.2010 - 12.2012
KIA CEED Hatchback (ED) 1.4 CVVT G4FA 08.2009 - 12.2012
KIA VENGA (YN) 1.4 CVVT G4FA 02.2010 - 03.2019
KIA RIO III Hatchback Van (UB) 1.4 CVVT G4FA 01/04/15
KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018
KIA CEED SW (ED) 1.4 CVVT G4FA 07.2009 - 12.2012
KIA RIO III (UB) 1.4 CVVT G4FA 09.2011 - 12.2017
KIA CEED Sportswagon (JD) 1.4 CVVT G4FA 09.2012 - 07.2015
KIA PRO CEED (JD) 1.4 CVVT G4FA 07.2013 - 07.2018
KIA CEED Combi Van (JD) 1.4 CVVT G4FA 04.2015 - 07.2018
KIA PRO CEED (ED) 1.4 CVVT G4FA 06.2010 - 09.2012
KIA RIO III Saloon (UB) 1.4 CVVT G4FA 10.2011 - 12.2017
KIA PRO CEED (JD) 1.4 CVVT G4FA 03.2013 - 07.2015
KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018
KIA CEED SW (ED) 1.4 LPG G4FA 01.2009 - 12.2010
KIA VENGA (YN) 1.4 LPG G4FA 02.2010 - 03.2019
KIA CEED Hatchback (ED) 1.4 LPG G4FA 01.2009 - 12.2010
KIA PRO CEED (ED) 1.6 G4FC 02.2008 - 09.2012
KIA CEED Hatchback (ED) 1.6 G4FC 02.2008 - 12.2012
KIA PRO CEED (ED) 1.6 G4FC 02.2008 - 09.2012
KIA CEED SW (ED) 1.6 G4FC 09.2007 - 11.2012
KIA CEED Hatchback (ED) 1.6 G4FC 09.2007 - 12.2012
KIA CEED SW (ED) 1.6 G4FC 09.2007 - 12.2012
KIA CEED Hatchback (ED) 1.6 G4FC 12.2006 - 12.2012
KIA CEED SW (ED) 1.6 G4FC 09.2007 - 12.2012
KIA RIO II Saloon (JB) 1.6 16V G4ED 03.2005 - 12.2011
KIA RIO III Saloon (UB) 1.6 CVVT G4FC 06.2012 - 12.2017
KIA CEED Hatchback (ED) 1.6 CVVT G4FC 10.2010 - 12.2012
KIA CEED SW (ED) 1.6 CVVT G4FC 06.2009 - 12.2012
KIA RIO III (UB) 1.6 CVVT G4FC 06.2012 - 12.2017
KIA PRO CEED (ED) 1.6 CVVT G4FC 10.2010 - 02.2013
KIA VENGA (YN) 1.6 CVVT G4FC 02.2010 - 03.2019
KIA SOUL II (PS) 1.6 CVVT G4FG 02.2014 - 12.2018
KIA SOUL I (AM) 1.6 GDI G4FD 06.2011 - 12.2014
KIA CEED (JD) 1.6 GDI G4FD 05.2012 - 07.2018
KIA SOUL II (PS) 1.6 GDI G4FD 02.2014 - 12.2018
KIA CARENS IV 1.6 GDi G4FD 03.2013 - 08.2016
KIA CEED Sportswagon (JD) 1.6 GDI G4FD 09.2012 - 07.2018
KIA CEED Combi Van (JD) 1.6 GDi G4FD 04.2015 - 07.2018
KIA PRO CEED (JD) 1.6 GDI G4FD 03.2013 - 07.2018
KIA SPORTAGE III (SL) 1.6 GDI G4FD 06.2010 - 12.2015
KIA CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018
KIA PRO CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018
KIA CEED Hatchback (ED) 1.6 LPG G4FC 06.2007 - 12.2011
