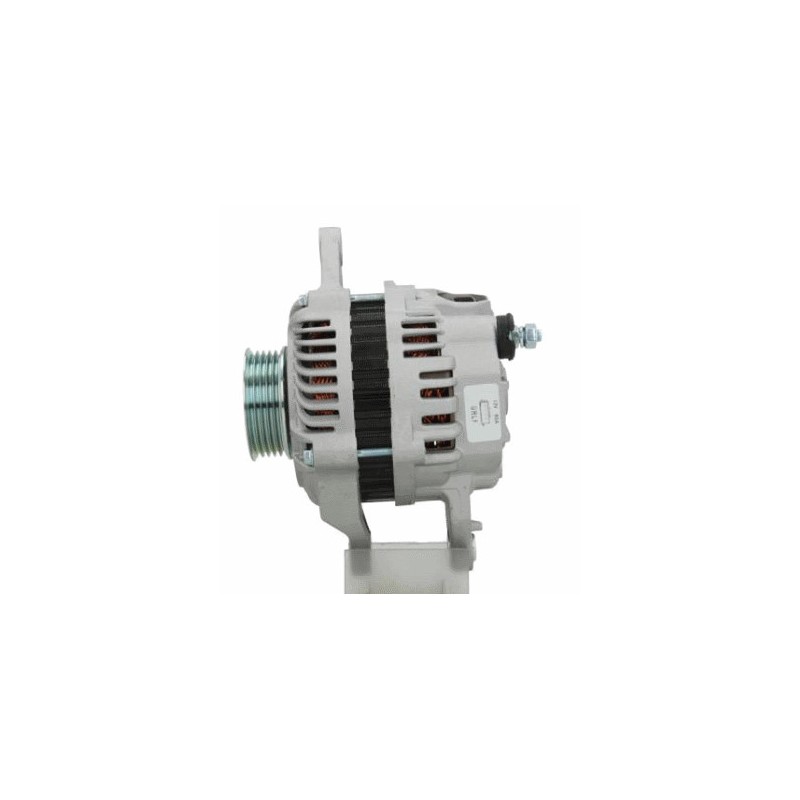

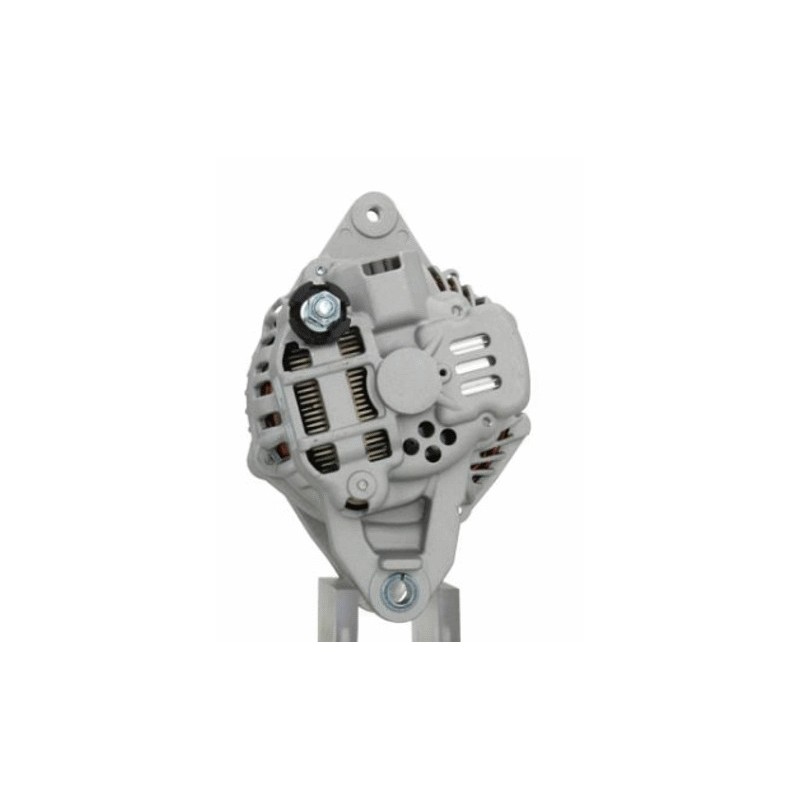

Alternator replacing A005TG0091 / A005TG0091A / A005TG0091AE
Alternator replacing :
BOSCH 0986080480
DELCO REMY DRA0148
MERCEDES-BENZ A1351540102 / A1351540202
MITSUBISHI A005TG0091 / A005TG0091A / A005TG0091AE
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 85 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 45.00 |
| H | Pulley dia. | 63.00 |
| A | Pulley dist. | 48.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

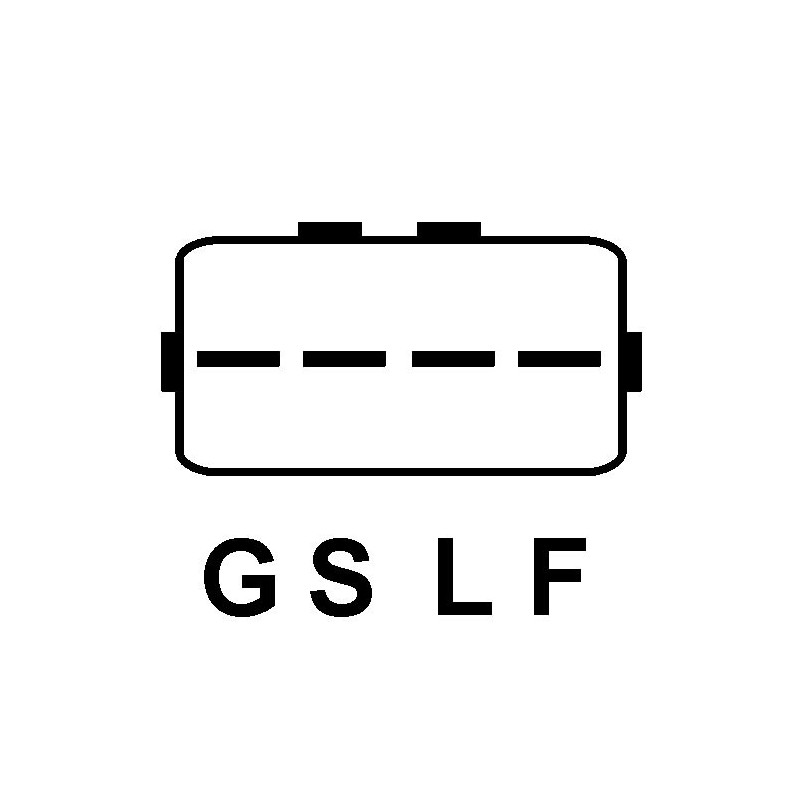

| o | Plug no. 1 | PL68 |
| R | Total length mm | 166.00 |
generic brand
replacing :
| Numéro from reference | Producer |
|---|---|
| UD01780A | AS-PL |
| AEB1895 | AUTOELECTRO |
| 0986080480 | BOSCH |
| 115441 | CARGO |
| CAL35206 | CASCO |
| CAL35206AS | CASCO |
| CAL35206GS | CASCO |
| CAL35343GS | CASCO |
| 9344 | CEVAM |
| DRA0148 | DELCO |
| EAA-224015 | EAA |
| 57256 | EAI |
| 28-4965 | ELSTOCK |
| 209350 | ERA |
| 9090457 | FRIESEN |
| JA1895IR | HC PARTS |
| 8EL738211-311 | HELLA |
| ALM1895 | KRAUF |
| ALM9895 | KRAUF |
| 11.1895 | LAUBER |
| 11.1895M | LAUBER |
| LRA02849 | LUCAS |
| 63303501 | MAGNETI MARELLI |
| 944390904570 | MAGNETI MARELLI |
| 1351540102 | MERCEDES |
| 1351540202 | MERCEDES |
| A1351540102 | MERCEDES |
| A1351540202 | MERCEDES |
| 1800A070 | MITSUBISHI |
| 1800A222 | MITSUBISHI |
| 1800A248 | MITSUBISHI |
| A005TG0091 | MITSUBISHI |
| A005TG0091AE | MITSUBISHI |
| A005TG0091BE | MITSUBISHI |
| A005TG0091ZE | MITSUBISHI |
| A5TG0091 | MITSUBISHI |
| A5TG0091AE | MITSUBISHI |
| A5TG0091BE | MITSUBISHI |
| A5TG0091ZE | MITSUBISHI |
| A5TG1691ZE | MITSUBISHI |
| MN155953 | MITSUBISHI |
| 89213273 | POWERMAX |
| 155.539.085 | PSH |
| SB218 | SOVEREIGN |
| 23849N | WAI / TRANSPO |
| 23849R | WAI / TRANSPO |
| ALT31286 | WOODAUTO |
| MITA5TG0091 | WOODAUTO |
| 20137602BN | REAL |
| 20137602OE | REAL |
| 20137343OE | REAL |
fits:
| Brand | Model | Tipo | Year |
| MITSUBISHI | Colt 1.1 | [3A91] | 10.2004-06.2012 |
| MITSUBISHI | Colt 1.3 BiFuel | [4A90] | 06.2004-06.2012 |
| MITSUBISHI | Colt 1.5 | [4A91] | 06.2004-06.2012 |
| MITSUBISHI | Colt 1.5 | [4A91] | 05.2006-07.2009 |
| SMART | Forfour 1.1 | [M134.911] | 01/02/05 |
| SMART | Forfour 1.5 | [M135.950] | 01/01/04 |
