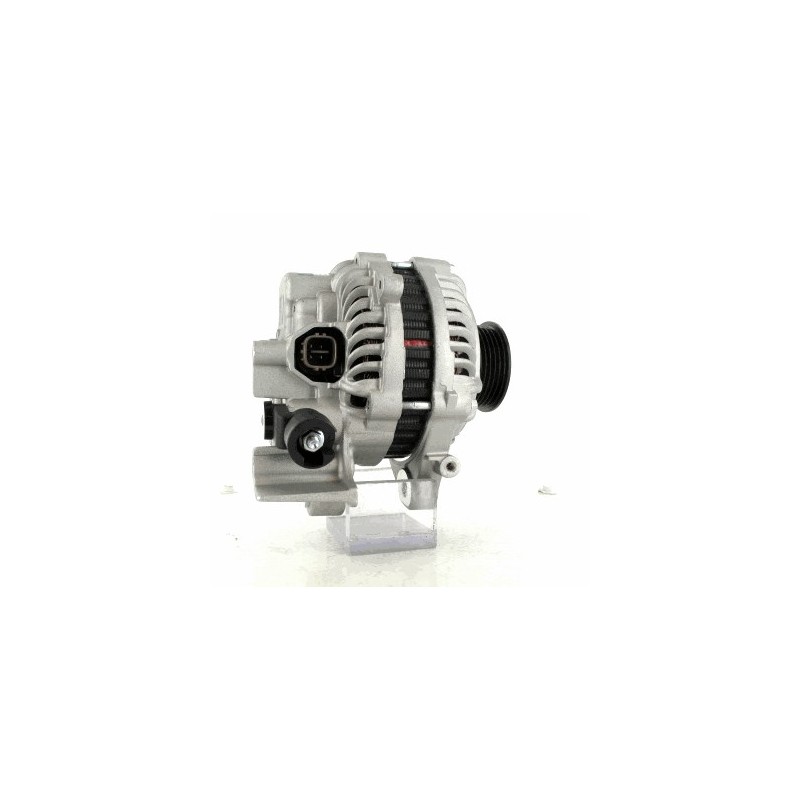

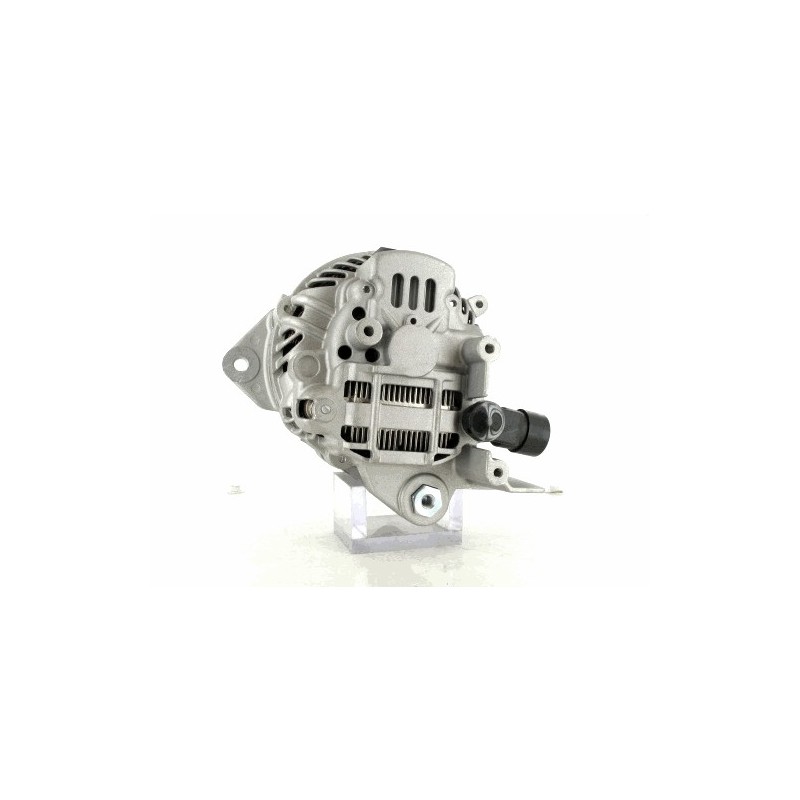

Alternator replacing MITSUBISHI A002TC1391ZC / A002TC1391ZE
Alternator NEW replacing:
- BOSCH 0986080730
- HONDA 31100-rna-a01 / ahga67
- MITSUBISHI A2TC1391 / a2tc1391zc / A2TC1391ZE / A002TC1391ZC / A002TC1391ZE / A002TC1391
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14 - Amp 90
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.00 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 20.00 |
| E | Belt. adj. brackethole pos. | 13 |
| C | Mount. bracket dist | 40.50 |
| H | Pulley dia. | 60.00 |
| A | Pulley dist. | 44.50 |
| i | Grooves/pulley | 7 |
| j | Radius | 85.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

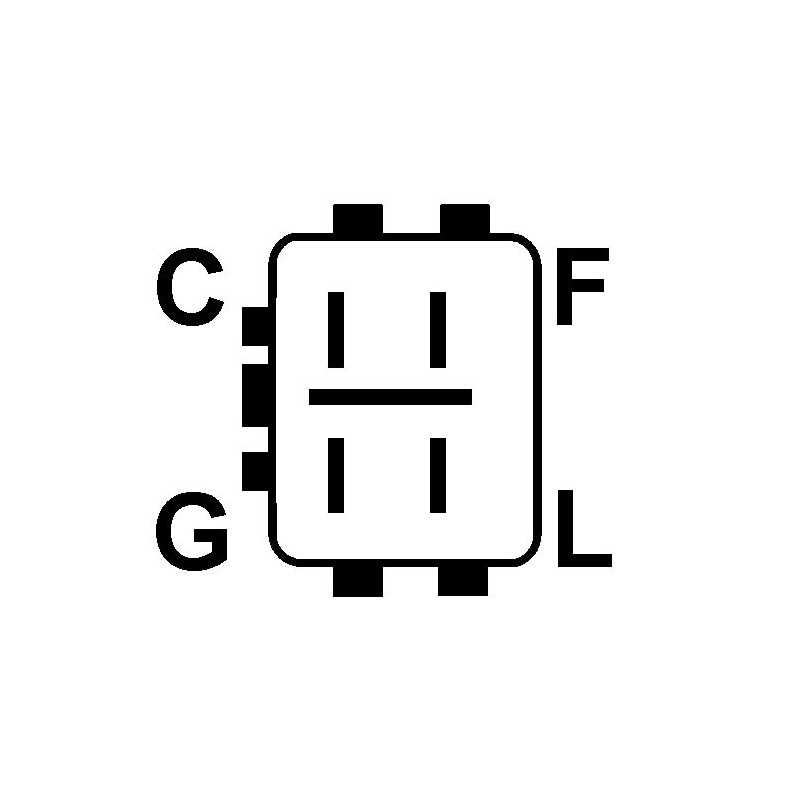

| o | Plug no. 1 | PL65 |
| R | Total length mm | 170.00 |
Replacing | |
|---|---|
| DRA0531 | DELCO REMY |
| 31100-rna-a01 | HONDA |
| LRA03157 | LUCAS |
| A002TC1391ZC | MITSUBISHI |
| A002TC1391ZE | MITSUBISHI |
| A2TC1391 | MITSUBISHI |
| a2tc1391zc | MITSUBISHI |
| A002TC1391 | MITSUBISHI |
| A2TC1391ZE | MITSUBISHI |
| AHGA67 | HONDA |
| ca1981ir | HC-PARTS |
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Civic | Civic | 1.8 | Unleaded | 2005 09 | 2012 02 | R18A1 | 103 | 140 | 1798 | 4 | FD_ | |||
| Civic | Civic | 1.8 | Unleaded | 2006 02 | - | R18A1 | 103 | 140 | 1799 | 4 | FD_ | |||
| Civic | Civic | 1.6 | Unleaded | 2005 09 | - | R16A1 | 92 | 125 | 1586 | 4 | FD, FA | |||
| Civic | Civic | 1.8 | Unleaded | 2006 01 | - | 97 | 132 | 1799 | 4 | FD | ||||
| Civic | Civic | 1.8 | Unleaded | 2005 09 | 2005 09 | R18A1 | 103 | 140 | 1798 | 4 |
| Civic | Civic | 1.8 | Unleaded | 2006 01 | - | R18A2 | 103 | 140 | Hayon | 1799 | 4 | FD_ | ||
| Civic | Civic | 1.8 | Unleaded | 2010 11 | - | R18Z1 | 104 | 141 | 1798 | 4 | FD, FA | |||
| FR-V | FR-V | 1.8 | Unleaded | 2007 01 | - | R18A1 | 103 | 140 | Hayon | 1799 | 4 |
| Civic | Civic | 1.7 | Unleaded | 2001 01 | 2006 04 | 96 | 130 | 1691 | 4 | ES | ||||
| Civic | Civic | 1.8 | Bi-Fuel | 2006 11 | - | Flexfuel | 103 | 140 | 1798 | 4 | FD | |||
| Civic | Civic | 2.0 | Unleaded | 2008 01 | - | K20Z4 | 141 | 192 | 1998 | 4 | FD, FA |
| Civic | Civic | 1.8 | Unleaded | 2006 04 | - | R18A1 | 103 | 138 | 1798 | 4 |
