Alternator NEW replacing HITACHI LR170-768 / LR165-714

Information :

Voltage 14

Amp 65

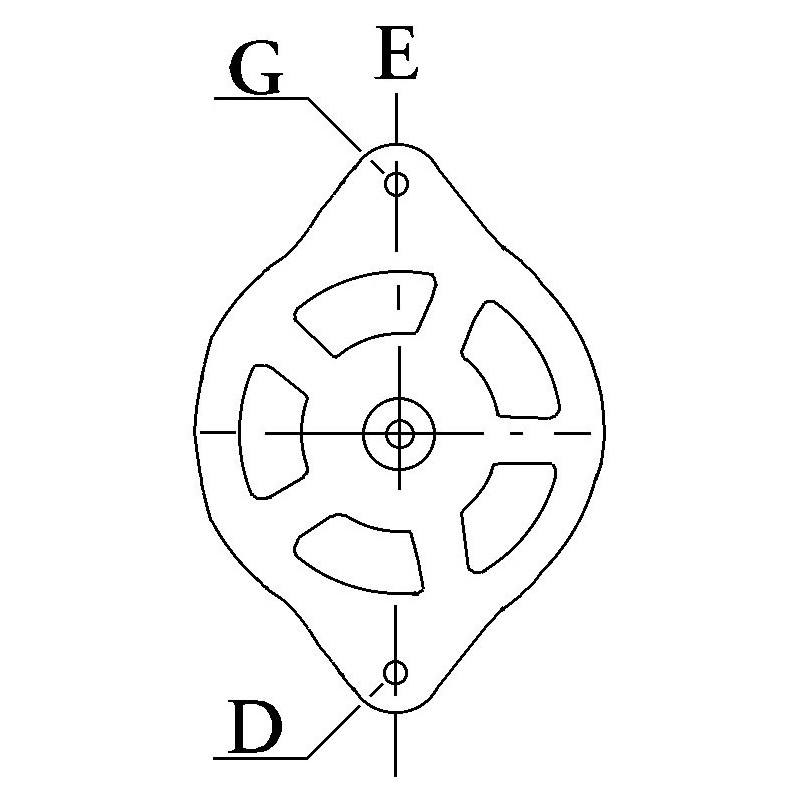

D = Bracket hole 10.42

G = Belt. adj. bracket hole 10.00

B = Width/holder arm 24.50

E = Belt. adj. brackethole pos. 55

C = Mount. bracket dist 66.50

H = Pulley dia. 50.00

A = Pulley dist. 38.00

Grooves/pulley 6

J = Radius 83.50

J = Radius 91.50

Position B + M8

Rotation COUNTER CLOCKWISE

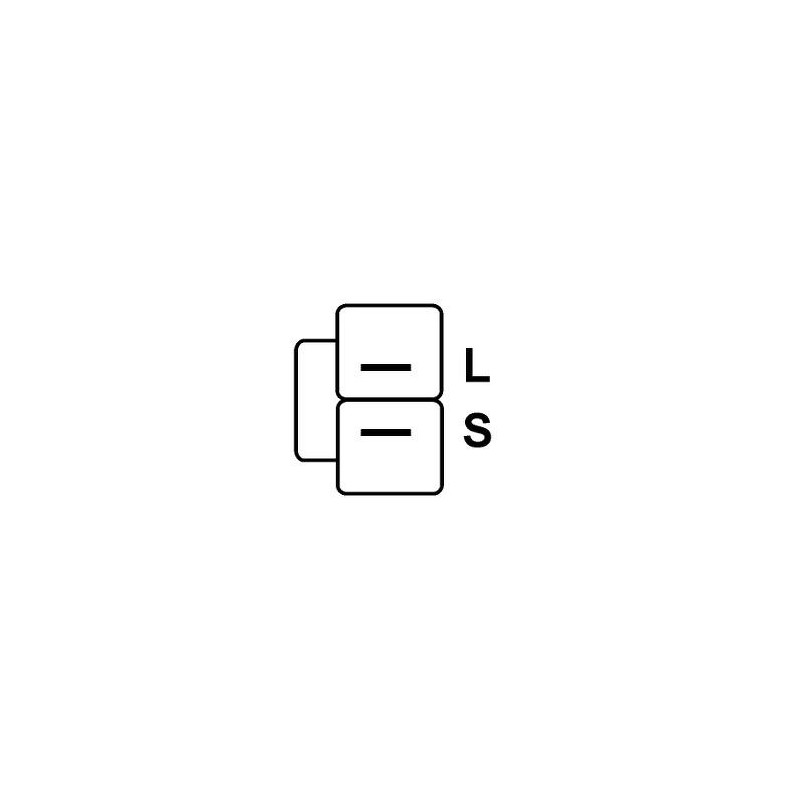

Plug no. 1 PL07

Fan Ef

Pulley Serpentine Pulley

R = Total length mm 158.00

= BOSCH 0986080210

= DELCO REMY DRA3947

= HELLA 8EL738210001

= LUCAS LRA02152

= NISSAN 23100-AN000 / 23100-ap000

                              NO CORE EXCHANGE NEEDED

                                                   TWO YEARS WARRANTY
