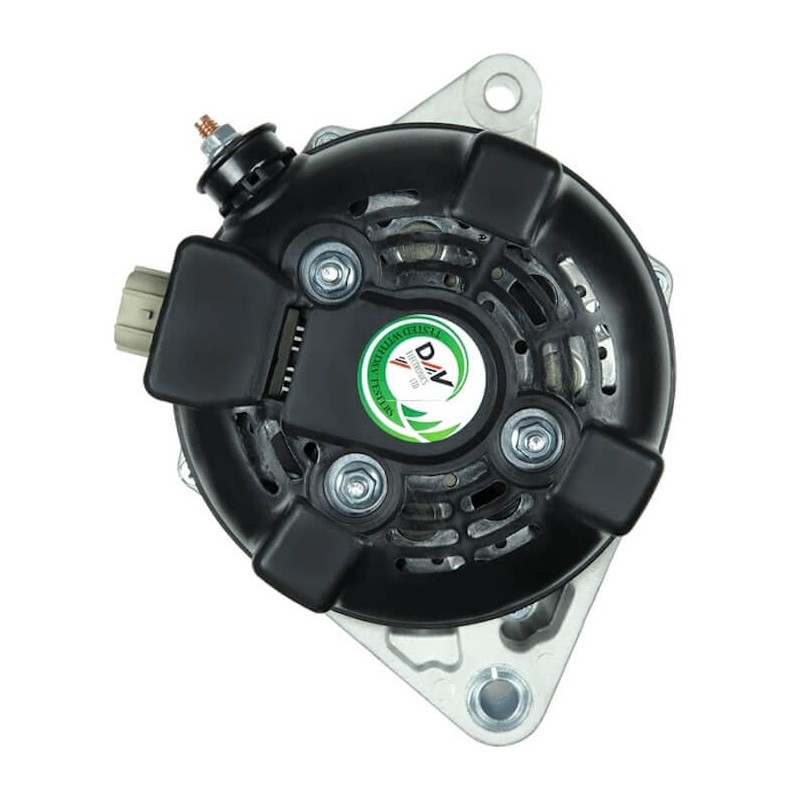

Alternator replacing DENSO 104210-3431 / 104210-3430
Alternator NEW replacing TOYOTA 27060-27060/ 27060-27090
= DENSO 104210-3431 / 104210-3430 / 102211-2760
= BOSCH 0986082030
= DELCO REMY DRA0831
= LUCAS LRA03288
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 14 - Amp 100
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.20 |
| B | Width/holder arm | 51.70 |
| E | Belt. adj. brackethole pos. | 55 |
| H | Pulley dia. | 58.20 |
| A | Pulley dist. | 92.50 |
| i | Grooves/pulley | 5 |
| j | Radius | 86.00 |
| j | Radius 2 | 89.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

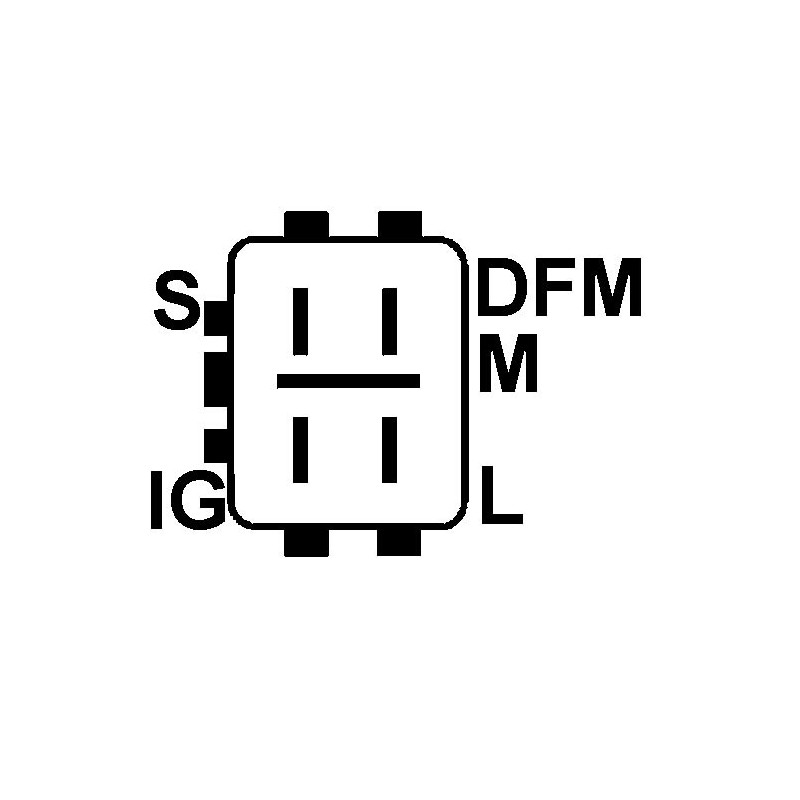

| o | Plug no. 1 | PL78 |
| R | Total length mm | 152.00 |
Generic brand
replacing
| A6007(P) | AS-PL |
| ALTL020 | 3EFFE |
| PRAL020 | 3EFFE |
| CGB-14284 | AINDE |
| CGB-84809 | AINDE |
| CGB-85900 | AINDE |
| 0986082030 | BOSCH |
| 114010 | CARGO |
| 114101 | CARGO |
| 195.572.100.415 | CASCO |
| CAL40331AS | CASCO |
| CAL40331GS | CASCO |
| 9315 | CEVAM |
| DA1941 | DELCO |
| DRA0831 | DELCO |
| RAA11942 | DELCO |
| 104210-3430 | DENSO |
| 104210-3431 | DENSO |
| DAN941 | DENSO |
| EAA-221589 | EAA |
| 57034 | EAI |
| 28-5900 | ELSTOCK |
| 210930 | ERA |
| AG0848 | GHIBAUDI |
| CA1950IR | HC PARTS |
| 8EL012240-961 | HELLA |
| ALN1950 | KRAUF |
| 301950RI | KUHNER |
| LRA03288 | LUCAS |
| LRA3288 | LUCAS |
| 063731950010 | MAGNETI MARELLI |
| 943319501010 | MAGNETI MARELLI |
| 944390907420 | MAGNETI MARELLI |
| MQA1950 | MAGNETI MARELLI |
| MRA90742 | MAGNETI MARELLI |
| 89213276 | POWERMAX |
| 195.572.100.050 | PSH |
| 195.572.100.260 | PSH |
| 20132133BN | REAL |
| 20132133OE | REAL |
| ALT567CP | ROLLCO |
| 2040331.0 | SANDO |
| 2040331.1 | SANDO |
| ALT421710 | SIOM |
| 27060-27090 | TOYOTA |
| 23316R | WAI / TRANSPO |
| ALT30284 | WOODAUTO |
| 447145 | LOGISTIK |
| A12DE0238A2 | SIDAT |
| ALT6177 | ELECTROLOG |
| ALT6177A | ELECTROLOG |
Fits :
| Brand | Model | Typ | Year |
| TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 01.2003-12.2008 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2002-12.2006 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2003-12.2007 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2004-12.2007 |
| TOYOTA | Corolla Verso 2.0 D-4D | [1CD-FTV] | 01.2004-12.2009 |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
