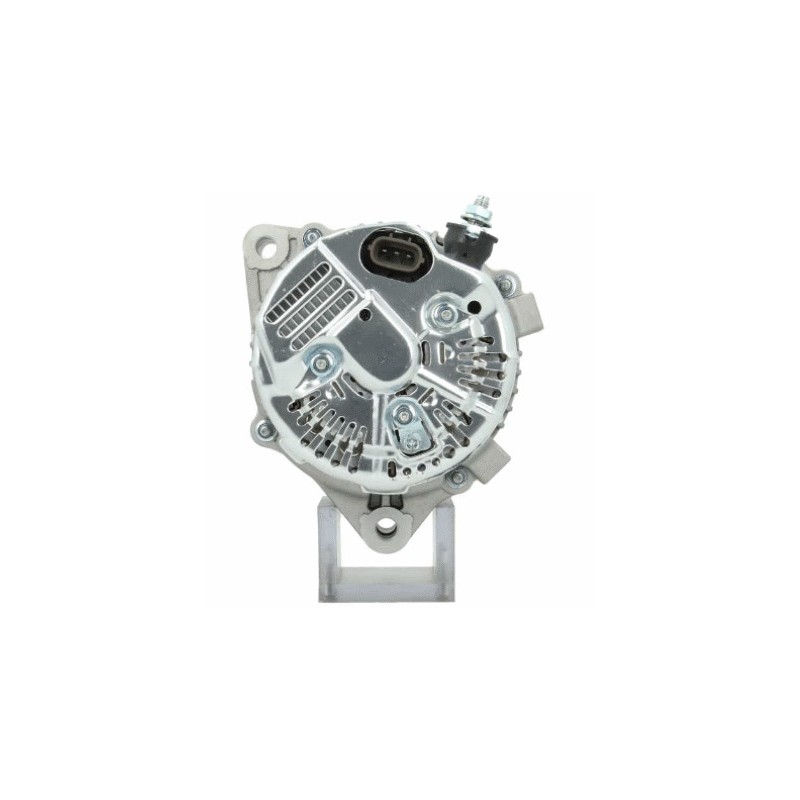

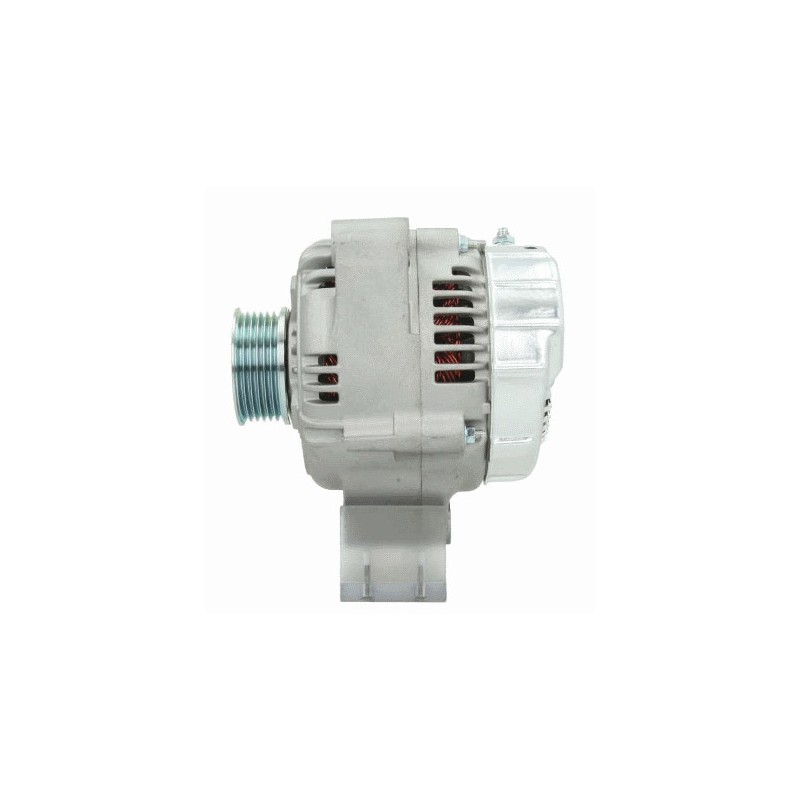

Alternator replacing DENSO 101211-7180 / 100211-6440 / 100211-6390 for TOYOTA
Alternator NEW for TOYOTA / LEXUS :
= DENSO 101211-7180 / 100211-6440 / 100211-6390
= DELCO REMY DRA0851
= LUCAS LRA02165
= TOYOTA 27060-50070 / 27060-50080 / 27060-50140 / 27060-50200
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 100
D = Bracket hole 10.50
G = Belt. adj. bracket hole 10.50
B = Width/holder arm 57.80
E = Belt. adj. brackethole pos. 10
H = Pulley dia. 60.00
A = Pulley dist. 89.50
Grooves/pulley 6
J = Radius 86.00
J = Radius 86.00

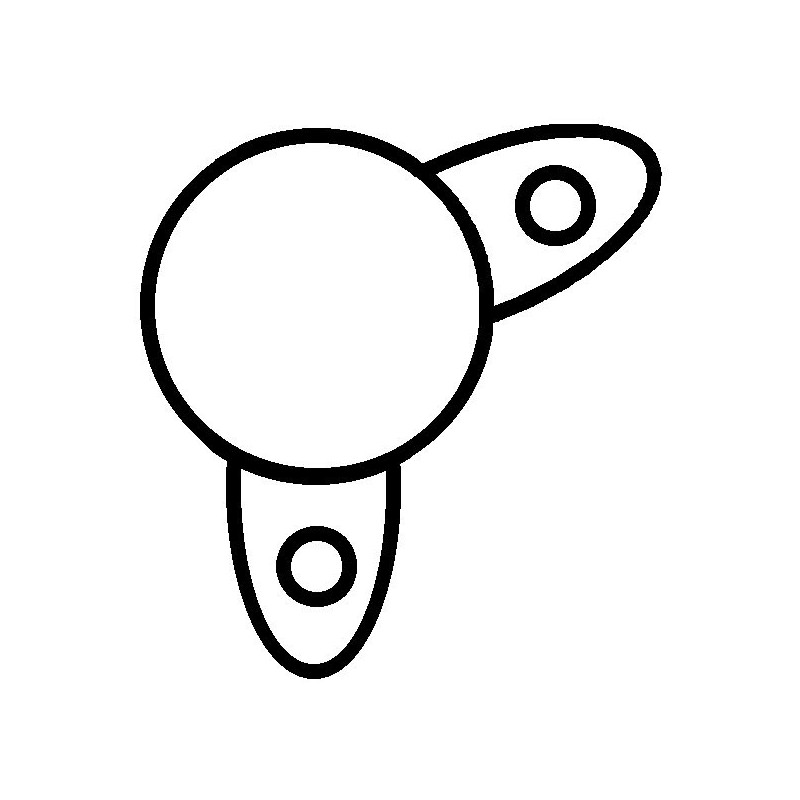

Position B + M8
Rotation Cr

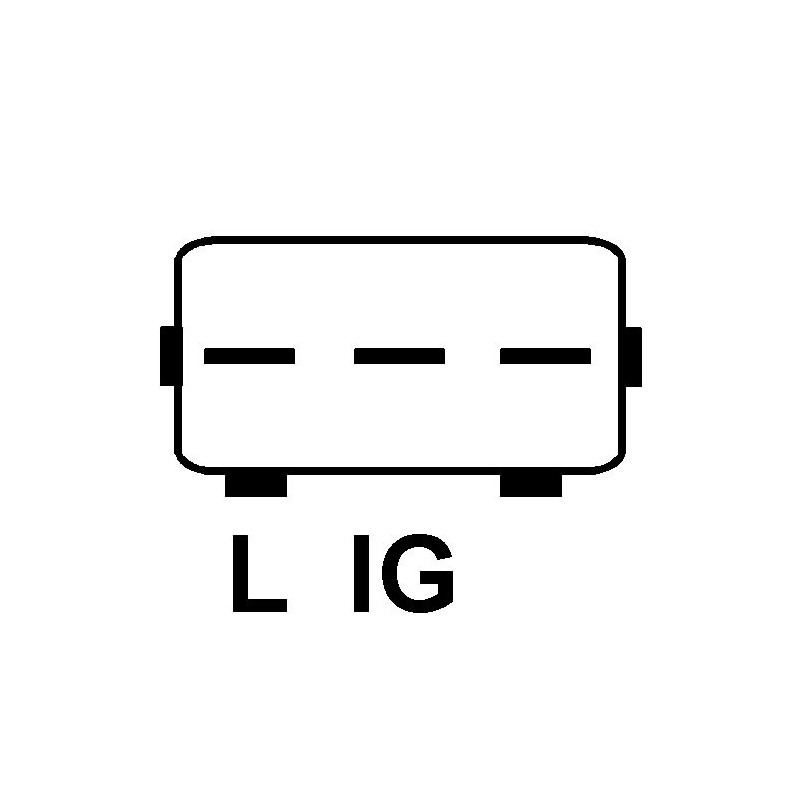

Plug no. 1 PL58
Fan If
Pulley Serpentine Pulley
R = Total length mm 186.00
generic brand
replacing :
| 1002116390 | DENSO |
| 1002116440 | DENSO |
| 1012117180 | DENSO |
| 1012117200 | DENSO |
| 13553N | WAI |
| 13553R | WAI |
| 13668 | Lester |
| 13668N | WAI |
| 13668R | WAI |
| 195908100 | PSH |
| 2706050070 | TOYOTA |
| 2706050080 | TOYOTA |
| 2706050140 | TOYOTA |
| 2706050200 | TOYOTA |
| 284619 | Elstock |
| 9090709F | Friesen |
| 930851 | EDR |
| ALT6093sa | Electrolog |
| ATA519 | ATK |
| DRA0851 | DELCO REMY |
| KTR391816200 | KTR |
| LRA02165 | LUCAS |
fits TOYOTA LEXUS :
- Tipo LS ( UCF10 ) from 12/1989 to 12/1994 245cc
- Tipo LS ( UCF20 ) from 12/1994 to 08/1997 264cv
- Tipo LS ( UCF20 ) from 09/1997 to 10/2000 284cv
- Tipo LS ( UCF20 ) from 09/1998 to 10/2000 276cv
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
