Alternator replacing DENSO 121000-0930 / 121000-0830 / 121000-0820
Alternator NEW for TOYOTA Dina / Hilace / Land cruiser
= DENSO 100210-3080 / 100210-2750 / 100210-2700 / 100210-2660
= TOYOTA 27020-54160 / 27020-54210 / 27030-54130 / 27030-54140 / 27030-54150 / 27030-54160
27030-54210
LE REGULATEUR CORRESPONDANT SE TROUVE SOUS LA REFERENCE W132111
NO CORE EXCHANGE NEEDED
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M 8 |
| B | Width/holder arm | 14.50 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 97.00 |
| H | Pulley dia. | 68.00 |
| A | Pulley dist. | 49.50 |
| i | Grooves/pulley | 2 |
| j | Radius | 88.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

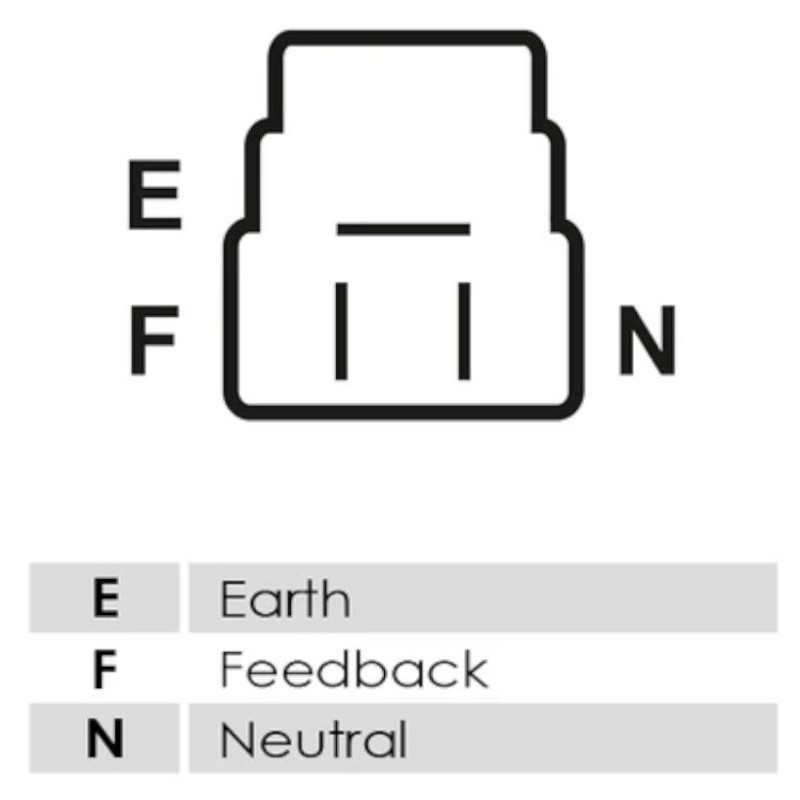

| o | Plug no. 1 | PL15 |
| R | Total length mm | 263.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 50 | |
Generic Brand
Replacing | |
|---|---|
| 100210-2600 | DENSO |
| 100210-2660 | DENSO |
| 100210-2700 | DENSO |
| 100210-2750 | DENSO |
| 100210-3080 | DENSO |
| 121000-0820 | DENSO |
| 121000-0830 | DENSO |
| 121000-0930 | DENSO |
| 27020-54160 | TOYOTA |
| 27020-54210 | TOYOTA |
| 27030-54130 | TOYOTA |
| 27030-54140 | TOYOTA |
| 27030-54150 | TOYOTA |
| 27030-54160 | TOYOTA |
| 27030-54210 | TOYOTA |
| ja193 | HC-PARTS |
| 0986036311 | BOSCH |
| 0986049840 | BOSCH |
| 1002102600 | DENSO |
| 1002102660 | DENSO |
| 1002102700 | DENSO |
| 1002102750 | DENSO |
| 1002103080 | DENSO |
| 1002103660 | DENSO |
| 1002103820 | DENSO |
| 1002103821 | DENSO |
| 111483 | Cargo |
| 12060342 | EuroTec |
| 12060343 | EuroTec |
| 12060354 | EuroTec |
| 12060355 | EuroTec |
| 1210000820 | DENSO |
| 1210000830 | DENSO |
| 1210000930 | DENSO |
| 195806055 | PSH |
| 20130103 | PRESTOLITE |
| 22070N | WAI |
| 22070R | WAI |
| 2702054160 | TOYOTA |
| 2702054210 | TOYOTA |
| 2703054130 | TOYOTA |
| 2703054140 | TOYOTA |
| 2703054150 | TOYOTA |
| 2703054160 | TOYOTA |
| 2703054210 | TOYOTA |
| 2703054253 | TOYOTA |
| 2703054263 | TOYOTA |
| 270842 | TOYOTA |
| 5331SP | Spidan |
| 5407 | Lester |
| 56062 | EAI |
| 8EL012427691 | HELLA |
| 90295448 | WILSON |
| 90295449 | WILSON |
| 9051247F | Friesen |
| 933064 | EDR |
| ALT6023sa | Electrolog |
| ALTH045 | UNIPOINT |
| ATA509 | ATK |
| ATA915 | ATK |
| DRA3064 | DELCO REMY |
| F042A0H045 | BOSCH |
| HJA1270IR | HC |
| HJA193IR | HC |
| JA1270IR | HC |
| JA193 | HC |
| JA193IR | HC |
| KTR391612110 | KTR |
| L61470 | ATL |
| LRA01070 | LUCAS |
fits:
| Brand | Model | Tipo | Year |
| TOYOTA | Crown 2.4 D | 01.1983-12.1988 | |
| TOYOTA | Dyna 100 2.4 Diesel | [2L] | 01.1984-05.1995 |
| TOYOTA | Dyna 150 2.8 Diesel | [3L] | 08.1985-05.1995 |
| TOYOTA | Hi-Lux 2.2 D | [2L] | 01.1983-12.1989 |
| TOYOTA | Hi-Lux 2.4 D | [2L] | 01/01/84 |
| TOYOTA | Hiace 2.2 Diesel | [L] | 01.1979-03.1983 |
| TOYOTA | Hiace 2.2 Diesel | [L] | 03.1983-11.1989 |
| TOYOTA | Hiace 2.4 Diesel | [2L] | 05.1984-11.1989 |
| TOYOTA | Hiace 2.4 Diesel | [2L] | 08.1984-08.1989 |
| TOYOTA | Hiace 2.4 Diesel 4WD | [2L] | 01.1987-01.1988 |
| TOYOTA | Land Cruiser 2.4 Diesel | [2L] | 11.1984-10.1985 |
| TOYOTA | Land Cruiser 2.4 TD | [2L-T] | 10.1985-05.1990 |
| VW | Taro 2.4 D | [2L] | 01.1989-12.1997 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
