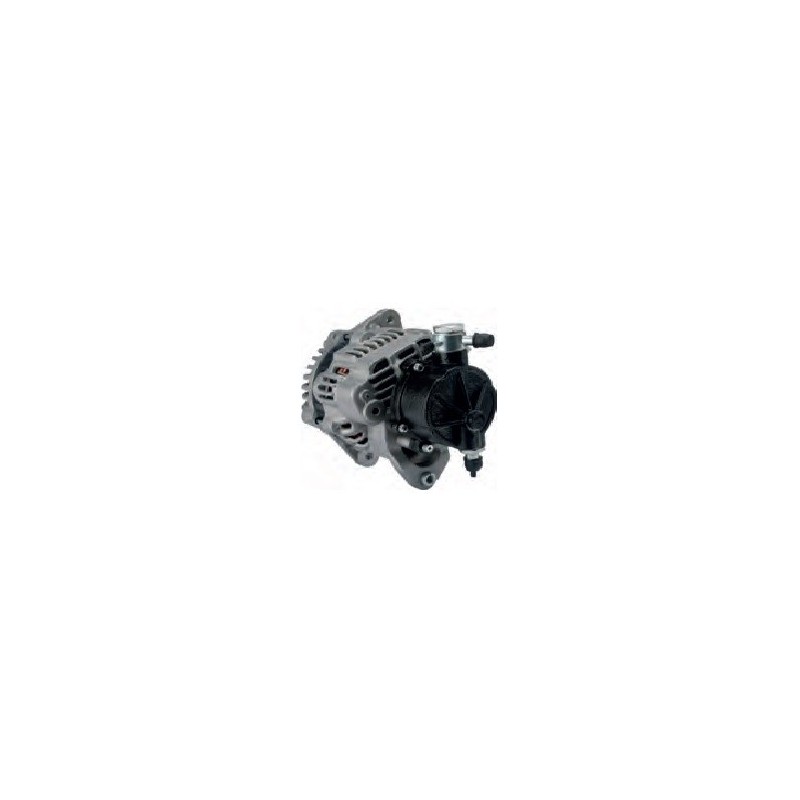

Alternator replacing MITSUBISHI A3TN2581 / A003TN2581

Information:

Rotation Cr

Amp 100

Voltage 14

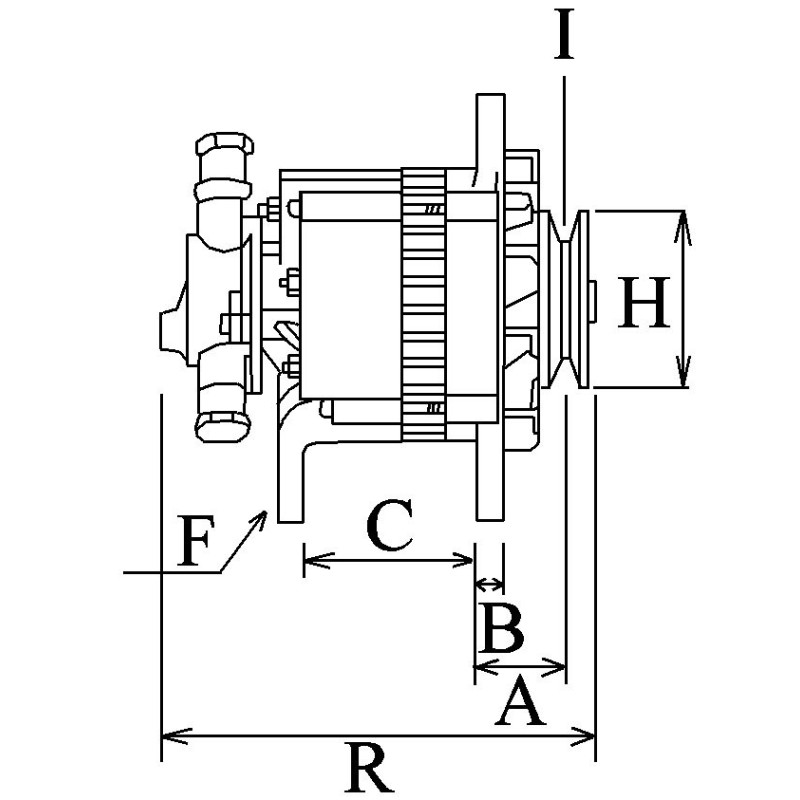

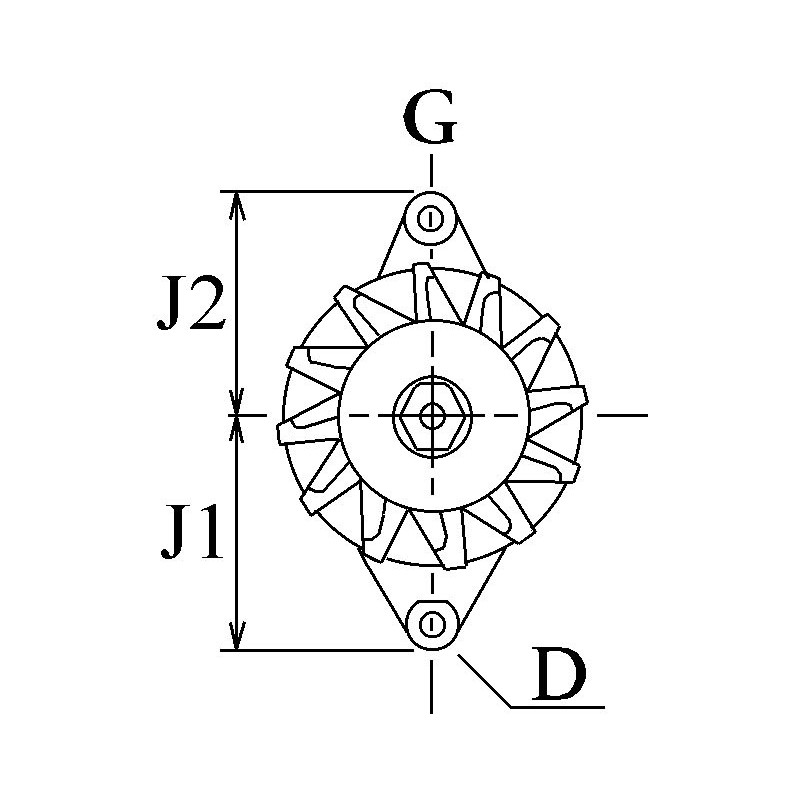

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 57

C = Mount. bracket dist 82.00

J = Radius 86.00

J = Radius 2 86.00

Position B + M8

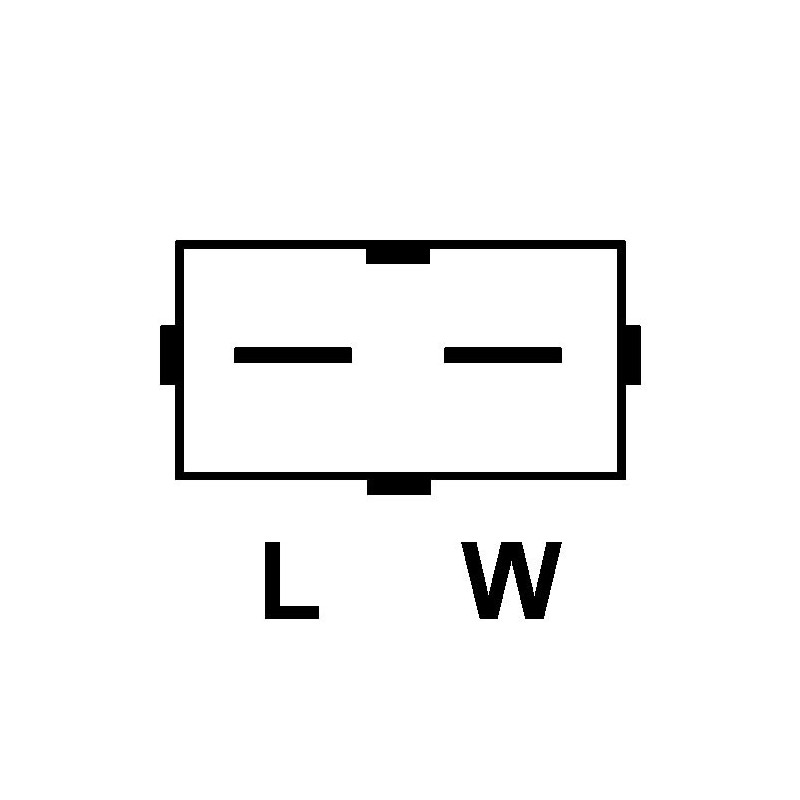

Plug no. 1 PL56

Fan If

Type regulator Ir

Info produit Bn

R = Total length mm 224.00

Generic Brand

                   NO CORE EXCHANGE NEEDED

                                     TWO YEARS WARRANTY
