Alternator replacing HITACHI LR225-67 / LR225-65P / LR225-65E / LR225-65C

Information:

Voltage 28

Amp 25

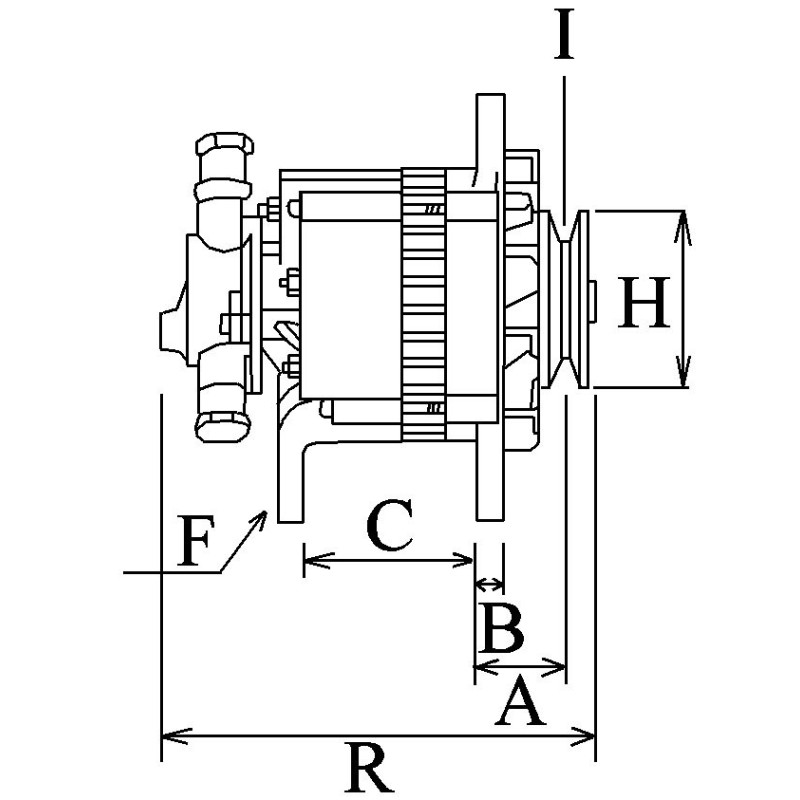

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.67

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.12

H = Pulley dia. 82.20

A = Pulley dist. 42.10

Grooves/pulley 2

J = Radius 89.45

J = Radius 83.20

Position B + M6

Rotation Cr

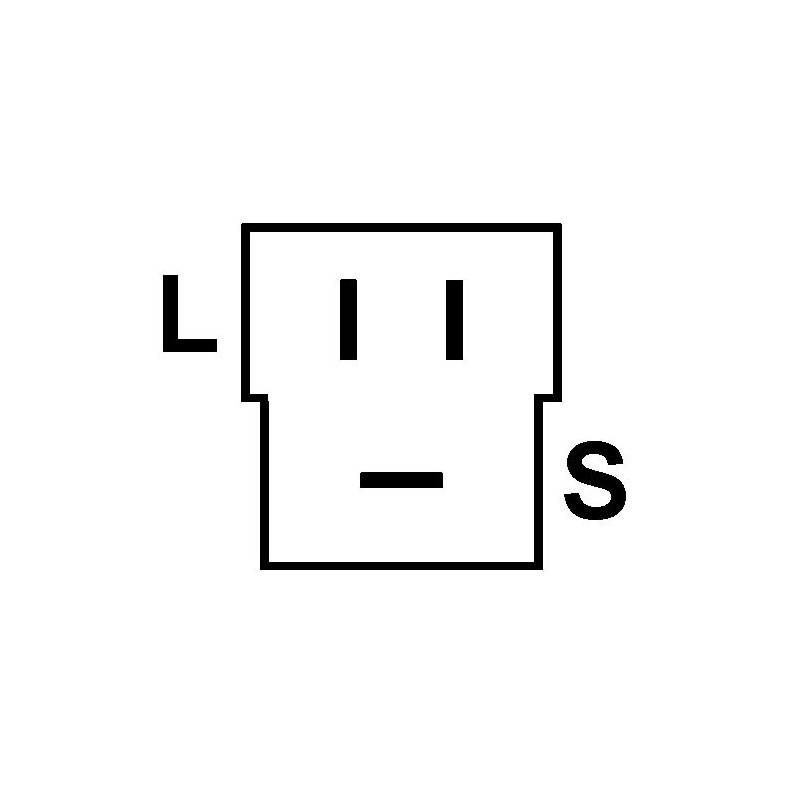

Plug no. 1 PL04

Fan Ef

Pulley Pulley double

R = Total length mm 248.00

generic brand

= DELCO REMY DRA3124N

= HELLA 8EL726332-001

= HITACHI LR225-67P / LR225-67B / LR225-67 / LR225-65P / LR225-65E / LR225-65C

LR225-65B / LR225-65 / LR225-60 / LR225-403

= LUCAS LRA02424

= NISSAN 23099-c6802 / 23099-c6804 / 23099-c6805 / 23099-c6806 / 23099-c6808

23099-c8600 / 23099-r8111

= VALEO 437812

                                                    NO CORE EXCHANGE NEEDED

                                                                                      TWO YEARS WARRANTY
