Alternator replacing 101211-0030 / 100211-9980 / 100211-7770 / 100211-3310
Alternator for HONDA
= DENSO 100211-7811 / 100211-7810 / 100211-7770 / 100211-3311 100211-3310 / 100211-9980 / 101211-0030 / 101211-0033
= HONDA 31100-pk2-003 / 31100-pk2-0031 / 31100-pk2-004 / 31100-pk2-0040 / 31100-pk2-0146 / 31100-pk3-a0100 / 31100-pk3-a0110 / 31100-pk3-a020 / chk88 / cjk88 / cjn85 / cjn89
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14 - Ampèrage 70
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 56.50 |
| E | Belt. adj. brackethole pos. | 52 |
| H | Pulley dia. | 67.30 |
| A | Pulley dist. | 91.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 80.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

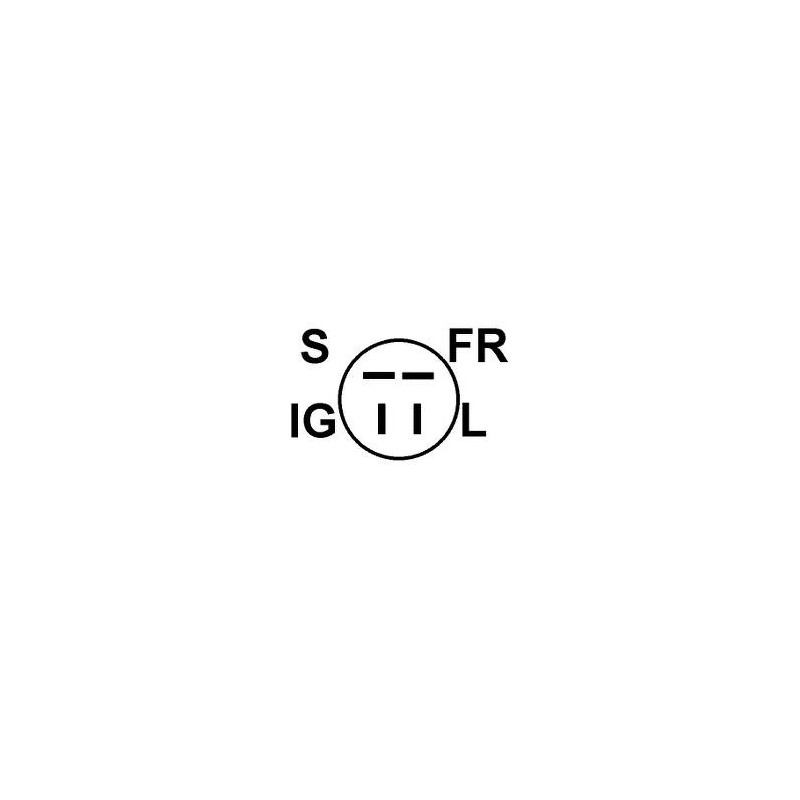

| o | Plug no. 1 | PL14 |
| R | Total length mm | 166.00 |
| DRA3437 | DELCO REMY |
| 100211-3310 | DENSO |
| 100211-3311 | DENSO |
| 100211-7770 | DENSO |
| 100211-7810 | DENSO |
| 100211-7811 | DENSO |
| 100211-9980 | DENSO |
| 101211-0030 | DENSO |
| 101211-0033 | DENSO |
| 31100-pk2-003 | HONDA |
| 31100-pk2-0031 | HONDA |
| 31100-pk2-004 | HONDA |
| 31100-pk2-0040 | HONDA |
| 31100-pk2-0146 | HONDA |
| 31100-pk3-a0100 | HONDA |
| 31100-pk3-a0110 | HONDA |
| 31100-pk3-a020 | HONDA |
| chk88 | HONDA |
| cjk88 | HONDA |
| cjn85 | HONDA |
| cjn89 | HONDA |
| ja772ir | HC-PARTS |
| TRA027 |
generic brand
| 1002113311 | DENSO |
| 1002117770 | DENSO |
| 1002117810 | DENSO |
| 1002117811 | DENSO |
| 1002118760 | DENSO |
| 1002118780 | DENSO |
| 1002119980 | DENSO |
| 1012110030 | DENSO |
| 1012115310 | DENSO |
| 1012115830 | DENSO |
| 125513070 | PSH |
| 13294 | Plug + div |
| 13294N | Lester |
| 281841 | Elstock |
| 31100PK2031 | HONDA |
| 437803 | VALEO |
| 90295125 | WILSON |
| AHA369 | ATK |
| CJK88 | HONDA |
| CJN85 | HONDA |
| CJN89 | HONDA |
| CJP79 | HONDA |
| CJS84 | HONDA |
| DRA3437 | DELCO REMY |
| JA772IR | HC |
| TRA207 | TWA |
fitsHONDA prelufrom / legend engine essence :
HONDA LEGEND I (HS, KA) 2.7 i 24V (KA4) (1988-1990)
HONDA PRELUDE III (BA) 2.0 i EX 16V (BA2) (1986-1987)
HONDA PRELUDE III (BA) 2.0 i EX 16V (1986-1987)
HONDA PRELUDE III (BA) 2.0 i EX 16V (1987-1990)
HONDA PRELUDE III (BA) 2.0 EX (BA4) (1987-1992)
HONDA PRELUDE III (BA) 2.0 i EX 16V (BA4) KAT (1987-1992)
HONDA PRELUDE III (BA) 2.0 (BA4) (1987-1992)
HONDA PRELUDE III (BA) 2.0 i EX 16V (BA4) (1990-1992)
