Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 55 | |

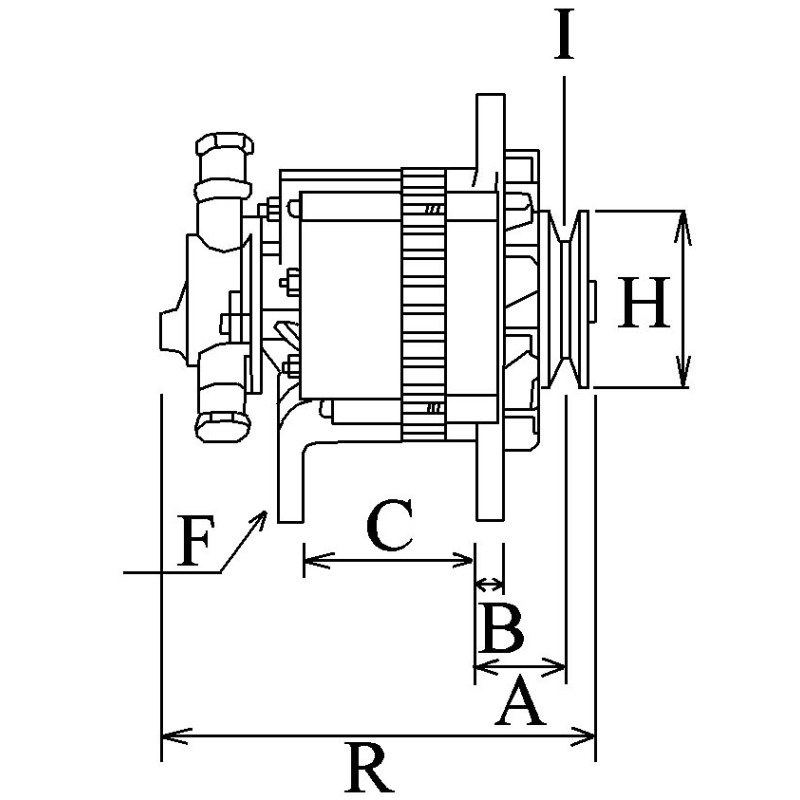

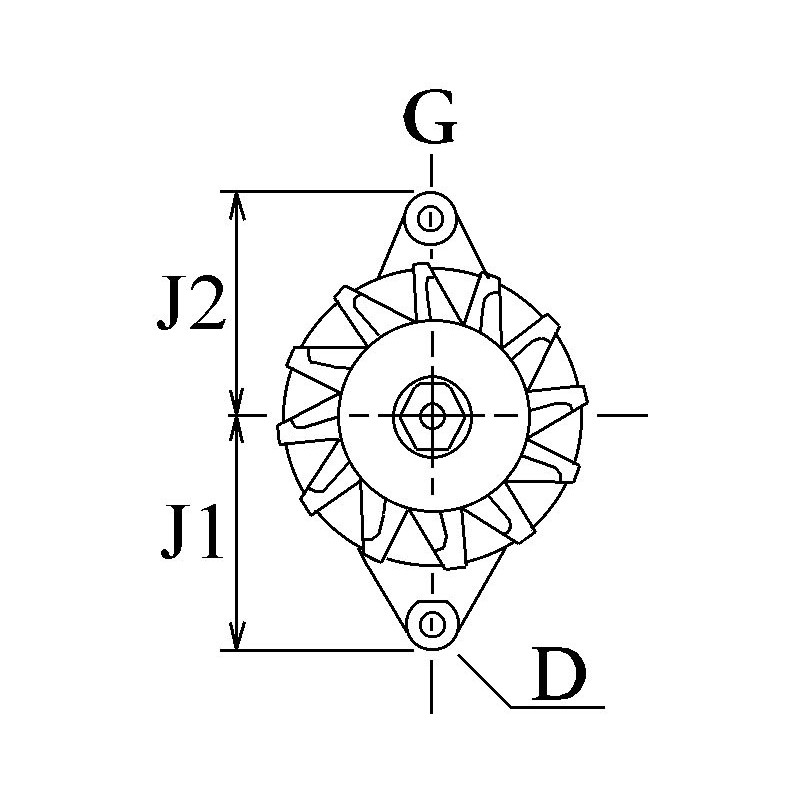

Physical Information | ||
|---|---|---|
| A | Pulley dist. | 52.00 |
| B | Width/holder arm | 13.50 |
| C | Mount. bracket dist | 97.00 |
| D | Bracket hole | 10.00 |
| E | Belt. adj. brackethole pos. | 2 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 78.50 |
| I | Grooves/pulley | 2 |
| J | Radius | 87.50 |
| J | Radius 2 | 91.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 5 |
| N | Rotation | Cr |

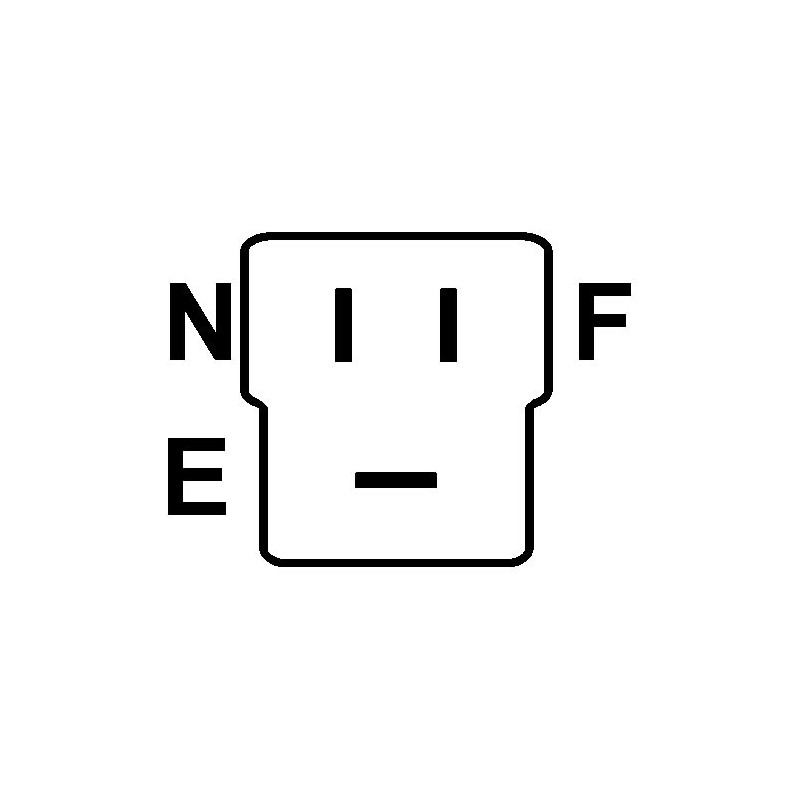

| O | Plug n° 1 | PL15 |
| R | Total length mm | 280.00 |
InformationCatalogues | ||
|---|---|---|
| Pulley | Pulley double | |
| Relay | w/o | |
| Vac. pump | Yes | |
| For | VW, TOYOTA | |
| Remarks | Regulator: w132627. | |
generic brand
replacing
Replacing | |
|---|---|
| 100210-3270 | DENSO |
| 100210-3350 | DENSO |
| 100210-3360 | DENSO |
| 100210-3400 | DENSO |
| 100210-3460 | DENSO |
| 100210-3580 | DENSO |
| 100210-3660 | DENSO |
| 100210-3680 | DENSO |
| 100210-3760 | DENSO |
| 100210-3770 | DENSO |
| 100210-3810 | DENSO |
| 100210-3820 | DENSO |
| 100210-3821 | DENSO |
| 100210-3840 | DENSO |
| 112054 | Cargo |
| 121000-8230 | DENSO |
| 27020-54250 | TOYOTA |
| 27020-54351 | TOYOTA |
| 27020-54352 | TOYOTA |
| 27020-54353 | TOYOTA |
| 27020-54354 | TOYOTA |
| 27020-54383 | TOYOTA |
| 27030-54190 | TOYOTA |
| 27030-54241 | TOYOTA |
| 27030-54242 | TOYOTA |
| 27030-54243 | TOYOTA |
| 27030-54244 | TOYOTA |
| 27030-54250 | TOYOTA |
| 27030-54251 | TOYOTA |
| 27030-54252 | TOYOTA |
| 27030-54253 | TOYOTA |
| 27030-54260 | TOYOTA |
| 27030-54261 | TOYOTA |
| 27030-54262 | TOYOTA |
| 27030-54263 | TOYOTA |
| J2702054352 | VOLKSWAGEN |
| J2702054700 | VOLKSWAGEN |
| JA777 | HC-PARTS |
fits:
| Model | LITRES | Tipo of Gas | Start build | End built | Tipo engine | engine | KW | chevaux | châssis | cm3 |
| Dyna 100 | 2.4 | Diesel | 1995 05 | 2001 07 | 2L | Diesel | 58 | 79 | Pick-up | 2446 |
| Land Cruiser | 2.4 | Diesel | 1985 10 | 1990 05 | 2L-T | TD | 63 | 86 | 2446 | |
| Dyna | 2.4 | Diesel | 1984 01 | 1995 05 | 2L | Diesel | 53 | 72 | 2445 | |
| Dyna | 2.8 | Diesel | 1985 08 | 1995 05 | 3L | Diesel | 58 | 79 | 2778 | |
| Hiace | 2.4 | Diesel | 1984 08 | 1989 08 | 2L | Diesel | 55 | 75 | De bus | 2446 |
| Hiace | 2.2 | Diesel | 1983 03 | 1989 11 | L | Diesel | 49 | 67 | De bus | 2173 |
| Hiace | 2.4 | Diesel | 1987 01 | 1988 01 | 2L | Diesel | 54 | 73 | De bus | 2446 |
| Hiace | 2.2 | Diesel | 1983 03 | 1989 11 | L | Diesel | 49 | 67 | Boîte/Trucksnette | 2173 |
| Hiace | 2.4 | Diesel | 1984 05 | 1989 11 | 2L | Diesel | 55 | 75 | Boîte/Trucksnette | 2446 |
| Hiace | 2.4 | Diesel | 1989 08 | 1995 08 | 2L | Diesel | 55 | 75 | De bus | 2446 |
| Hiace | 2.2 | Diesel | 1979 01 | 1983 03 | L | Diesel | 46 | 63 | Boîte/Trucksnette | 2173 |
| Hilux | 2.4 | Diesel | 1988 08 | 2005 07 | 2L | Diesel | 61 | 83 | Pick-up | 2446 |
| Hilux | 2.4 | Diesel | 1988 08 | 2005 07 | 2L | Diesel | 61 | 83 | Pick-up | 2446 |
| aro | 2.4 | Diesel | 1994 07 | 1997 03 | 2L | Diesel | 58 | 79 | Pick-up | 2446 |
| Taro | 2.4 | Diesel | 1991 09 | 1994 07 | 2L | Diesel | 59 | 80 | Pick-up | 2446 |
| Taro | 2.4 | Diesel | 1989 04 | 1997 03 | 2L | Diesel | 61 | 83 | Pick-up | 2446 |
| Taro | 2.4 | Diesel | 1994 07 | 1997 03 | 2L | Diesel | 58 | 79 | Pick-up | 2446 |
| Taro | 2.4 | Unleaded | 1989 06 | 1997 03 | 22R | 84 | 114 | Pick-up | 2366 | |
| Taro | 2.4 | Diesel | 1989 06 | 1997 03 | 2L | Diesel | 61 | 83 | Pick-up | 2446 |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
