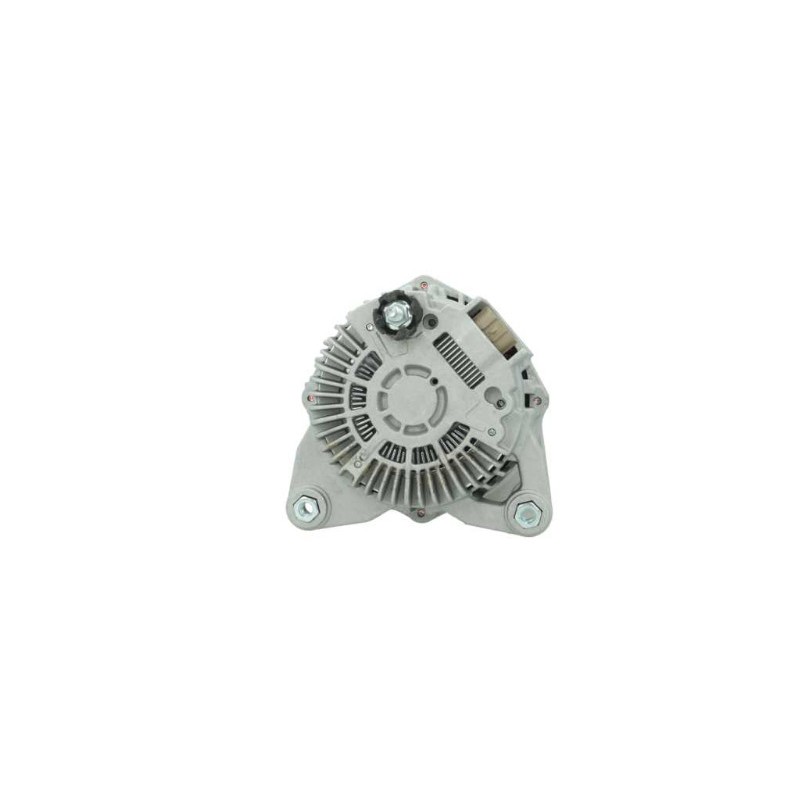

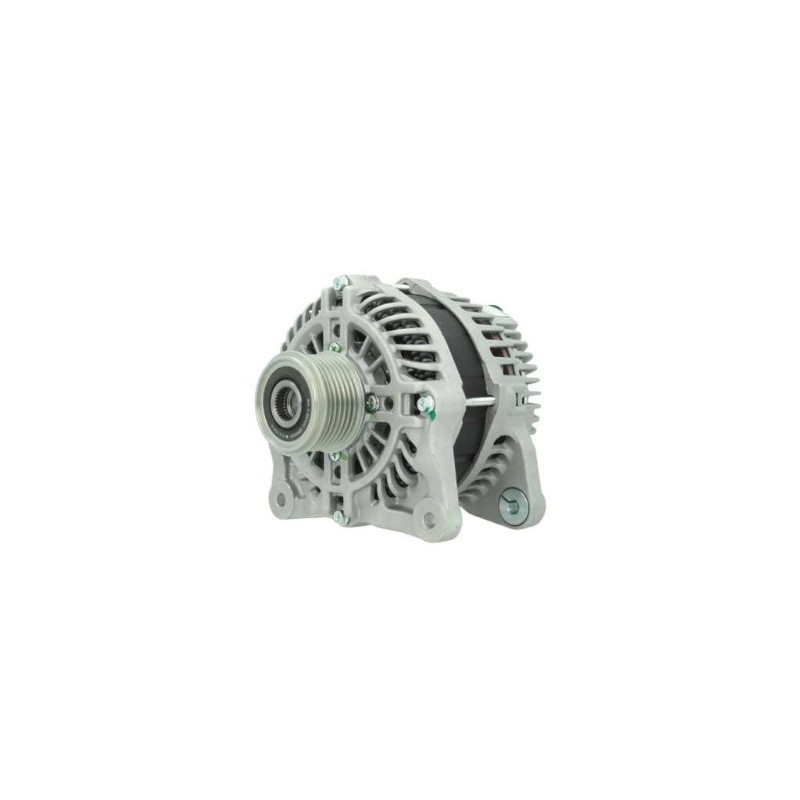

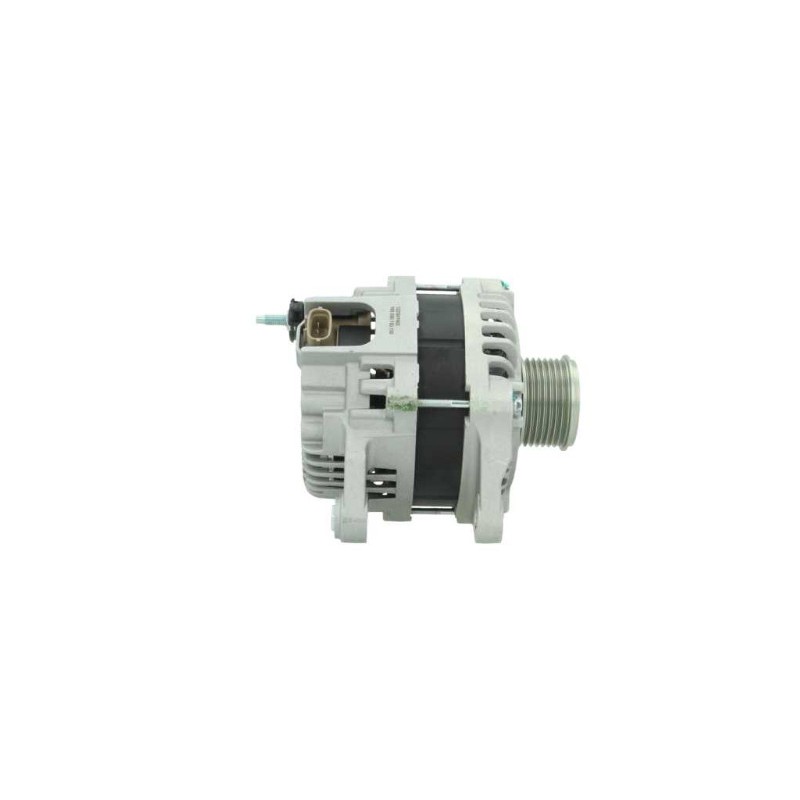

Alternator replacing MITSUBISHI A002TX2181 / A2TX2181 / A2TX2191ZE
Alternator NEW replacing MITSUBISHI A002TX2181 / A2TX2181 / A2TX2191ZE
= NISSAN 23100-1KA1B / 23100/BR01A
= 0986083040 / DRA1432 / LRA03695
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 58.50 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 33.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

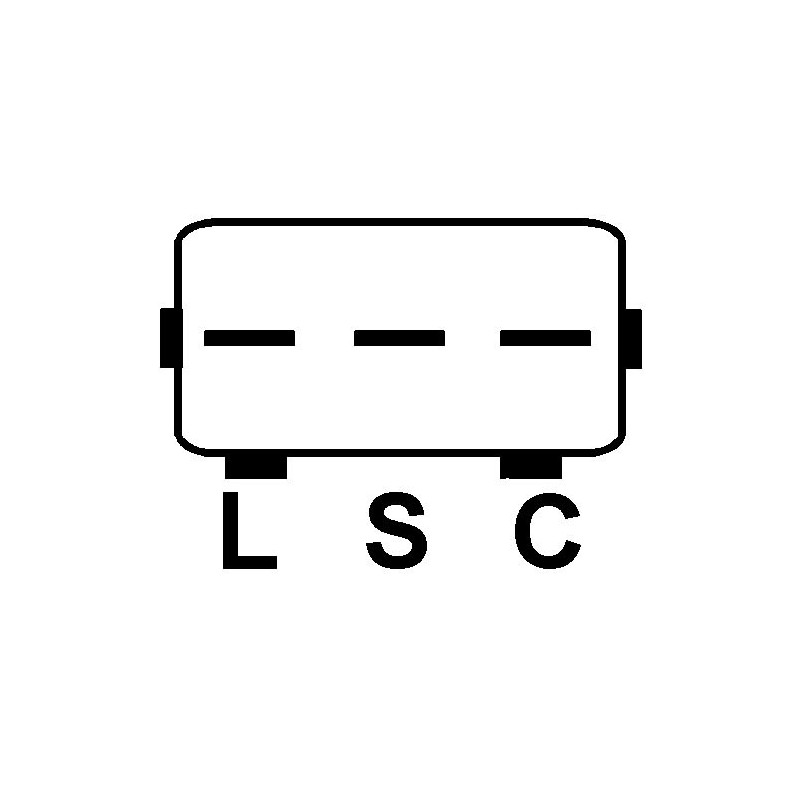

| o | Plug no. 1 | PL163 |
| R | Total length mm | 188.00 |
Replacing | |
|---|---|
| 23100-1KA1B | NISSAN |
| 23100-BR01A | NISSAN |
| A002TX2181 | MITSUBISHI |
| A2TX2181 | MITSUBISHI |
| A2TX2191ZE | MITSUBISHI |
| ca2182ir | HC-PARTS |
Generic brand
Mounted on : NISSAN
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Juke | Juke | 1.6 | Unleaded | 2010 06 | - | HR16DE | 86 | 117 | Hayon | 1598 | 4 | ||||
| Juke | Juke | 1.6 | Électrique/essence | 2012 01 | - | HR16DE | LPG | 85 | 116 | Hayon | 1598 | 4 | F15 | Med start / stop | |
| Juke | Juke | 1.6 | Unleaded | 2013 01 | - | HR16DE | 69 | 94 | Hayon | 1598 | 4 | ||||
| Qashqai | Qashqai | 1.6 | Unleaded | 2007 02 | - | HR16DE | 84 | 114 | MPV | 1598 | 4 | ||||
| Qashqai | Qashqai | 1.6 | Unleaded | 2010 11 | - | HR16DE | 86 | 117 | 1598 | 4 | J10, JJ10 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
