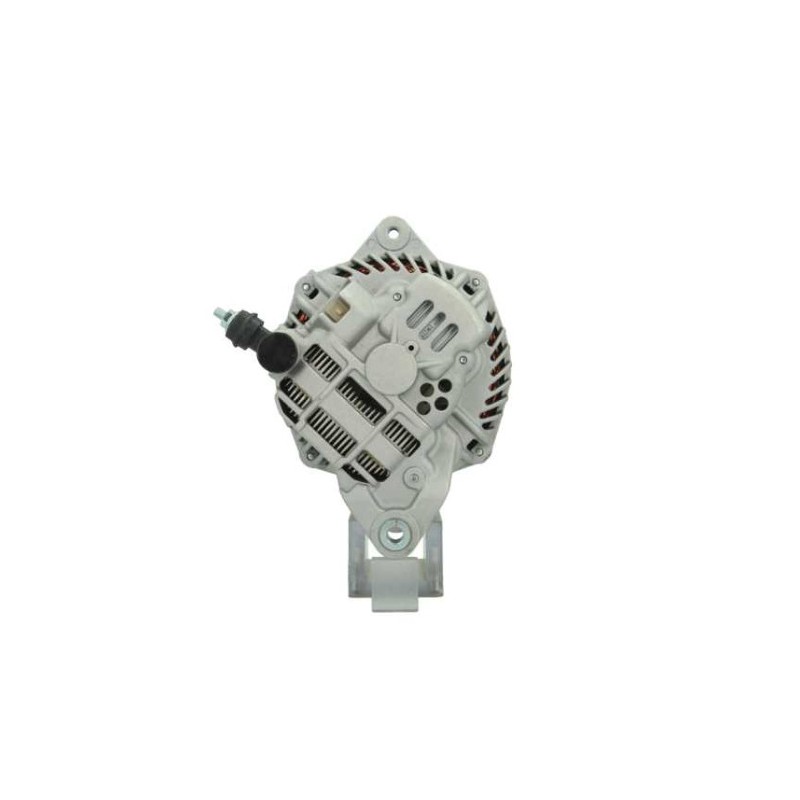

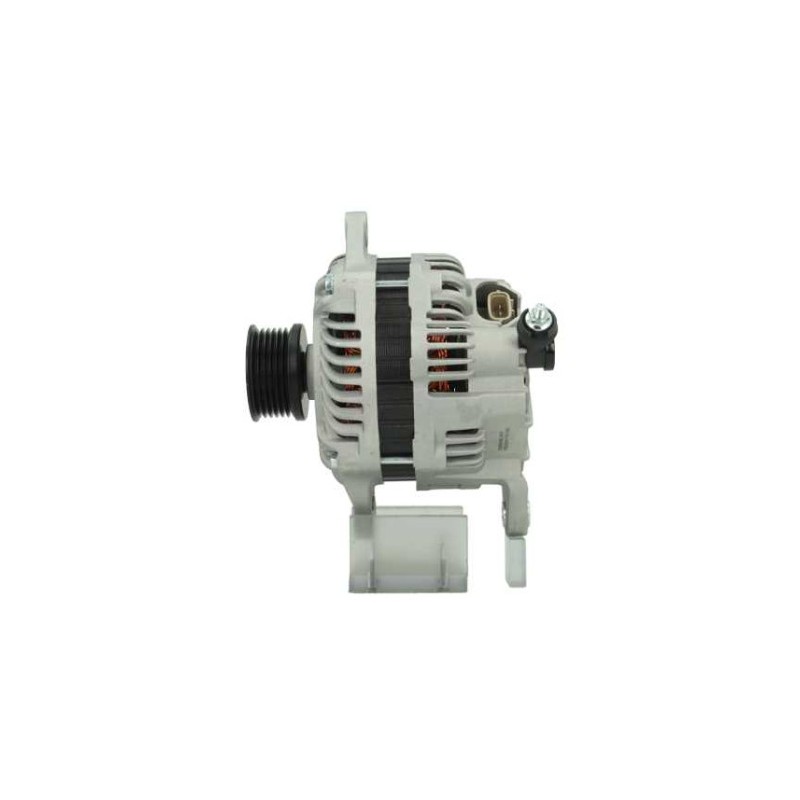

Alternator replacing A003TG0491 / A003TG4291 / 23700-AA521 / 23700-AA522
Alternator NEW replacing 23700-AA510 / 23700-AA520 / 23700-AA521 / 23700-AA522
A3TG0491 / A3TG4291 / DRA0366 / LR1100733
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 46.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist | 80.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 54.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 90.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 45 |
| N | Rotation | Cr |

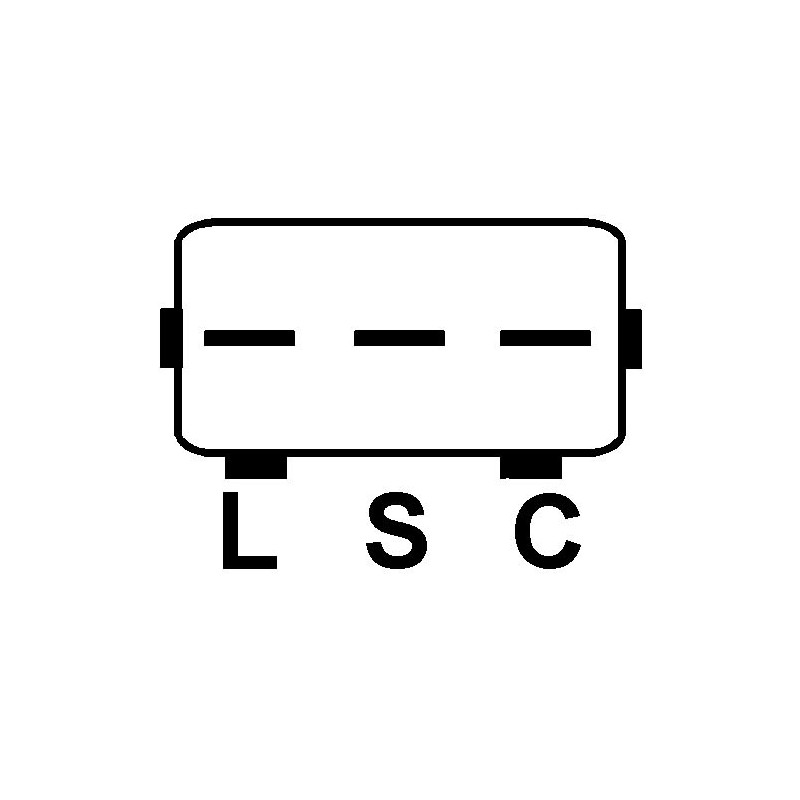

| O | Plug n° 1 | PL163 |
| R | Total length mm | 168.00 |
Replacing | |
|---|---|
| 23700-AA510 | SUBARU |
| 23700-AA520 | SUBARU |
| 23700-AA521 | SUBARU |
| 23700-AA522 | SUBARU |
| 23700-AA570 | SUBARU |
| A003TG0491 | MITSUBISHI |
| A003TG0591 | MITSUBISHI |
| A003TG4291 | MITSUBISHI |
| A3TG0491 | MITSUBISHI |
| A3TG0491A | MITSUBISHI |
| A3TG0591 | MITSUBISHI |
| A3TG4291 | MITSUBISHI |
| CA2084IR | HC-PARTS |
| 11226 | EAI |
| 11226N | WAI |
| 11226R | WAI |
| 115453 | Cargo |
| 12060971 | EuroTec |
| 175510110 | PSH |
| 23700AA440 | SUBARU |
| 23700AA520 | SUBARU |
| 23700AA521 | SUBARU |
| 23700AA522 | SUBARU |
| 23700AA570 | SUBARU |
| 284928 | Elstock |
| 90273314 | WILSON |
| 930366 | EDR |
| A003TG0491 | MITSUBISHI |
| A003TG4291 | MITSUBISHI |
| A3TG0491 | MITSUBISHI |
| A3TG4291 | MITSUBISHI |
| CA2084IR | HC |
| DRA0366 | DELCO REMY |
| LR1100733 | HITACHI |
| LRA02810 | LUCAS |
| TRA175 | TWA |
Generic Brand
fits:
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| SUBARU | Forester 2.0 X | [EJ204] | 09.2005- | |
| SUBARU | Forester 2.5 | [EJ25] | 12.2003- | |
| SUBARU | Forester 2.5 XT | [EJ255] | 09.2005- | |
| SUBARU | Impreza 2.0 R | [EJ204] | 09.2005- | |
| SUBARU | Impreza 2.0 R | [EJ20] | 09.2005- | |
| SUBARU | Impreza 2.5 AWD | [EJ257] | 07.2011-12.2012 | |
| SUBARU | Impreza 2.5 AWD | [EJ257] | 10.2011-12.2012 | |
| SUBARU | Impreza 2.5 AWD | [EJ257] | 01.2013- | |
| SUBARU | Impreza 2.5 WRX | [EJ255] | 09.2005- | |
| SUBARU | Impreza 2.5 WRX S AWD | [EJ255] | 02.2009-12.2010 | |
| SUBARU | Impreza 2.5 WRX STi | [EJ257] | 09.2005- | |
| SUBARU | Impreza 2.5 WRX STI 330S AWD | [EJ257] | 05.2009-12.2010 | |
| SUBARU | Legacy 2.0 | [EJ20] | 09.2003- | |
| SUBARU | Legacy 2.5 | [EJ25] | 09.2003- | |
| SUBARU | Outback 2.5 | [EJ25D] | 11.2003- |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
