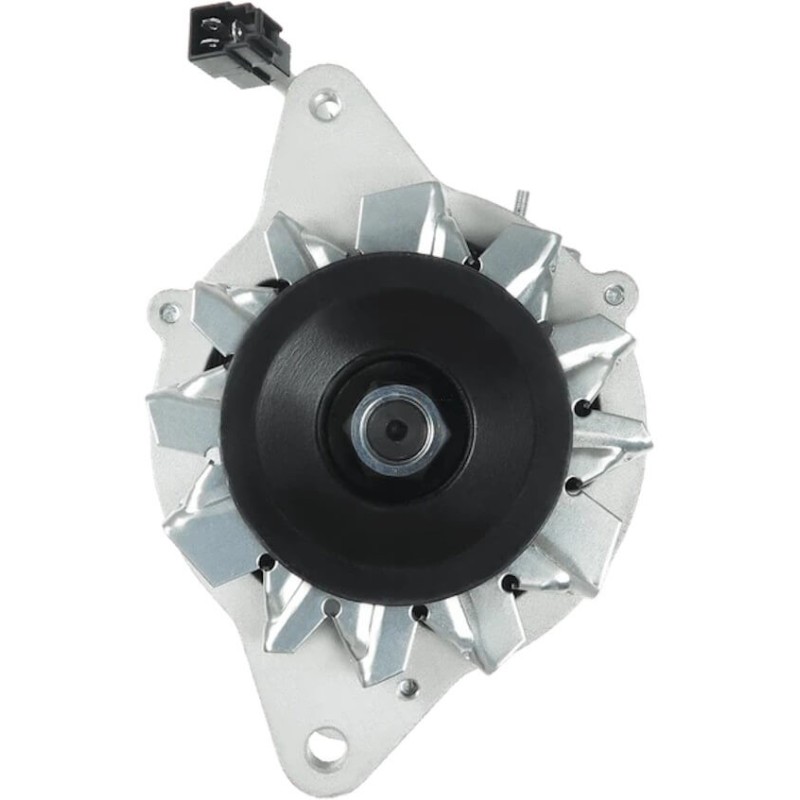

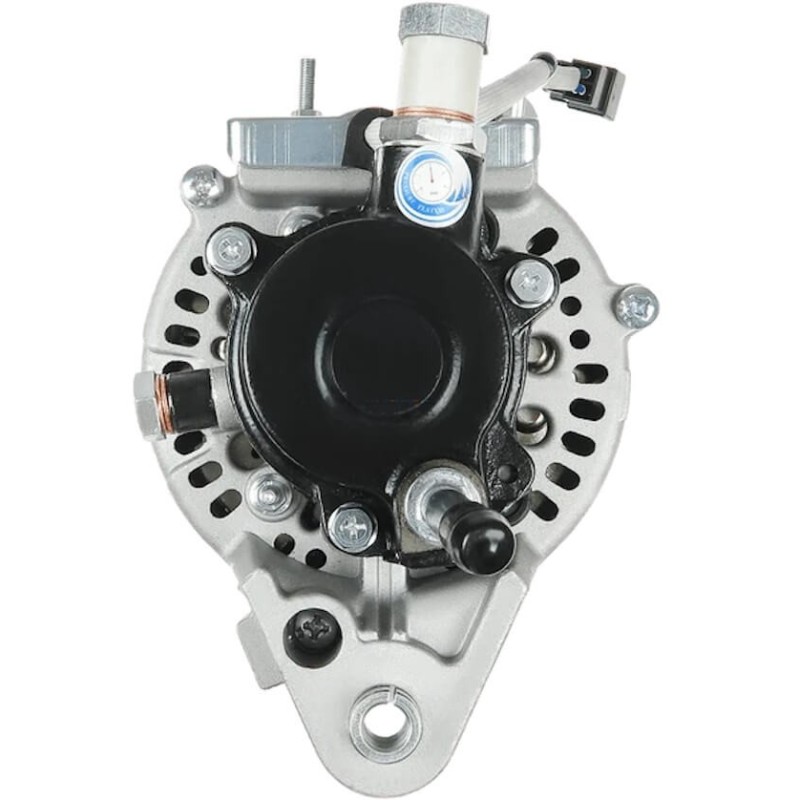

Alternator for TOYOTA Land cruiser 60 ( J6 ) 4,0 diesel
it is very important to check the condition of the regulator before fitting the new alternator.
Information:
Rotation Cr
Amp 25
Voltage 28

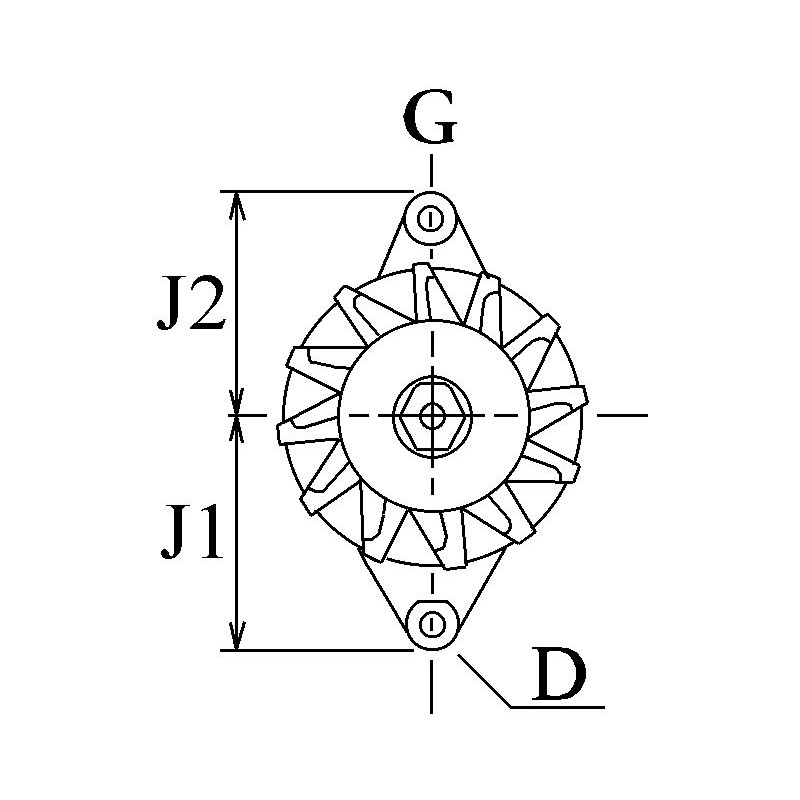

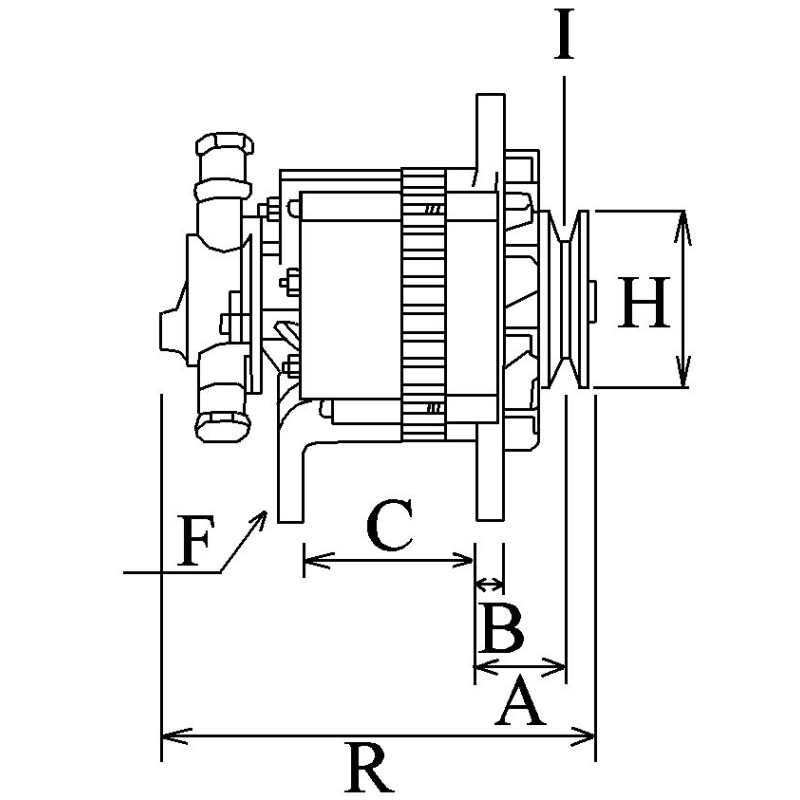

D = Bracket hole 10.50
G = Belt. adj. bracket hole M8
B = Width/holder arm 14.00
E = Belt. adj. brackethole pos. 55
C = Mount. bracket dist 106.00
H = Pulley dia. 84.40
A = Pulley dist. 65.00
Grooves/pulley 1
J = Radius 82.00
J = Radius 2 90.00
Position B + M6

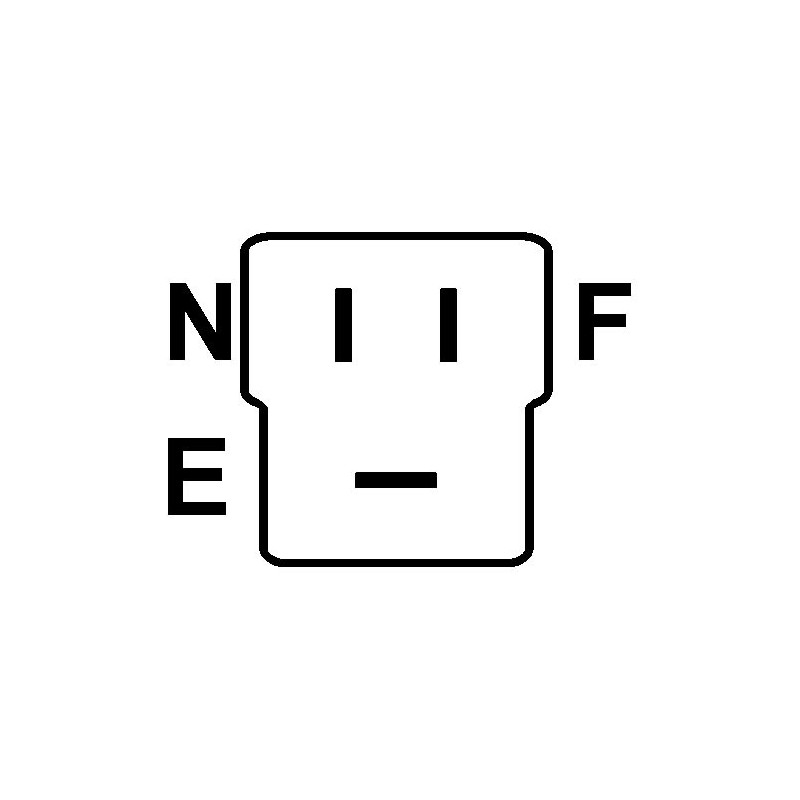

Plug no. 1 PL15
Fan Ef
Pulley Pulley
Tipo regulator Without
generic brand
replacing
| 1002102302 | Denso |
| 1002102980 | Denso |
| 1210000041 | Denso |
| 1210001770 | Denso |
| 196802025 | PSH |
| 2702068040 | Toyota |
| 2702068130 | Toyota |
| 2703068040 | Toyota |
| 2703068120 | Toyota |
| 2706068130 | Toyota |
| 470884 | Elstock |
| 9712109004 | Denso |
| 9712109177 | Denso |
| ALT30216 | Wood Auto |
| DRA3748 | Remy |
| JA1125 | HC |
| LRA02391 | Lucas |
| LRA02392 | Lucas |
| LRA2391 | Lucas |
| WOOALT30216 | Wood Auto |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
