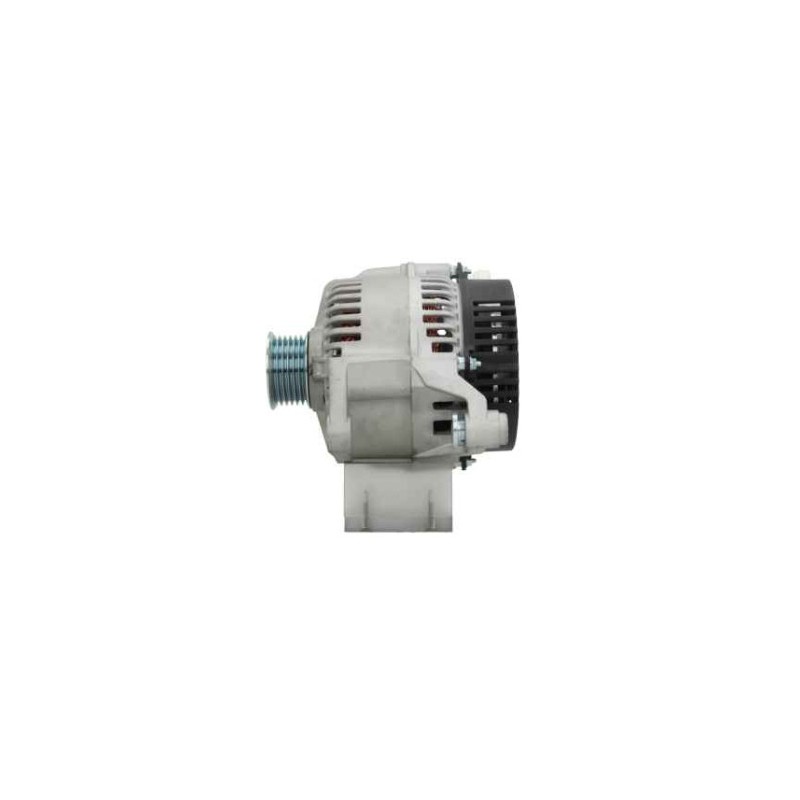

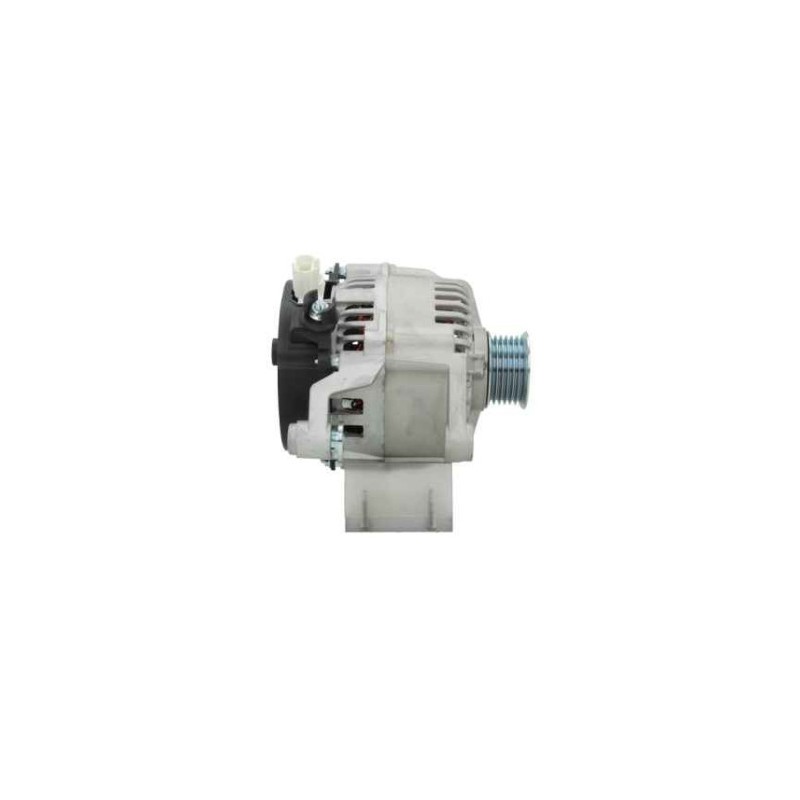

Alternator replacing 102211-8030 / 102211-8031 / 1097304 / 1406099 / 63321678
Alternator NEW replacing :
DENSO102211-8030, 102211-8031, FORD 1301496, 98AB-10300-DA, 98AB-10300-DB, 98AB-10300-DC, 98AB-10300-DD, 98AB-10300-DE, 98AB-10300-DF, 98AB-10300-DG, 98AB-10300-DH, 98AB-10300-DJ, R98AB-10300-DE1
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
| Voltage | 14 | |
| Amp. | 80 | |

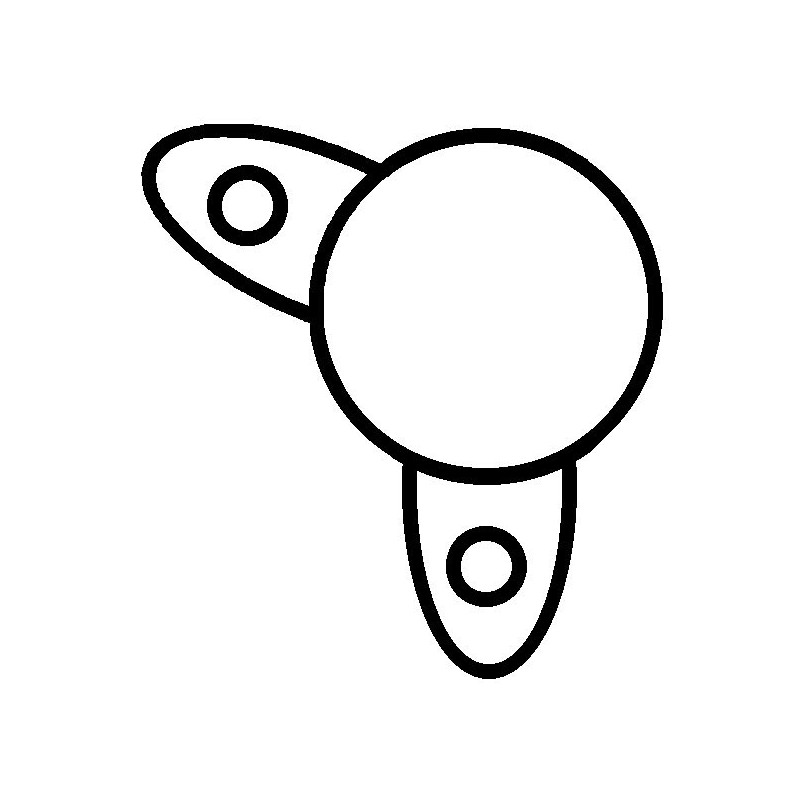

Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 34.00 |
| B | Width/holder arm | 13.80 |
| C | Mount. bracket dist | 62.40 |
| D | Bracket hole | 8.10 |
| E | Belt. adj. brackethole pos. | 50 |
| G | Belt. adj. bracket hole | 8.10 |
| H | Pulley dia. | 48.50 |
| I | Grooves/pulley | 6 |
| J | Radius | 81.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 60 |
| N | Rotation | Cr |

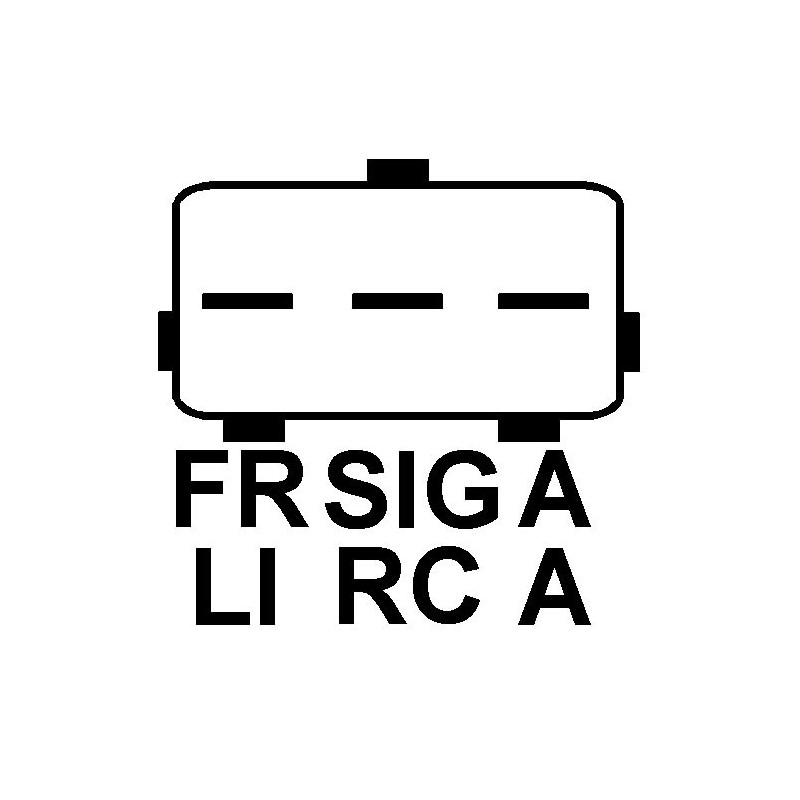

| O | Plug n° 1 | PL57 |
| R | Total length mm | 166.00 |
Replacing | |
|---|---|
| 102211-8030 | DENSO |
| 102211-8031 | DENSO |
| 1097304 | FORD |
| 1301496 | FORD |
| 1406099 | FORD |
| 63321678 | MAGNETI MARELLI |
| 63341678 | MAGNETI MARELLI |
| 63377409 | MAGNETI MARELLI |
| 98AB10300DB | FORD |
| 98AB10300DC | FORD |
| 98AB10300DD | FORD |
| 98AB10300DE | FORD |
| 98AB10300DF | FORD |
| 98AB10300DG | FORD |
| 98AB10300DH | FORD |
| 98AB10300DJ | FORD |
| CA1483IR | HC-PARTS |
| EGL1304 | MOTORCRAFT |
| R98AB10300DE1 | FORD |
generic brand
| 0986044671 | BOSCH |
| 1022118030 | DENSO |
| 1022118031 | DENSO |
| 1070804 | |
| 1097304 | |
| 11209428 | MAHLE |
| 112143 | Cargo |
| 12044650 | EuroTec |
| 12044670 | EuroTec |
| 1301496 | FORD |
| 20110358 | PRESTOLITE |
| 21358N | WAI |
| 21358R | WAI |
| 24068N | WAI |
| 273789 | Elstock |
| 437620 | VALEO |
| 56730 | EAI |
| 5796SP | Spidan |
| 595527080 | PSH |
| 63321678 | MAGNETI MARELLI |
| 63341678 | MAGNETI MARELLI |
| 63377409 | MAGNETI MARELLI |
| 9090076F | Friesen |
| 933649 | EDR |
| 98AB10300DB | FORD |
| 98AB10300DC | FORD |
| 98AB10300DD | FORD |
| 98AB10300DE | FORD |
| 98AB10300DF | FORD |
| 98AB10300DG | FORD |
| 98AB10300DH | FORD |
| 98AB10300DJ | FORD |
| ALT4219 | UNIPOINT |
| ALT9052sa | Electrolog |
| CA1483IR | HC |
| DAN507 | DENSO |
| DAN562 | DENSO |
| DRA3649 | DELCO REMY |
| F042307013 | BOSCH |
| F042A07013 | BOSCH |
| HCA1483IR | HC |
| IA9026 | MAHLE |
| L44670 | ATL |
| LRB00358 | LUCAS |
| LRB358 | LUCAS |
| LRB358R | LUCAS |
| MAN7409 | MAGNETI MARELLI |
| MG729 | MAHLE |
| OAN11226 | Optimum |
mounting on :
| Modèle | litre | Tipo of Gas | Start build | à la date | Tipo moteur | moteur | KW | chevaux | châssis | cm3 | Cylindres |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDB | i 16V | 85 | 115 | Break | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDC | i 16V | 85 | 115 | Break | 1796 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDF | 16V | 96 | 131 | 1988 | 4 | |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDB | 16V | 96 | 131 | 1988 | 4 | |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDD | 16V | 96 | 131 | 1988 | 4 | |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDC | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDF | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDC | 16V | 96 | 131 | 1988 | 4 | |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDB | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDD | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDF | i 16V | 85 | 115 | Break | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDE | i 16V | 85 | 115 | Break | 1796 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDC | 16V | 96 | 131 | 1988 | 4 | |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDB | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1999 02 | 2004 11 | EDDD | 16V | 96 | 131 | Break | 1988 | 4 |
| Focus | 1.8 | Unleaded | 1999 04 | 2005 03 | 85 | 116 | Break | 1796 | 4 | ||
| Focus | 2.0 | Unleaded | 1998 10 | 2004 11 | EDDF | 16V | 96 | 131 | Hayon | 1988 | 4 |
| Focus | 1.8 | Unleaded | 1998 10 | 2004 11 | EYDE | i 16V | 85 | 115 | Hayon | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1998 10 | 2004 11 | EYDF | i 16V | 85 | 115 | Hayon | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDC | i 16V | 85 | 115 | 1796 | 4 | |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDB | i 16V | 85 | 115 | 1796 | 4 | |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDG | i 16V | 85 | 115 | 1796 | 4 | |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDL | i 16V | 85 | 115 | Break | 1796 | 4 |
| Focus | 2.0 | Unleaded | 1998 10 | 2004 11 | EDDC | 16V | 96 | 131 | Hayon | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1998 10 | 2004 11 | EDDD | 16V | 96 | 131 | Hayon | 1988 | 4 |
| Focus | 2.0 | Unleaded | 1998 10 | 2004 11 | EDDB | 16V | 96 | 131 | Hayon | 1988 | 4 |
| Focus | 2.0 | Unleaded | 2002 10 | 2004 11 | HMDA | 158 | 215 | Hayon | 1988 | 4 | |
| Focus | 1.8 | Unleaded | 1998 10 | 2004 11 | EYDG | i 16V | 85 | 115 | Hayon | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1998 10 | 2004 11 | EYDI | i 16V | 85 | 115 | Hayon | 1796 | 4 |
| Focus | 1.8 | Unleaded | 1999 02 | 2004 11 | EYDL | i 16V | 85 | 115 | 1796 | 4 | |
| Lister, Marine |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
