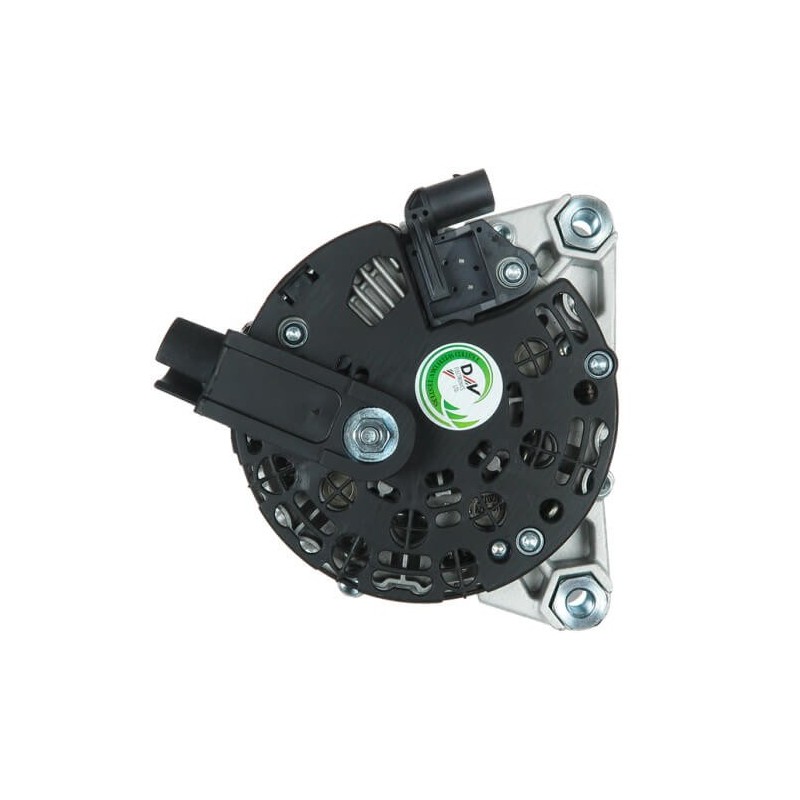

Alternator replacing 0121615021 / 0121615058 / 0986081400
| 1435647 | Ford | |
| 1455494 | Ford | |
| 1790385 | Ford | |
| 2099447 | Ford | |
| 210426 | Messmer | |
| 2191911502 | DRI | |
| 2205627 | PIC | |
| 23973 | Lucas | |
| 285587 | Elstock | |
| 32081400 | Herth Buss | |
| 440480 | Valeo | |
| 57268 | EAI | |
| 595568150 | PSH | |
| 6G9J10300ADA | Ford | |
| 6G9N10300ADA | Ford | |
| 6G9N10300ADB | Ford |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 42.50 |
| B | Width/holder arm | 21.00 |
| C | Mount. bracket dist. | 46.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 30 |
| G | Belt. adj. bracket hole | 10.50 |
| G | Belt. adj. bracket hole 2 | M10 |
| H | Pulley dia. | 54.50 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 60 |
| N | Rotation | CW |
| O | Plug no. | PL137 |
| R | Total length mm | 184.00 |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
generic brand
replacing
| 0121615021 | Bosch |
| 0121615058 | Bosch |
| 0121615121 | Bosch |
| 063536151210 | Magneti Marelli |
| 0986081400 | Bosch ruil |
| 115544 | Cargo |
| 12090257 | EuroTec |
| 1435647 | Ford |
| 1455494 | Ford |
| 1790385 | Ford |
| 2099447 | Ford |
| 210426 | Messmer |
| 2191911502 | DRI |
| 2205627 | PIC |
| 23973 | Lucas |
| 285587 | Elstock |
| 32081400 | Herth Buss |
| 440480 | Valeo |
| 57268 | EAI |
| 595568150 | PSH |
| 6G9J10300ADA | Ford |
| 6G9N10300ADA | Ford |
| 6G9N10300ADB | Ford |
| 8EL011712611 | Hella |
| 9090369 | Friesen |
| 9090369F | Friesen |
| 930059 | EDR |
| 9426 | CEVAM |
| 944390903690 | Magneti Marelli |
| CA2113IR | HC |
| DRA0059 | Remy |
| L83140 | ATL |
| LR002899 | Rover Group |
| LRA02973 | Lucas |
| MRA90369 | Magneti Marelli |
| OAN12326 | Optimum |
| RNL615021 | RNL |
| RNL615021INA | RNL |
| RNL615021OER | RNL |
for
| Brand | Model | Typ | Year |
| FORD | Mondeo 2.0 TDCi | [QXBB] | 03.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [TYBA] | 11.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [UFBA] | 03.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [UFBB] | 03.2007-01.2015 |
| FORD | Mondeo 2.2 TDCi | [Q4BA] | 03.2008-10.2010 |
| FORD | Mondeo 2.2 TDCi | [Q4BA] | 08.2008-10.2010 |
| FORD | Mondeo 2.0 TDCi | [AZBA] | 03.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [AZBA] | 03.2007-12.2012 |
| FORD | Mondeo 2.0 TDCi | [KLBA] | 11.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [LPBA] | 11.2007-01.2015 |
| FORD | Mondeo 2.0 TDCi | [QXBA] | 03.2007-01.2015 |
| LAND ROVER | Freelander 2.2 TD4 4x4 | [224DT] | 10.2006-10.2014 |
| LAND ROVER | Freelander 2.2 TD4 4x4 | [224DT] | 01.2007-10.2014 |
| LAND ROVER | Freelander 2.2 TD4 4x4 | [DW12BTED4] | 10.2006-10.2014 |
