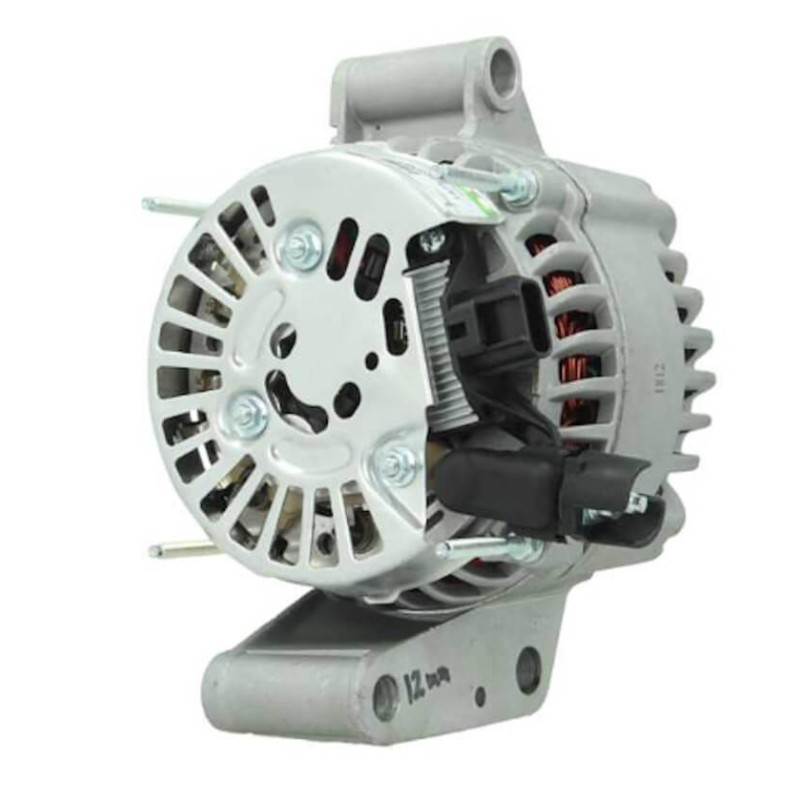

Alternator replacing FORD 1S7T10300DF / 1S7T10300DE / 1S7T10300DD

Information:

Voltage 14

Amp 115

D = Bracket hole 13.50

G = Belt. adj. bracket hole 2 13.50

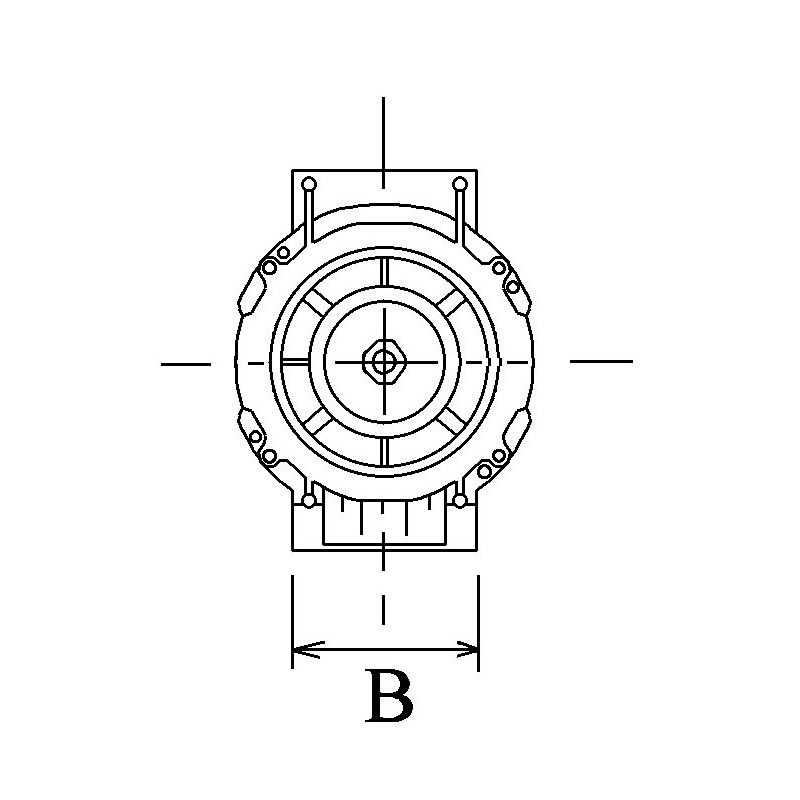

B =Width/holder arm 55.00

E =Belt. adj. brackethole pos. 60

C =Mount. bracket dist 86.50

H =Pulley dia. 53.50

A =Pulley dist. 41.00

Grooves/pulley 6

Position B + M6

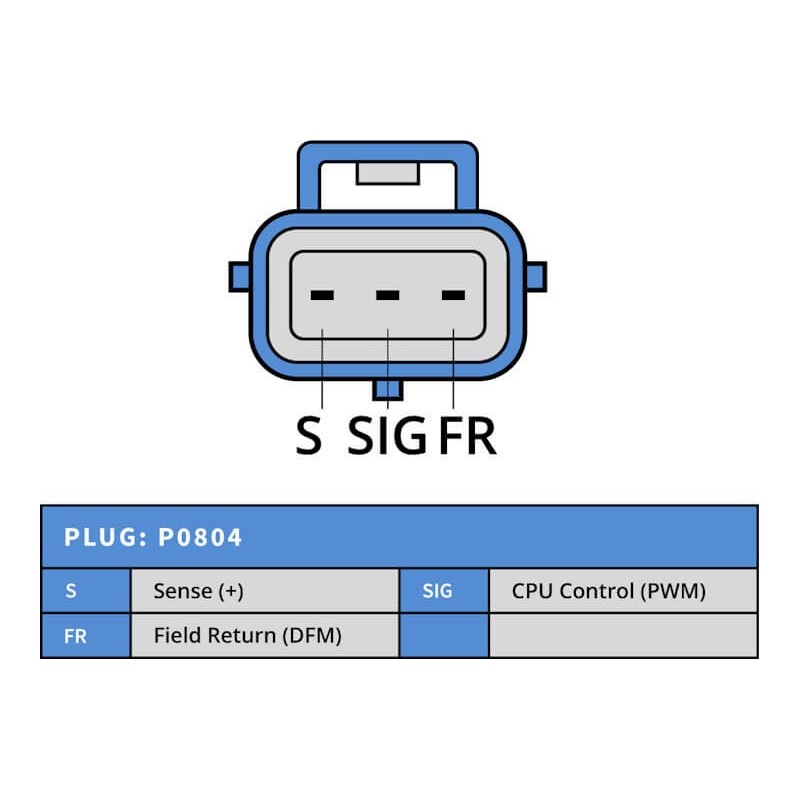

Plug no. 1 PL57

Bracket hole 12.00

Fan If

Pulley Serpentine Pulley

generic brand

replacing

= BOSCH 0986049460

= DELCO REMY DRA4144

= FORD 1S7T10300DC / 1S7T10300DB / 1S7T10300DA / 1S7T10300BE / 1S7TBC / 1s7t10300df / 1S7T10300DE / 1s7t10300dd / 1S7T10300BD / 1s7t10300bc / 1s7t10300bb / 1s7t10300ba / 1478608 / 1464779 / 1211891 / 1151212 / 1140696 / 1131820 / 1124015 / 1120211

= VISTEON 20-150-01006 / 20-150-01005

= JAGUAR C2S27198 / C2S47100

= MAGNETI MARELLI 63380006

                     NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY
