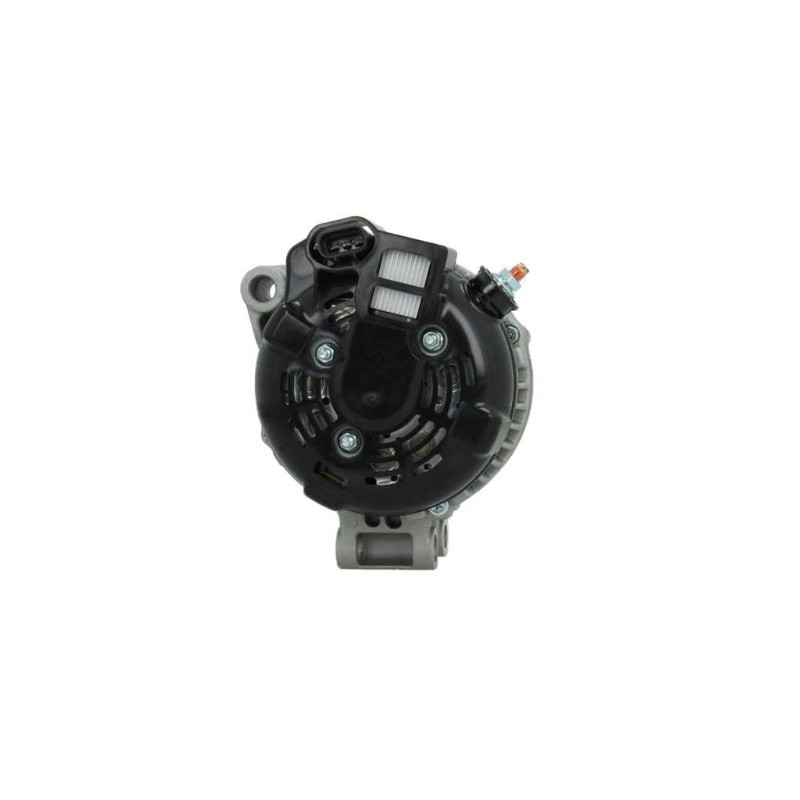

Alternator replacing DENSO 104210-3720 / FORD 4R8310300AB / JAGUAR 4R8310300AB / C2C20533
Alternator NEW replacing DENSO 104210-3720 / FORD 4R8310300AB / JAGUAR 4R8310300AB / C2C20533
DRA0254 / LRA03123
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.00x14.60 |
| G | Belt. adj. bracket hole | 11.50 |
| B | Width/holder arm | 50.00 |
| E | Belt. adj. brackethole pos. | 8 |
| C | Mount. bracket dist | 48.00 |
| H | Pulley dia. | 57.50 |
| A | Pulley dist. | 22.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 84.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

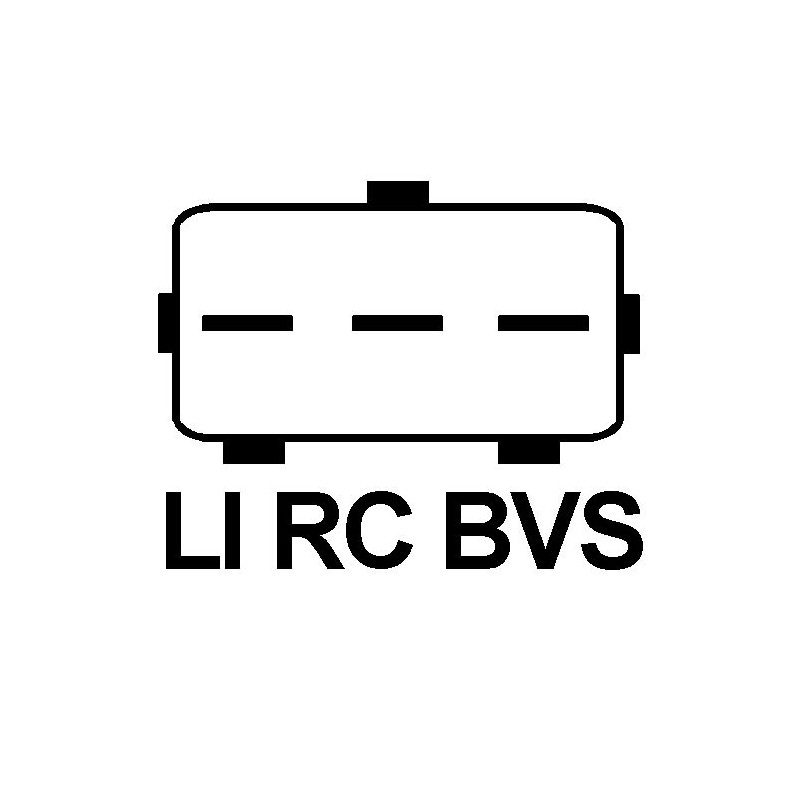

| o | Plug no. 1 | PL136 |
| R | Total length mm | 183.00 |
Replacing | |
|---|---|
| 104210-3720 | DENSO |
| 4R8310300AB | FORD |
| 4R8310300AB | JAGUAR |
| c2c20533 | JAGUAR |
Mounted on :
| S-type | S-type | 2.7 | Diesel | 2004 06 | - | AJD | Diesel | 152 | 207 | L | 2720 | 6 | CCX | |
| XJ | XJ 6 | 2.7 | Diesel | 2005 10 | - | AJD | Diesel | 152 | 207 | 2720 | 6 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
