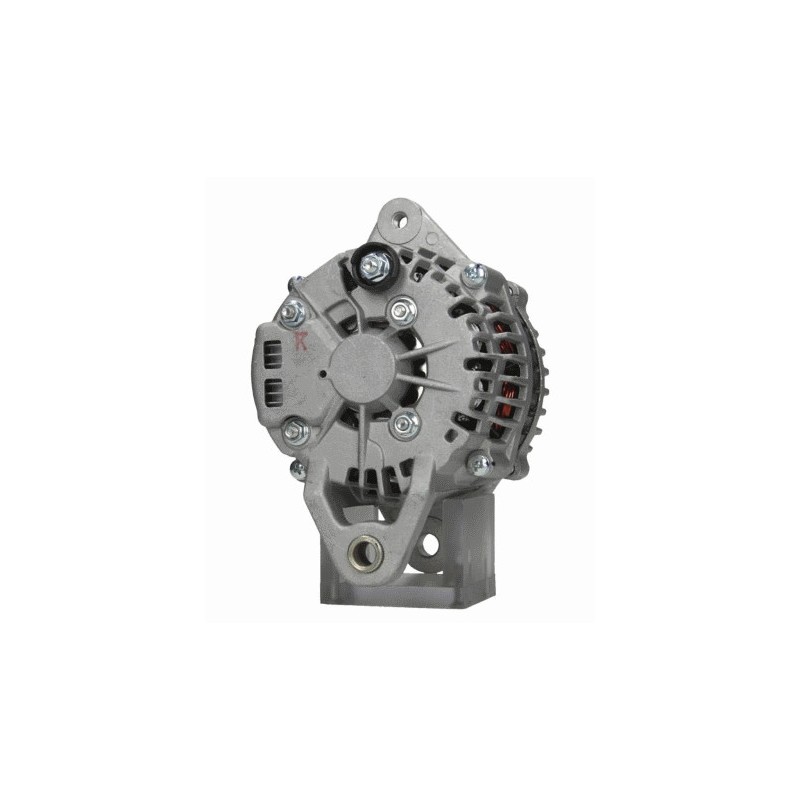

Alternator replacing HITACHI LR170-767B / LR170-760 / LR160- 734B / LR160-734
Alternator for OPEL Monterey , ISUZU Trooper
HITACHI LR170-760, ISUZU 8971453863, 8971845310, OPEL 62-04-167, 93-175-831, 93-175-974, 95-12-811, 97-184-531, 97-219-253,VAUXHALL 97145386
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 70
D = Bracket hole 10.00
G = Belt. adj. bracket hole M8
B = Width/holder arm 13.00
E = Belt. adj. brackethole pos. 60
C = Mount. bracket dist 81.40
H = Pulley dia. 62.00
A = Pulley dist. 44.50
Grooves/pulley 2
J = Radius 79.70
J = Radius 79.70
Position B + M6
Rotation Cr

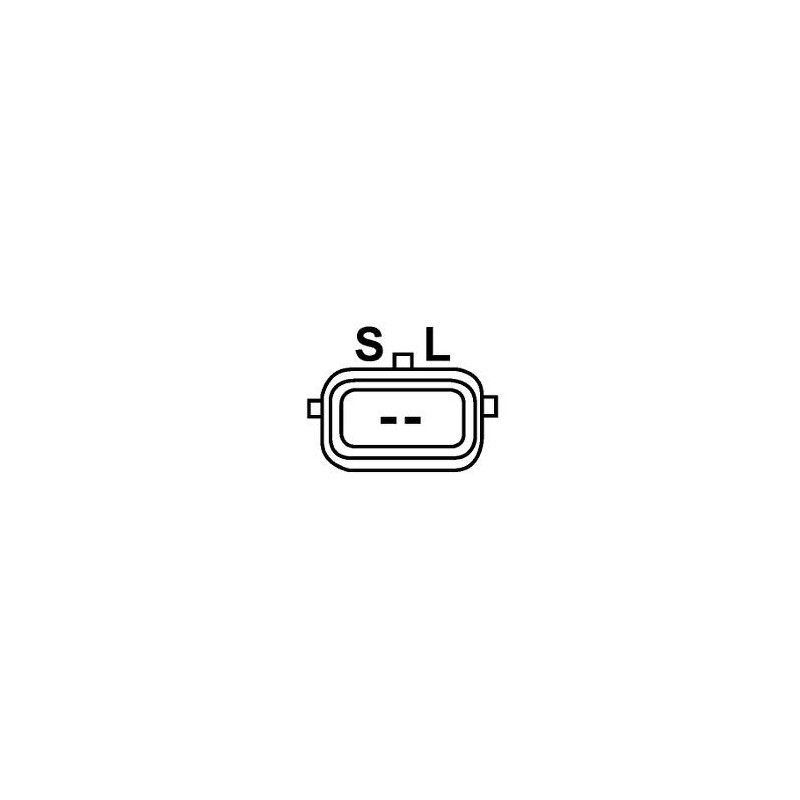

Plug no. 1 PL160
Fan If
Pulley Pulley double
R = Total length mm 167.50
generic brand
replacing
= BOSCH 0986044051
=HITACHI LR170-767B / LR170-760 / LR160-734B / LR160-734
= ISUZU 8-97219-253-0 / 8-97184-531-0
= OPEL 93175974 / 93175831 / 9512811 / 97219253 / 97184531 / 6204167
=VAUXHALL 97219253 / R1530062 / 97184531
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
