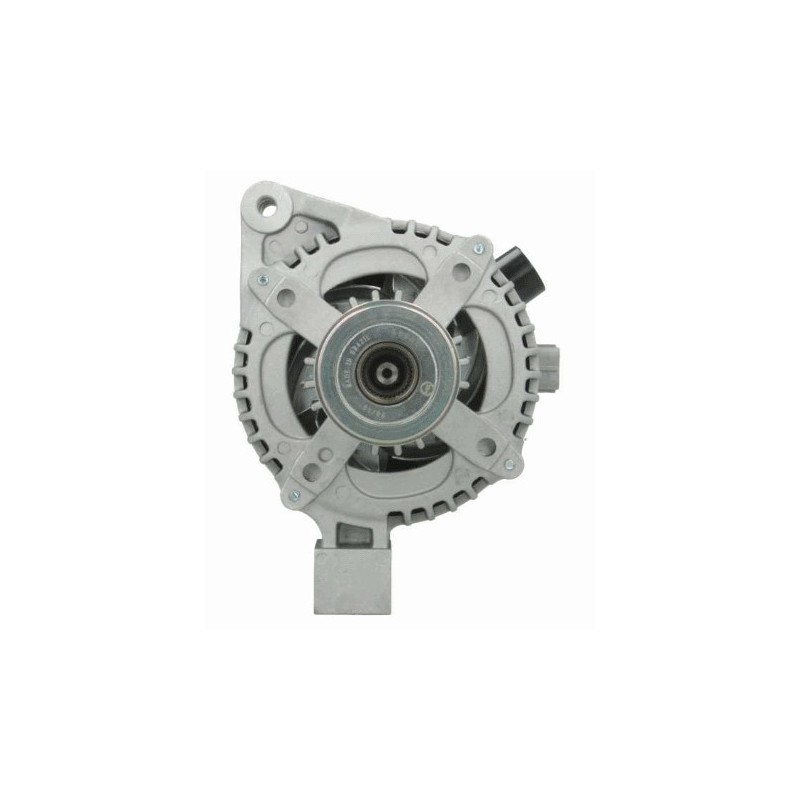

Alternator replacing DENSO 104210-3550 / 104210-355
Alternator replacing :
= DENSO 104210-3550 / 104210-3551 / DELCO REMY DRA0741
= FORD 1374082 / 1684865 / 3M5T10300JA / 3M5T10300JB / 3m5t10300jc / 3M5T10300JD / LUCAS LRA03217 /VOLVO 1684865
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 14
Amp 120
D =Bracket hole 8.20
G =Belt. adj. bracket hole 8.5x17.5
B =Width/holder arm 38.20
E =Belt. adj. brackethole pos. 60
C =Mount. bracket dist 90.00
H =Pulley dia. 55.50
A =Pulley dist. 73.20
Grooves/pulley 5
J = Radius 88.80
J = Radius 89.0
Position B + M8
Rotation Cr

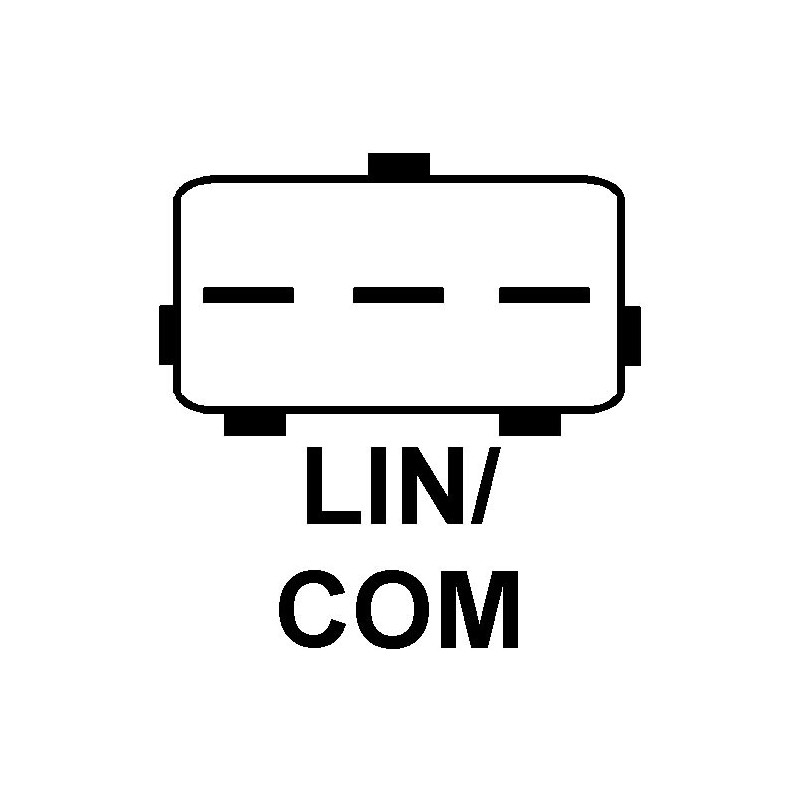

Plug no. 1 PL154
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
Total length mm 170.00
Code ID 60
Communication LIN1
generic brand
fits:
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| VOLVO | C70 2.4 | [B5244S5] | 03.2006-10.2009 | |
| VOLVO | C70 2.4 i | [B5244S4] | 03.2006-10.2009 | |
| VOLVO | C70 T5 | [B5254T3] | 03.2006-02.2007 | |
| VOLVO | S40 2.4 | [B5244S4] | 01.2004-12.2010 | |
| VOLVO | S40 2.4 | [B5244S5] | 01.2004-12.2010 | |
| VOLVO | S40 T5 | [B5254T3] | 01.2004-12.2007 | |
| VOLVO | S40 T5 AWD | [B5254T3] | 04.2004-12.2007 | |
| VOLVO | V50 2.4 | [B5244S4] | 04.2004-12.2010 | |
| VOLVO | V50 2.4 | [B5244S5] | 04.2004-12.2010 | |
| VOLVO | V50 T5 | [B5254T3] | 04.2004-12.2007 | |
| VOLVO | V50 T5 AWD | [B5254T3] | 04.2004-12.2007 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
