Alternator NEW replacing FORD 1L8U10300CD / 1L8U10300CE / 1L8Z10346CB

Information:

Voltage 14

Amp 110

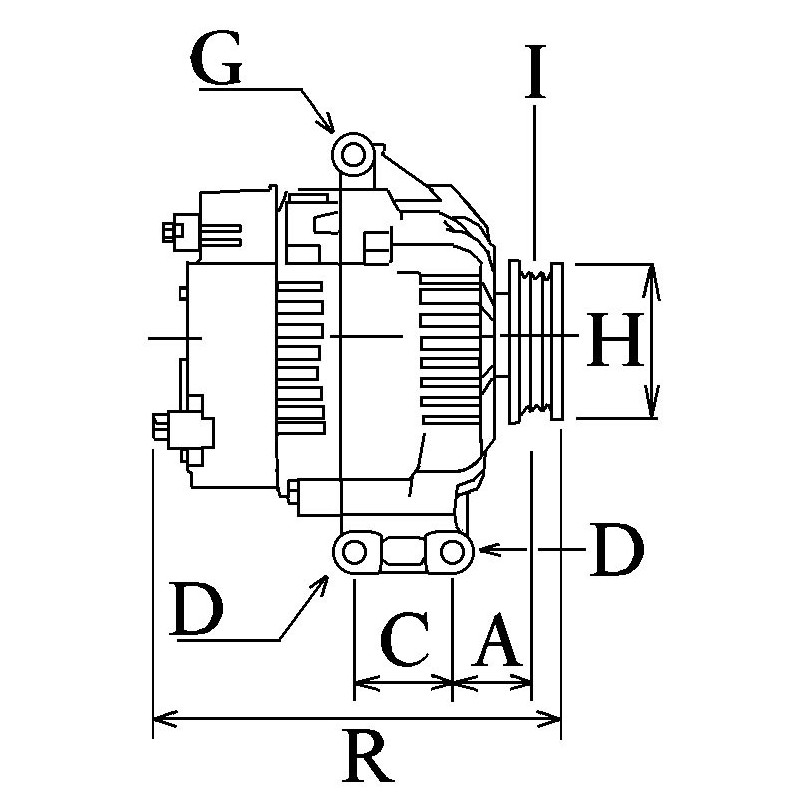

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.20

B = Width/holder arm 55.20

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 74.00

H = Pulley dia. 56.50

A = Pulley dist. 40.50

Grooves/pulley 6

Position B + M6

Rotation Cr

Plug no. 1 PL116

D = Bracket hole 12.40

Fan If

Pulley Serpentine Pulley

Remarks Replacing: 6G séries.

R = Total length mm 163.00

generic brand

replacing
