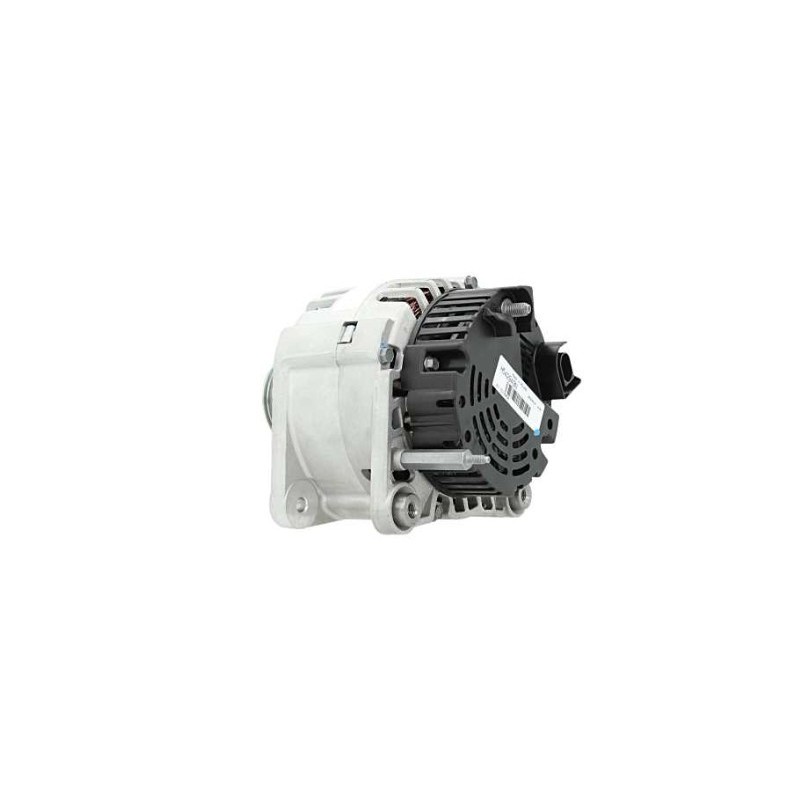

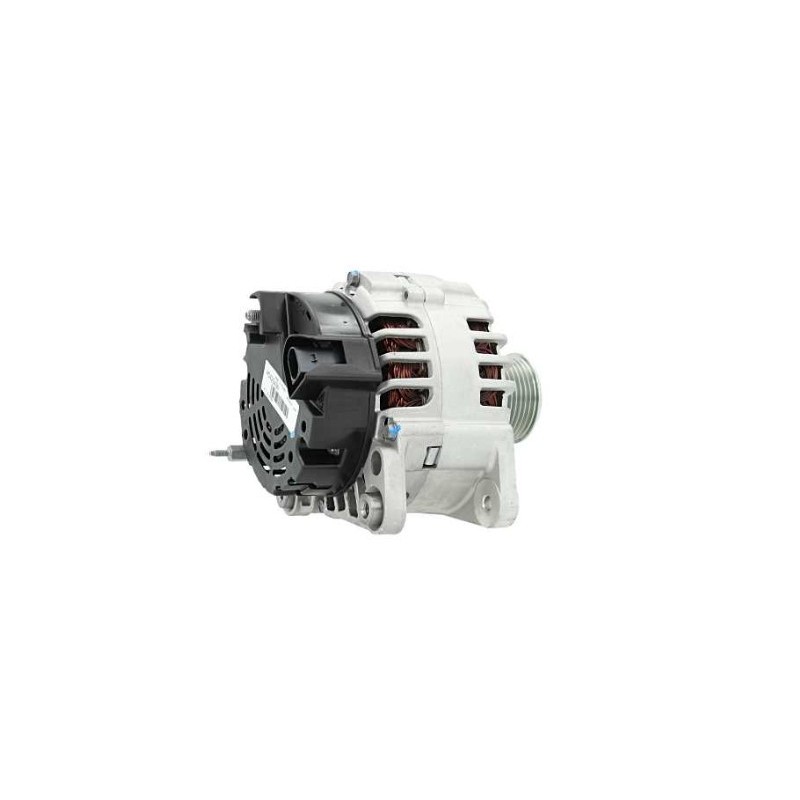

Alternator NEW VALEO SG12B015 / SG12B090
028903026H | Volkswagen | |
028903028E | Volkswagen | |
028903029G | Volkswagen | |
028903029GX | Volkswagen | |
028903030 | Volkswagen | |
028903030A | Volkswagen | |
038903018Q | Volkswagen | |
038903018QX | Volkswagen | |
038903023S | Volkswagen | |
038903024F | Volkswagen | |
038903024G | Volkswagen |
Features
Information:
Voltage 14 - Amp 120

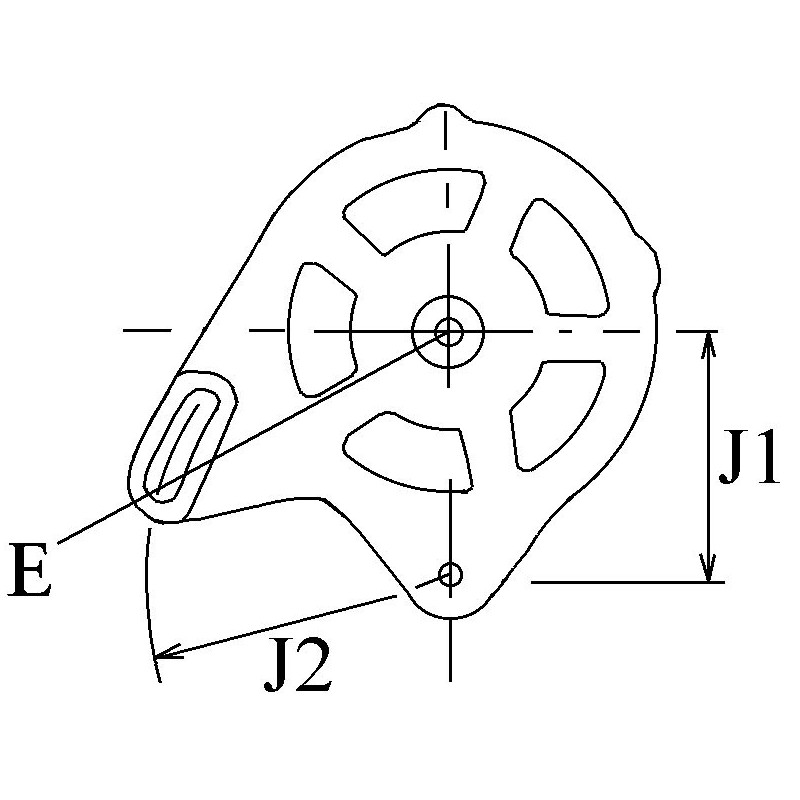

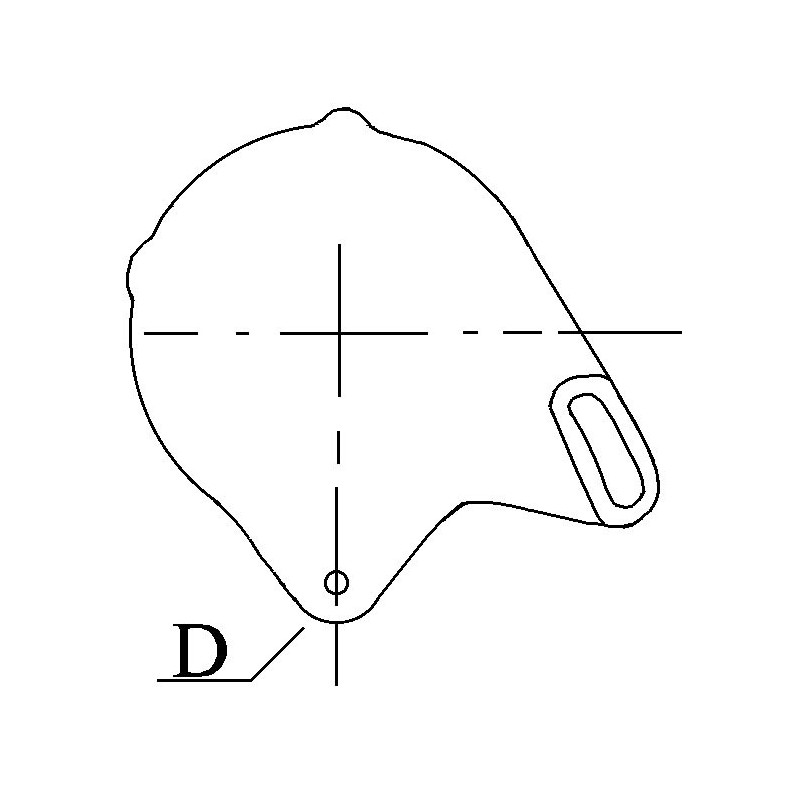

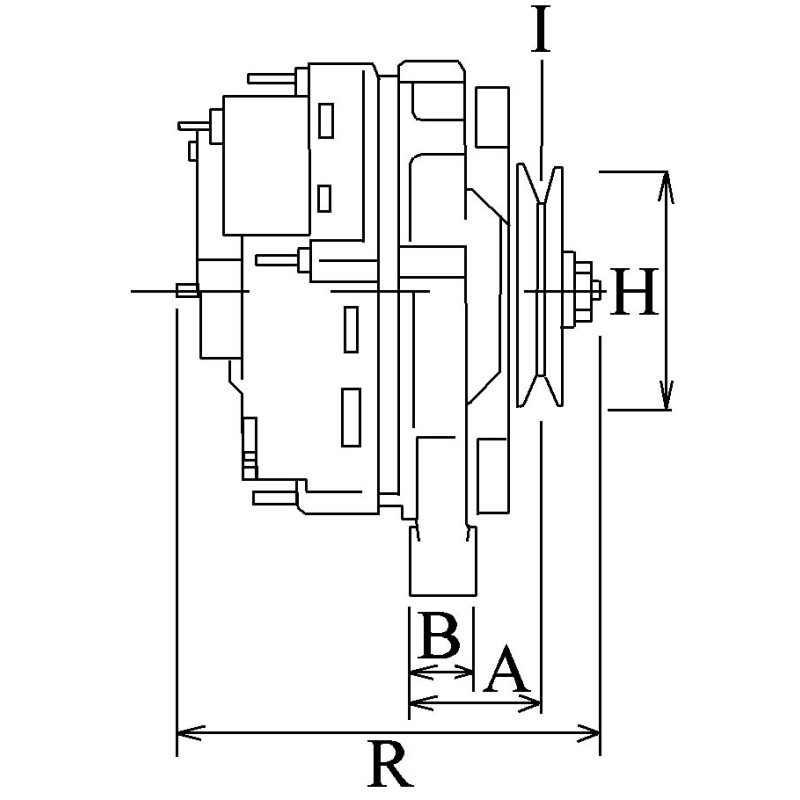

Physical Information | ||
---|---|---|
D | Bracket hole | 8.50 |
G | Belt. adj. bracket hole | 8.50 |
B | Width/holder arm | 14.50 |
E | Belt. adj. brackethole pos. | 45 |
C | Mount. bracket dist | 60.50 |
H | Pulley dia. | 56.00 |
A | Pulley dist. | 39.00 |
i | Grooves/pulley | 6 |
j | Radius | 90.00 |
k | Position B + | M8 |
n | Rotation | Cr |
o | Plug no. 1 | PL61 |
Replacing
0124515010 |
0124515117 |
0124515119 |
0124515121 |
0124515123 |
0124515124 |
0124515125 |
0124515127 |
028903028E |
028903029G |
028903030 |
028903030A |
038903023S |
038903024F |
038903024G |
082903028E |
0986041860 |
0986041861 |
0986041867 |
0986048530 |
1100712 |
1110413 |
112002 |
11203288 |
11204156 |
12201128 |
1239901BO |
1253624 |
13853 |
13853N |
13947 |
1C1T10300AB |
210410 |
2205104 |
2542237 |
2542949A |
2542949B |
282990 |
305518120 |
3M2110300BA |
437317 |
439312 |
442019 |
542949 |
5711SP |
746025 |
8EL737593001 |
90156334 |
90156554 |
90225543 |
90251171 |
9041860F |
941860 |
98VW10300EA |
AAN5178 |
AAN5315 |
ALT1182sa |
CA1394IR |
DRB1860 |
HCA1394IR |
IA1163 |
KTR611036240 |
LR1120701 |
LRB00475 |
MG576 |
R124515010 |
SG12B015 |
SG12B090 |
SG12B090OR+ |
YS6110300AA |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
