Alternator replacing DELCO REMY 1101141 / 1101138 / 1101137 / 10480085

Information:

Voltage 14

Amp 100/105

D = Bracket hole 10.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 51.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 56.00

A = Pulley dist. 74.00

Grooves/pulley 5

J = Radius 84.40

J = Radius 83,40

Position B + M6

Rotation Cr

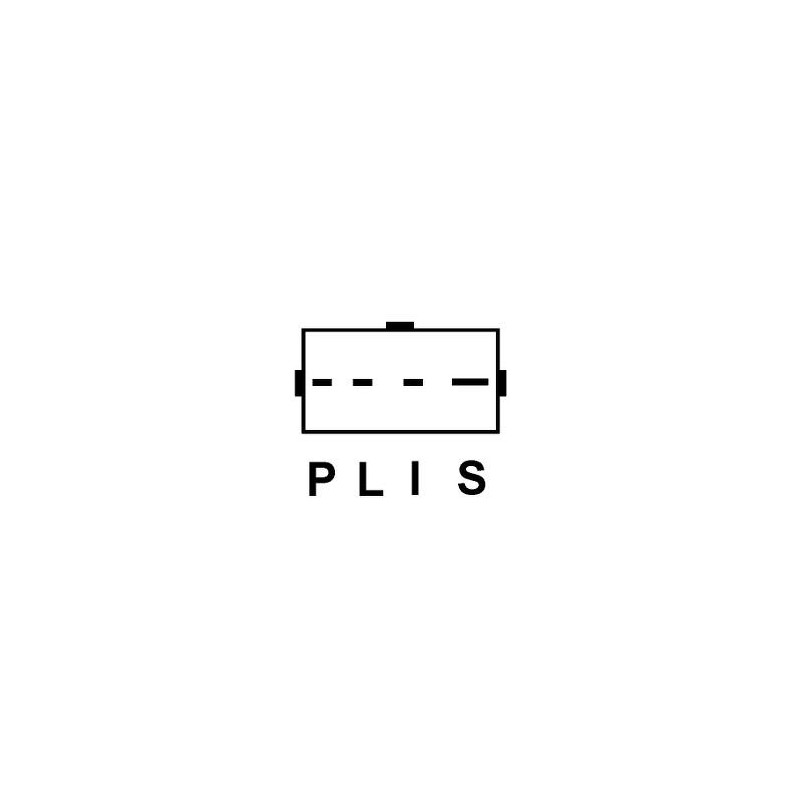

Plug no. 1 PL24

Fan Ef

Pulley Serpentine Pulley

Remarks Replacing: CS130.

R = Total length mm 170.00

= DELCO REMY 10463015 / 10463012 / 10463011 / 10480085 / 1101137 / 1101138 / 1101141

= MOTOROLA USA

8ar2066fa / 8ar2068f

                                        TWO YEARS WARRANTY

                               NO CORE EXCHANGE NEEDED
