w115353

12090497 EuroTec
235519080 PSH
286599 Elstock
600000163240 Magneti Marelli
931235 EDR
96843503 GM
96843503AAG
AAG96843503
DRA1235 Remy
DRA1235SEL +line
J5110917 Magneti Marelli
LRA03489 Lucas
Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Physical information
A Pulley dist. 38.50
B Width/holder arm 16.50
C Mount. bracket dist. 66.00
D Bracket hole 8.50
E Belt. adj. brackethole pos. 4
G Belt. adj. bracket hole 10.00
H Pulley dia. 52.00
I Grooves/pulley 4
J Radius 75.00
J Radius 2 75.00
K B+ M8
K Position/B+ in min. 11
N Rotation CW
O Plug no. 1 PL77
R Total length mm 172.00

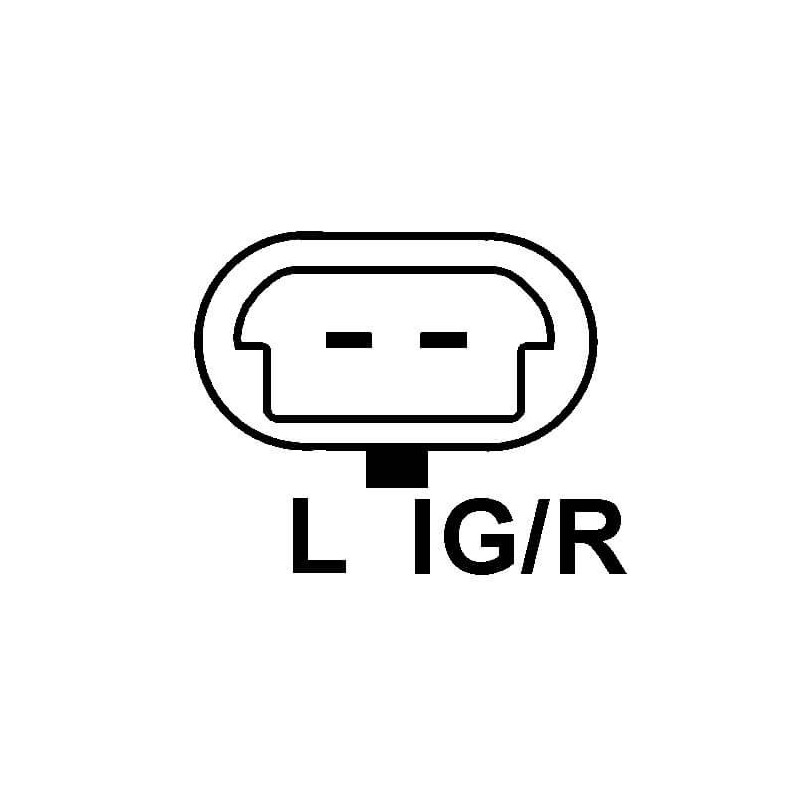

Terminal type L-IG
Lamp type Inactive
Electrical information
Voltage 14
Amp 80
Catalogue information
Pulley SP
Fan IF
Regulator type IR
Vac. pump No

generic brand

for

Brand Model Typ Year
CHEVROLET Aveo 1.2 [B12D1] 01.2008-12.2011
CHEVROLET Aveo 1.2 LPG 01/01/08
CHEVROLET Spark 1.0 [B10D1] 01/01/10
CHEVROLET Spark 1.2 [B12D1] 01/01/10
