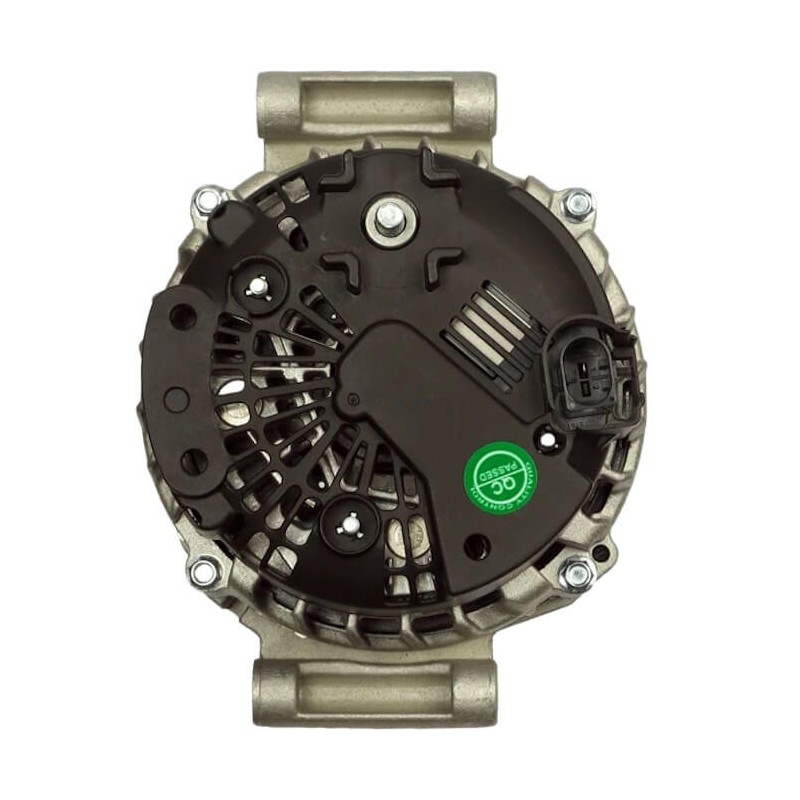

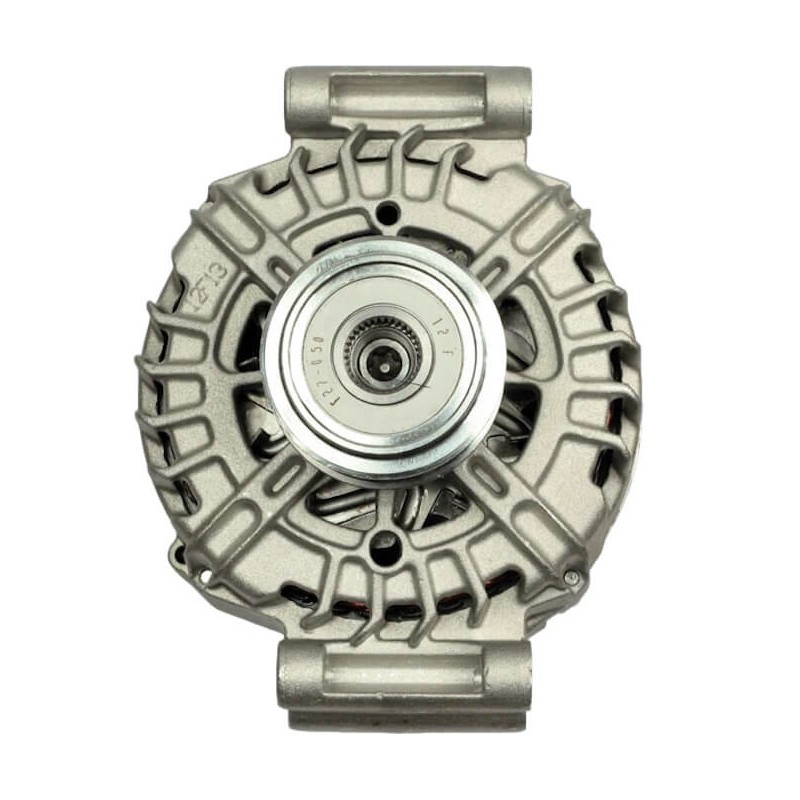

Alternator replacing TG15C094 / VOLKSWAGEN 06E903016SX / 06e903016s
| 06E903016PX | Volkswagen | |
| 06E903016S | Volkswagen | |
| 06E903016SX | Volkswagen | |
| 0986UR6126 | Bosch ruil | |
| 115913 | Cargo | |
| 14201371 | AES | |
| 2543394 | RNL | |
| 2543394A | Valeo | |
| 2543394B | Valeo | |
| 285827 | Elstock | |
| 305562150 | PSH | |
| 439658 | Valeo | |
| 440244 | Valeo | |
| 543394 | Valeo |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 70.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 56.50 |
| H | Pulley dia. | 60.50 |
| A | Pulley dist. | 29.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | CW |

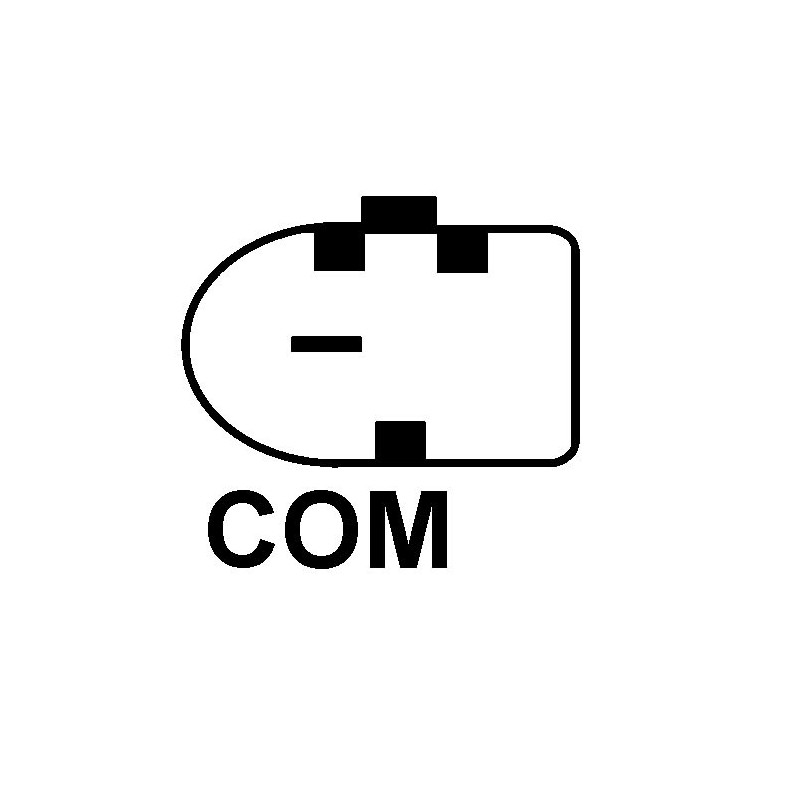

| o | Plug no. 1 | PL125 |
| G | Belt. adj. bracket hole 2 2 | 9.50 |
| R | Total length mm | 190.00 |
generic brand
Replacing :
| 06E903016PX | Volkswagen |
| 06E903016S | Volkswagen |
| 06E903016SX | Volkswagen |
| 0986UR6126 | Bosch ruil |
| 115913 | Cargo |
| 14201371 | AES |
| 2543394 | RNL |
| 2543394A | Valeo |
| 2543394B | Valeo |
| 285827 | Elstock |
| 305562150 | PSH |
| 439658 | Valeo |
| 440244 | Valeo |
| 543394 | Valeo |
| A9528 | Dixie |
| ALT14469 | Wood Auto |
| DRA0594 | Remy |
| LRA03215 | Lucas |
| LRA3215 | Lucas |
| RNLTG15C094 | RNL |
| RNLTG15C094NR | RNL |
| RNLTG15C094OER | RNL |
| TG15C094 | Valeo |
| VAL439658 | Wood Auto |
| VALTG15C094 | Wood Auto |
| WOOALT14469 | Wood Auto |
Mounted on :
| Brand | Model | Typ | Year |
| AUDI | A4 3.2 FSi Quattro | [CALA] | 01/01/08 |
| AUDI | A5 2.7 TDi | [CAMA] | 01/06/07 |
| AUDI | S4 3.0 Quattro | [CAKA] | 01/01/08 |
| AUDI | S4 3.0 Quattro | [CAKA] | 01/11/08 |
| AUDI | A5 2.7 TDi | [CAMA] | 07.2007-05.2008 |
| AUDI | A5 2.7 TDi | [CGKA] | 01/06/07 |
| AUDI | S5 3.0 Quattro | [CAKA] | 01.2010-02.2012 |
| AUDI | S5 3.0 Quattro | [CAKA] | 01/01/10 |
| AUDI | S5 3.0 Quattro | [CGWC] | 01/01/10 |
| AUDI | S5 3.0 Quattro | [CGXC] | 01/01/10 |
| AUDI | A5 3.0 Kabriolet Quattro | [CAKA] | 06.2009-03.2012 |
| AUDI | S5 3.0 Quattro | [CREC] | 01/01/10 |
| AUDI | S5 3.0 Quattro | [CTDA] | 01/01/10 |
| AUDI | S5 3.0 Quattro | [CTUB] | 01/01/10 |
| AUDI | Q5 3.2 FSi Quattro | [CALB] | 01/01/08 |
| AUDI | A5 3.2 FSi | [CALA] | 01/01/07 |
| AUDI | A5 3.2 FSi | [CALA] | 06.2007-02.2012 |
| AUDI | A5 3.2 FSi Quattro | [CALA] | 01/01/07 |
| AUDI | A5 3.2 FSi Quattro | [CALA] | 06.2007-02.2012 |
| AUDI | A5 3.2 FSi Sportback Quattro | [CALA] | 09.2009-02.2012 |
| AUDI | A4 3.2 FSi | [CALA] | 01/01/08 |
| AUDI | A4 3.2 FSi | [CALA] | 01/09/08 |
| AUDI | A4 3.2 FSi Quattro | [CALA] | 01/11/07 |
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
