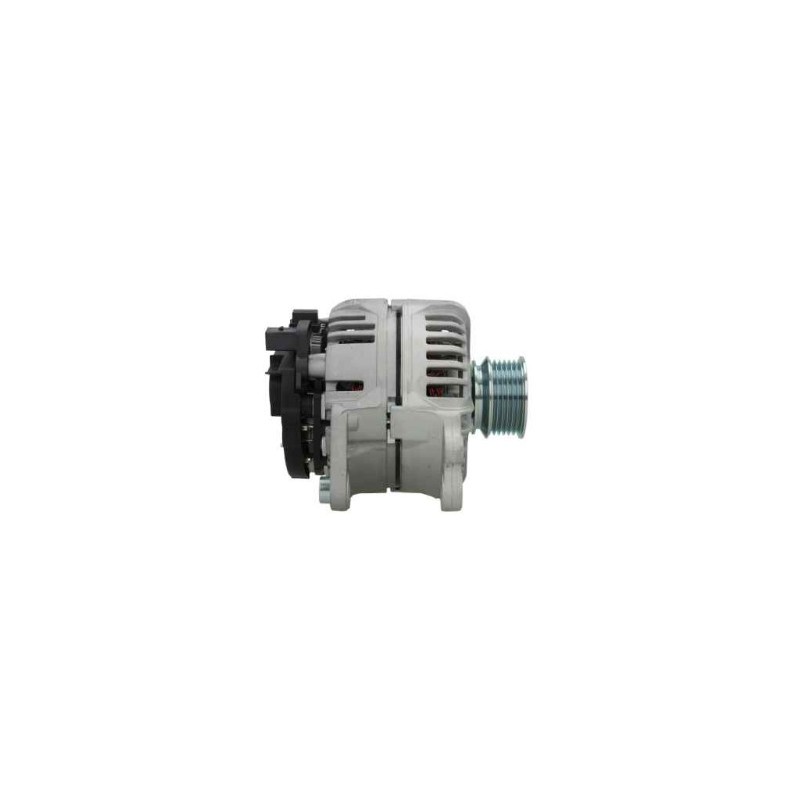

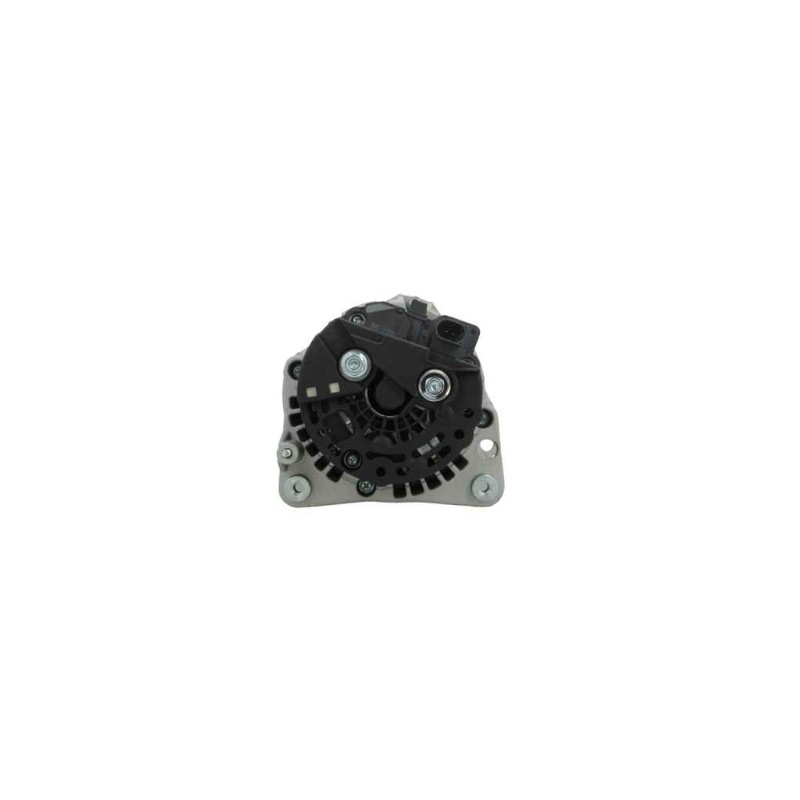

Alternator replacing BOSCH 0124325074 / VALEO SG9B018

Information:

Voltage 14

Amp 90

D = Bracket hole 9.25

G = Belt. adj. bracket hole 9.25

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 56.00

A = Pulley dist. 40.00

Grooves/pulley 6

J = Radius 87.65

J = Radius 87.65

Position B + M8

Rotation Cr

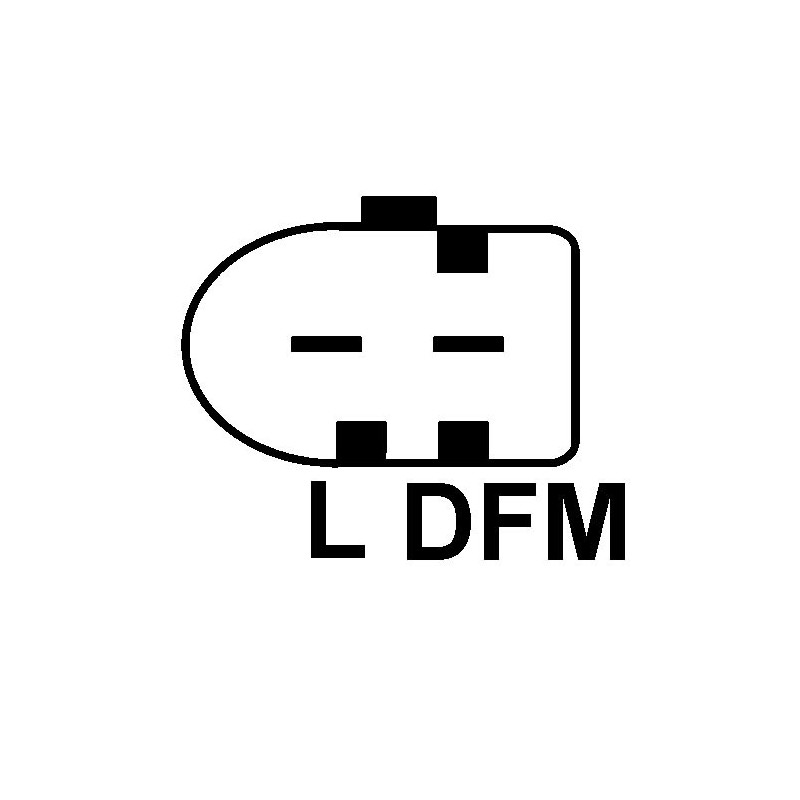

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

= BOSCH 0124325074 / 0124325070 / 0124325011 / 0124325140

0986044380 / 0986046100

= DELCO REMY DRA3806 / DRA3806N

= HELLA 8EL737771001

= LUCAS LRB00486

= VALEO 2542260 / 2542260A / 2542650 / 2542650A

SG9B018 / SG9B055 / 437401 / 439442

= VOLKSWAGEN 030903023M / 030903029A / 036903026B

036903028A / 037903025F / 037903026C  / 045903026C

fits:

-AUDI A2 1,4 essence

- SKODA Fabia 1,4essence

- SKODA Octavia 1,4 essence

- Vokswagen Bra 1,4 essence

• AUDI : 37903025F, 30903023M, 030903023M, 037903025F, 036903026C, 36903026C
• SEAT : 030903023M, 036903018AX, 037903025F, 06B903018KX, 36903018AX, 37903025F
• SKODA : 36903018AX, 030903023M, 37903025F, 06B903018KX, 036903018AX, 037903025F
• VAG : 036903026C, 030903023M, 30903023M, 037903025F, 36903026C, 37903025F
• VW: 036903018AX, 036903026C, 037903025F, 06B903018KX, 37903025F, 030903023M, 36903018AX

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
