Alternator replacing VALEO AF185381 / AF185452 for Kia

Information:

Voltage 14

Amp 75

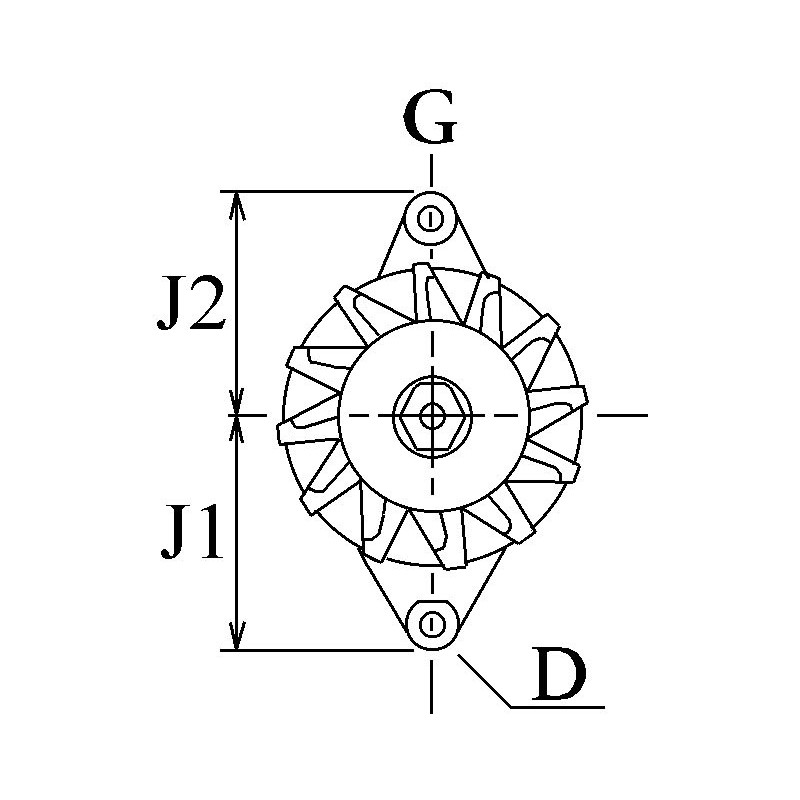

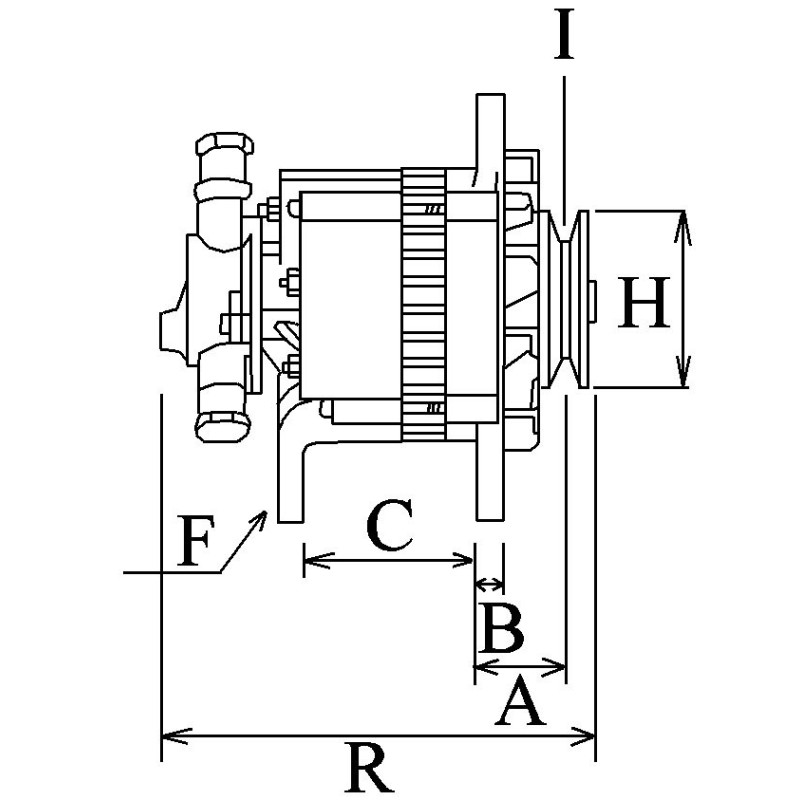

D = Bracket hole 10.45

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 5

C = Mount. bracket dist 80.00

H = Pulley dia. 59.70

A = Pulley dist. 46.00

i Grooves/pulley 5

J = Radius 89.00

J = Radius 89.00

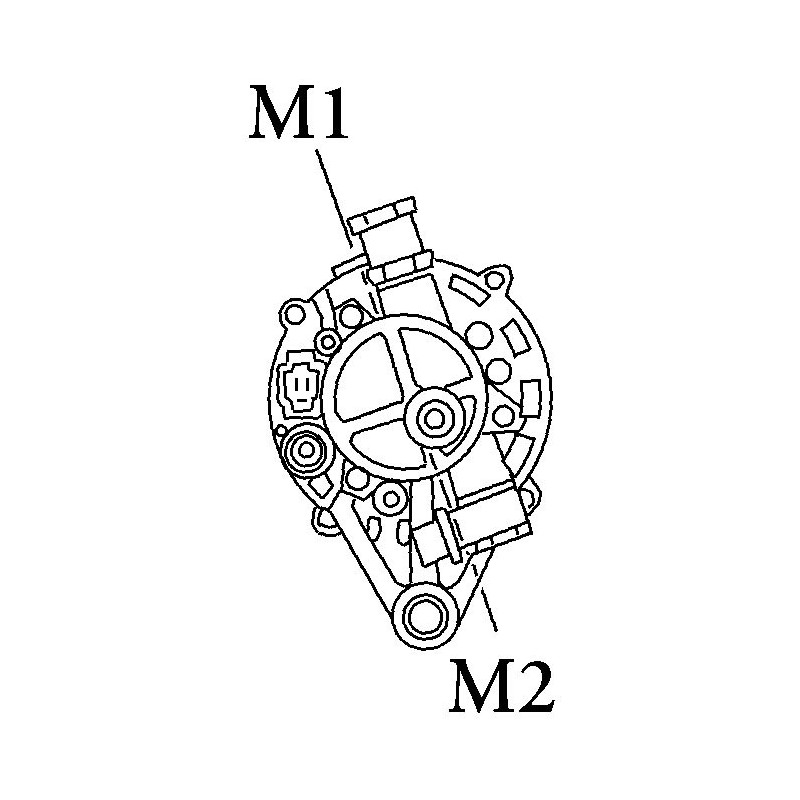

Position B + M8

Rotation Cr

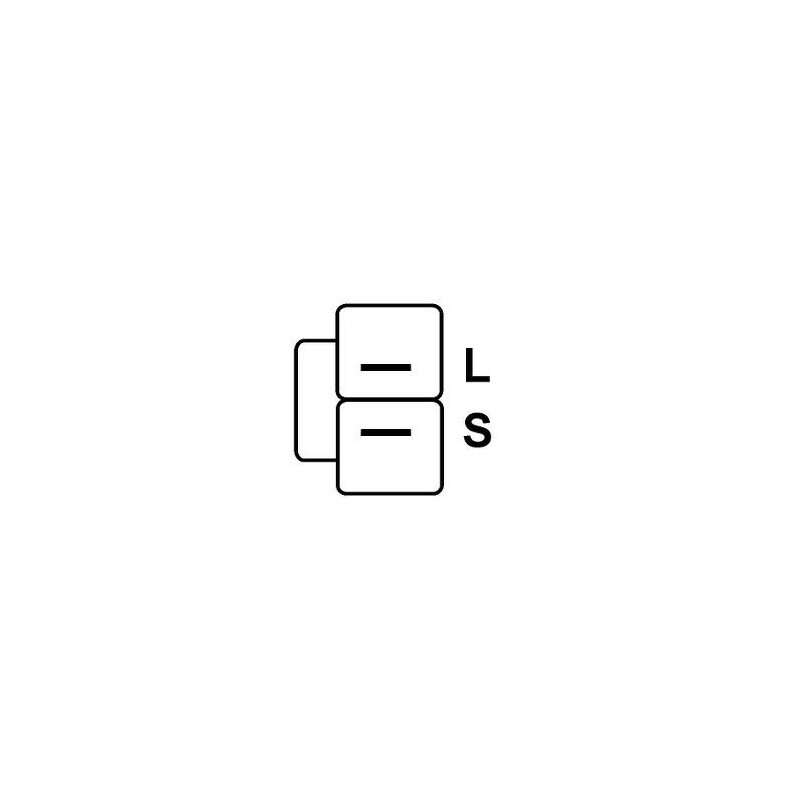

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 234.50

= KIA

0K55218300B / 0K55318300 / 0K55318300A / 0K55318300B 0K55418300 / 0K55518300 / 0K55518300A / 37300-4X200 37300-4X220 / OK55218300B / OK55318300 / ok55318300a OK55318300B / OK55418300 / OK55518300 / ok55518300a

= LUCAS LEA0214

= POONG SUNG

02131-9040 / 02131-9070

                           NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
