Alternator NEW replacing ISKRA 11.201.294 / aak4128 / IA0294

Information:

Voltage 14

Amp 44

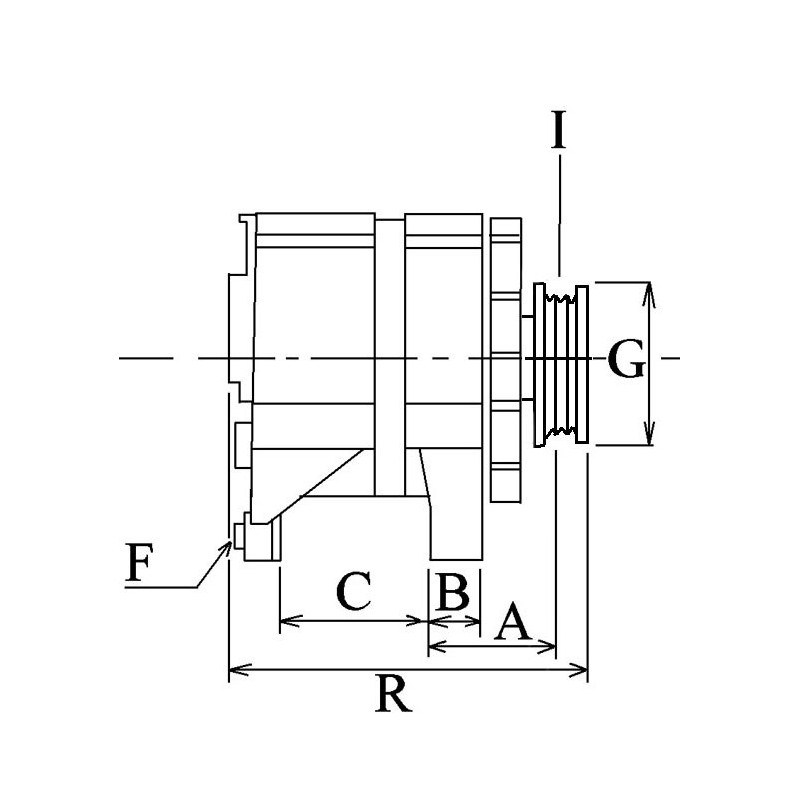

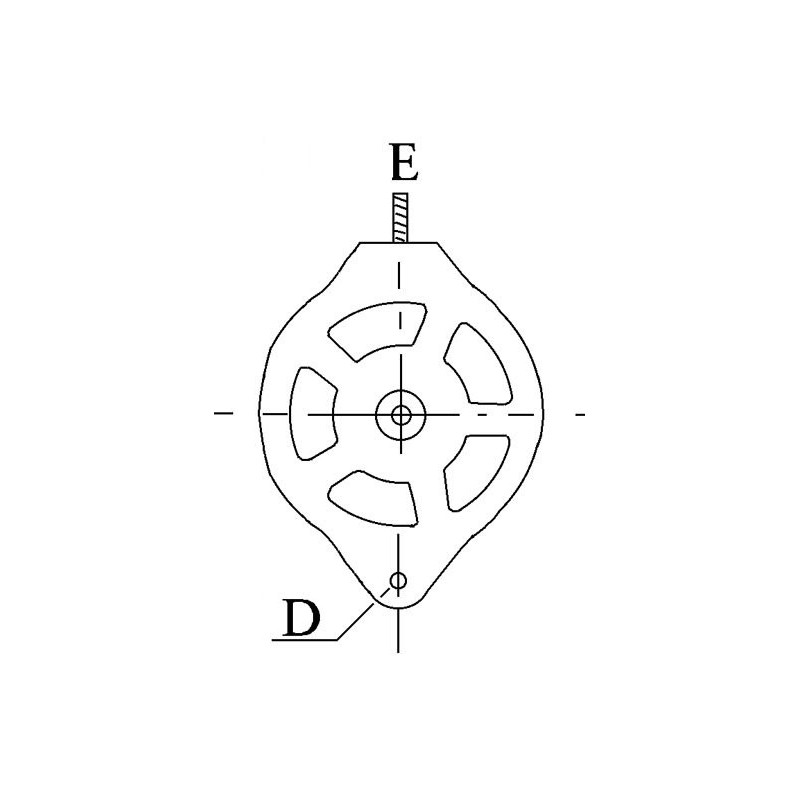

D = Bracket hole 12.00

B = Width/holder arm 19.50

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 60.50

H =  Pulley dia. 82.00

Pulley dist. 46.50

Grooves/pulley 1

J = Radius 83.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 182.00

       = BOSCH 0986032780 / 0986032781

= DELCO REMY 19025772 / DRA2781

= Elmot a124-15 / a124-44s

= ISKRA 11.201.294 / aak4128

= FEMSA als12-81

= HELLA 8EL725585-001  / 8EL725586-001 / 8EL725696-001  / CA 131IR  / CA295IR

= Lada 2105-3701005 / 21053701010 / 2105-3701010

2105370101010 / 222-3701005 / 222-3701010

kat3kt22214b

= LUCAS LRA00589 / LRA00915

= MAGNETI MARELLI 943356380 /  MAR468

= MOTOROLA 9AR5049K

= Katek T22214B50A

= VALEO 432876 / 433483  / NA218

                NO CORE EXCHANGE NEEDED

                                 TWO YEARS WARRANTY
