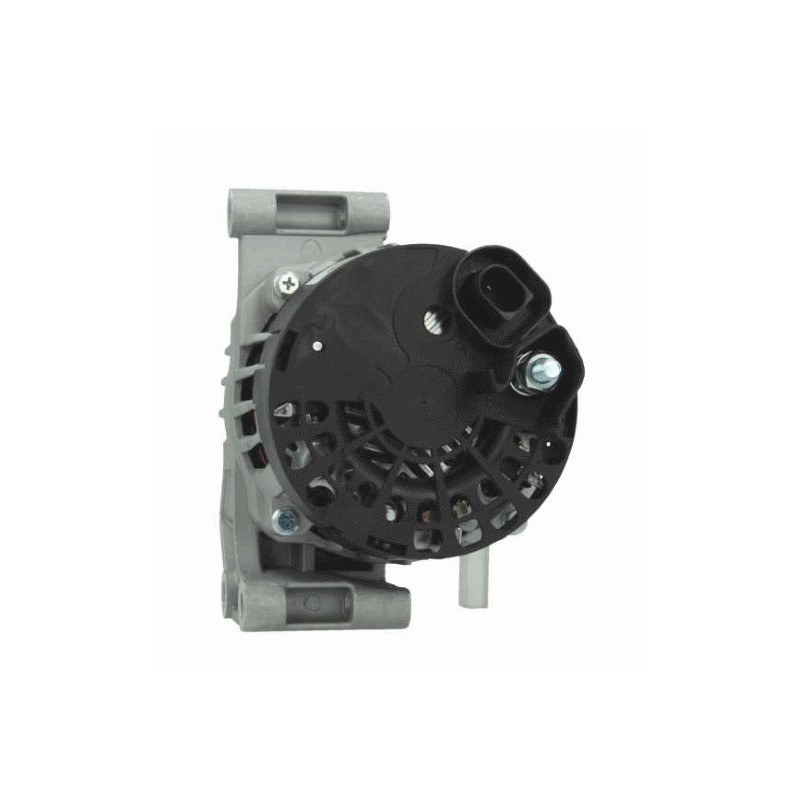

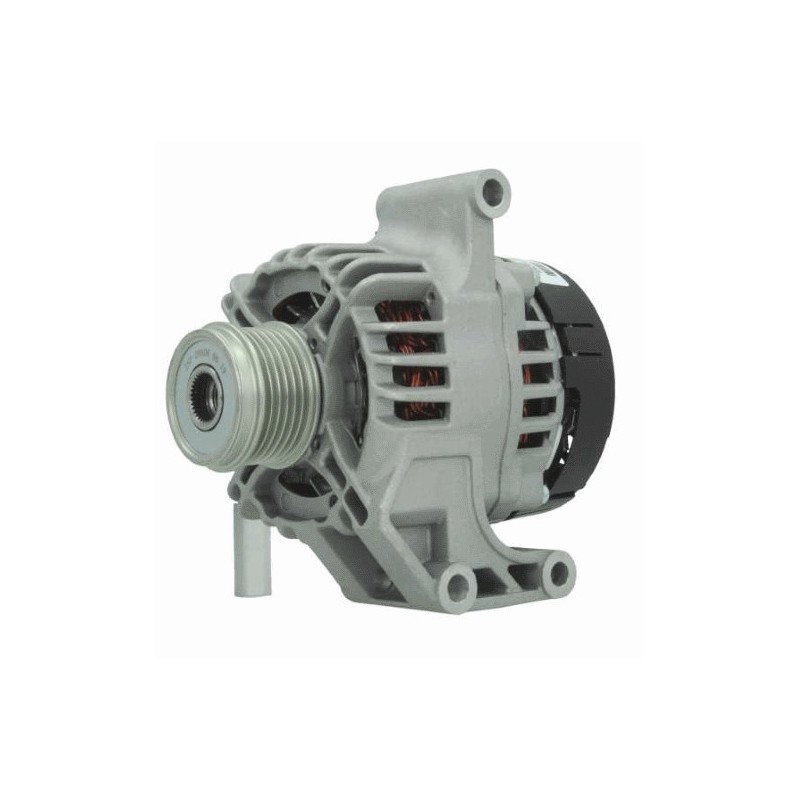

Alternator VALEO TG12S111 / TG12S221
Alternator VALEO TG12S111 / TG12S221
ALFA ROMEO 51880173, DENSO 101210-1700, FIAT 51880173, 51880175, LANCIA 51880173, PSA PEUGEOT CITROEN 1608858180, 51880173, VALEO TG12S111, TG12S221
Alternator as generic available here w20495n
NO CORE EXCHANGE NEEDED
More info
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 42.00 |
| B | Width/holder arm | 64.00 |
| C | Mount. bracket dist | 55.00 |
| D | Bracket hole | 9.20 |
| D | Trou from fixation support 2 | 9.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 9.20 |
| H | Pulley dia. | 54.00 |
| I | Grooves/pulley | 6 |
| K | Position B + | M8 |
| K | B+ position en min. | 14 |
| N | Rotation | Cr |

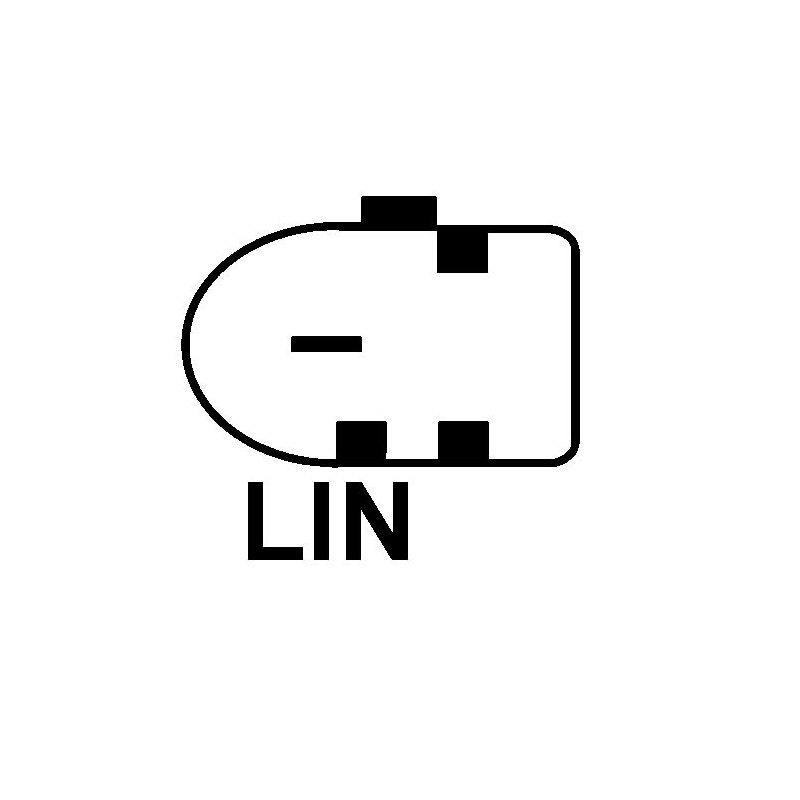

| O | Plug n° 1 | PL174 |
| R | Total length mm | 185.00 |
replacing :
| 1012101700 | DENSO |
| 12090401 | EuroTec |
| 20495N | WAI |
| 285974 | Elstock |
| 439780 | VALEO |
| 440412 | VALEO |
| 505570120 | PSH |
| 51880173 | FIAT |
| 51880175 | FIAT |
| 51984058 | FIAT |
| 57526 | EAI |
| 611709 | VALEO |
| 623616 | VALEO |
| 930671 | EDR |
| DAN1086 | DENSO |
| DRA0671 | DELCO REMY |
| LRA03362 | LUCAS |
| TG12S111 | VALEO |
| TG12S221 | VALEO |
| TG12S247 | VALEO |
fits:
| Model | Model série | litres | Tipo of Gas | to partir from | Tipo engine | Engine Tipo | KW | chevaux | en cm3 |
| Mito | Mito | 1.2 | Diesel | 2013 12 | 199B8.000 | JTDM | 59 | 80 | 1248 |
| Mito | Mito | 1.2 | Diesel | 2011 01 | 199B4.000 | JTDM | 62 | 84 | 1248 |
| 500 | 500L | 1.3 | Diesel | 2012 09 | 199B4.000 | Multijet | 62 | 84 | 1248 |
| 500 | 500 | 1.3 | Diesel | 2016 06 | 312B5.000 | Multijet | 57 | 78 | 1248 |
| 500L | 500L | 1.2 | Diesel | 2014 06 | 330A1.000 | Multijet | 70 | 95 | 1248 |
| Doblo | Doblo | 1.2 | Diesel | 2013 11 | 263A6.000 | Multijet | 55 | 75 | 1248 |
| Doblo | Doblo Combi | 1.3 | Diesel | 2015 03 | 263A6.000 | Multijet | 55 | 75 | 1248 |
| Doblo | Doblo | 1.2 | Diesel | 2013 11 | 263A6.000 | Multijet | 55 | 75 | 1248 |
| Fiorino | Fiorino | 1.3 | Diesel | 2007 11 | 199A9.000 | Multijet | 55 | 75 | 1248 |
| Fiorino | Fiorino | 1.3 | Diesel | 2007 11 | 199A2.000 | Multijet | 55 | 75 | 1248 |
| Fiorino | Fiorino | 1.3 | Diesel | 2008 02 | 199A2.000 | Multijet | 55 | 75 | 1248 |
| Punto | Granfrom Punto | 1.3 | Diesel | 2010 04 | 199B4.000 | Multijet | 62 | 84 | 1248 |
| Punto | Granfrom Punto | 1.3 | Diesel | 2010 04 | 223A9.000 | Multijet | 62 | 84 | 1248 |
| Punto | Punto | 1.3 | Diesel | 2016 05 | 955B2.000 | Multijet | 66 | 90 | 1248 |
| Punto | Punto Evo | 1.3 | Diesel | 2009 10 | 223A9.000 | 16V Multijet | 63 | 86 | 1248 |
| Punto | Punto Evo | 1.3 | Diesel | 2009 10 | 199B4.000 | 16V Multijet | 63 | 86 | 1248 |
| Punto | Punto | 1.3 | Diesel | 2012 03 | 199B4.000 | Multijet | 62 | 84 | 1248 |
| Punto | Punto Evo Van | 1.3 | Diesel | 2012 03 | 199B4.000 | Multijet | 62 | 84 | 1248 |
| Punto | Granfrom Punto | 1.3 | Diesel | 2010 04 | 223A9.000 | Multijet | 62 | 84 | 1248 |
| Punto | Punto | 1.3 | Diesel | 2016 05 | 955B2.000 | Multijet | 66 | 90 | 1248 |
| Punto | Punto Evo | 1.3 | Diesel | 2009 10 | 223A9.000 | 16V Multijet | 63 | 86 | 1248 |
| Punto | Punto Evo | 1.3 | Diesel | 2009 10 | 199B4.000 | 16V Multijet | 63 | 86 | 1248 |
| Punto | Punto | 1.3 | Diesel | 2012 03 | 199B4.000 | Multijet | 62 | 84 | 1248 |
| Punto | Punto Evo Van | 1.3 | Diesel | 2012 03 | 199B4.000 | Multijet | 62 | 84 | 1248 |
