Alternateur remplace 46407649 / 63321292 / DRA0788
Alternateur remplace 46407649 / 63321292 / DRA0788
Alternateur remplace 46407649 / 63321292 / DRA0788
Previous
Next
Alternateur remplace 46407649 / 63321292 / DRA0788
Alternateur remplace 46407649 / 63321292 / DRA0788
Alternateur remplace 46407649 / 63321292 / DRA0788

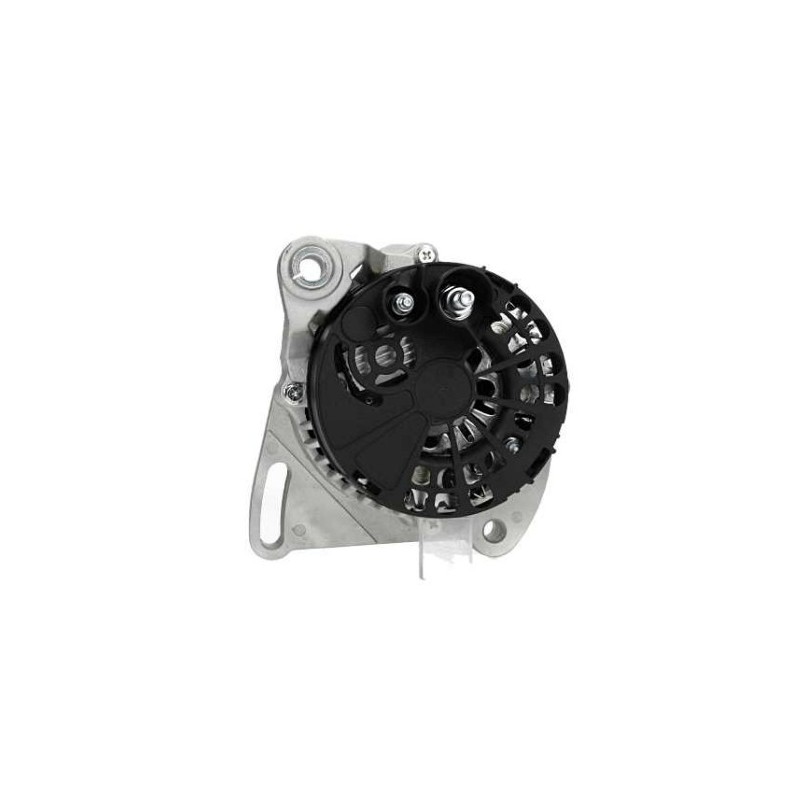

Alternator replacing 46407649 / 63321292 / DRA0788

w115672

12090135 EuroTec
20110148 Prestolite
218129852 DRI
283708 Elstock
46407649 Fiat
46430525 Fiat
46769376 Fiat
505513085 PSH
5895037 Fiat
63320501 Magneti Marelli
63321292 Magneti Marelli
63321601 Magneti Marelli
63321790 Magneti Marelli
930788 EDR
CA2063IR HC
Read more
€98.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 14
Amp 85

Catalogue information
Pulley SP
Fan IF
Regulator type IR

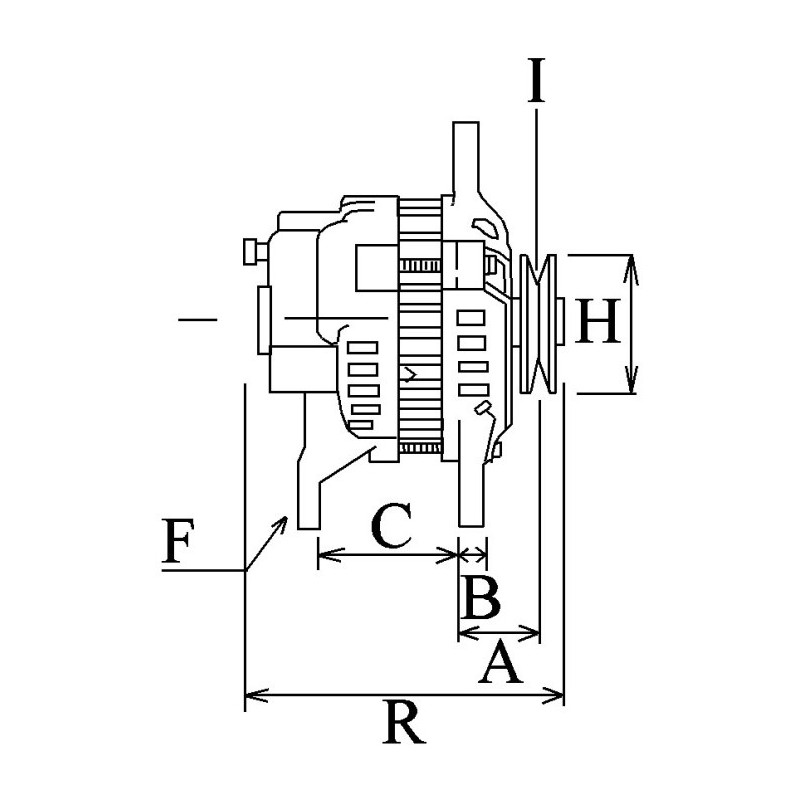

Physical information
A Pulley dist. 54.00
B Width/holder arm 32.00
D Bracket hole 10.40
E Belt. adj. brackethole pos. 17
E Belt. adj. brackethole pos. 2 3
G Belt. adj. bracket hole 11.50
G Belt. adj. bracket hole 2 10.50
H Pulley dia. 60.00
I Grooves/pulley 4
J Radius 85.00
J Radius 2 94.00
J Radius 3 78.00
K B+ M8
K Position/B+ in min. 6
N Rotation CW
R Total length mm 185.00

generic brand

replacing

115672 Cargo
12090135 EuroTec
20110148 Prestolite
218129852 DRI
283708 Elstock
46407649 Fiat
46430525 Fiat
46769376 Fiat
505513085 PSH
5895037 Fiat
63320501 Magneti Marelli
63321292 Magneti Marelli
63321601 Magneti Marelli
63321790 Magneti Marelli
930788 EDR
CA2063IR HC
CA890IR HC
DAN523 Denso
DRA0788 Remy
DRA3353 Remy
LRA02757 Lucas
LRA2757 Lucas
LRB00148 Lucas
MAN797 Magneti Marelli
RNL63341600 RNL

Fits

Brand Model Type Year
FIAT Palio 1.2 [188A4.000] 07.1997-08.2002
FIAT Palio 1.2 [178B5.000] 04.1996-02.2004
FIAT Palio 1.2 [178B7.045] 07.1997-08.2002
FIAT Doblo 1.2 [223A5.000] 03.2001-01.2004
FIAT Palio 1.2 [178C4.066] 07.1997-08.2002
FIAT Punto 1.2 [176A8.000] 10.1993-09.1999
FIAT Palio 1.2 [178E2.000] 06.1999-10.2000
