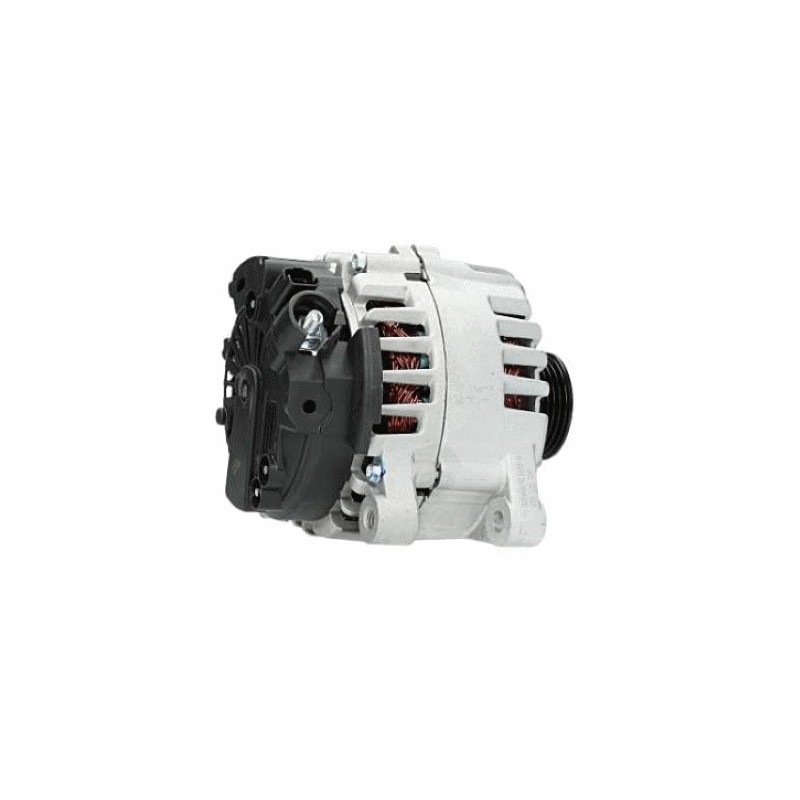

Alternator replacing VALEO TG15C023 / SG15S031 / 2542839 / 2542705

Information:

Voltage 14

Amp 150

D = Bracket hole 10.40

G = Belt. adj. bracket hole 10.20

B = Width/holder arm 21.50

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 45.40

H = Pulley dia. 54.20

A = Pulley dist. 42.00

Grooves/pulley 6

J = Radius 91.00

J = Radius 91.00

Position B + M8

Rotation Cr

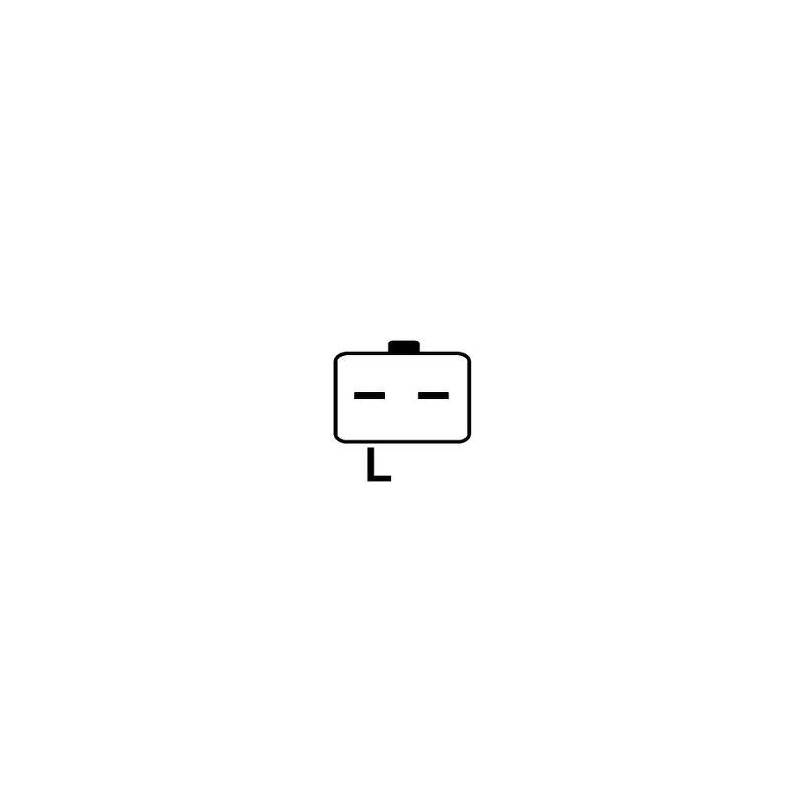

Plug no. 1 PL55

Fan If

Pulley Serpentine Pulley

R = Total length mm 170.00

generic brand

= BOSCH 0986080110

= CITROEN 5702A7 / 5702-A7 / 5702C6 / 5702-C6 / 5702F3 / 5702-F3 / 5702H4 / 5702-H4 / 5702K6  5702-K6 / 57056P / 5705-6P / 5705AC / 5705-AC / 5705AL / 5705-AL / 5705ES / 5705-ES / 5705EW  5705-EW / 5705HC / 5705-HC / 5705NE / 5705-NE

= DELCO REMY DRA4214 / DRA4288

= FIAT / LANCIA 9639396480 / 9646066880

= PEUGEOT 9644529680 / 9650582080 / 5702A6 / 5702-A6 / 5702C5 / 5702-C5 / 5702H4 / 5702-H4 / 57056P / 5705-6P / 57058G / 5705-8G / 5705AC / 5705-AC / 5705AL / 5705-AL / 5705EW / 5705-EW  5705HC / 5705-HC / 5705NE / 5705-NE

= VALEO 2542705 / 2542839 / 439492 / 746043 / 746843 / SG15S031 / TG15C023

                              NO CORE EXCHANGE NEEDED

                                                 TWO YEARS WARRANTY
