w113755

Alternator NEW  for CITROEN, FIAT, LANCIA, PEUGEOT,
SUZUKI

= BOSCH 0124525034 / 0986047360

= VALEO SG15S017 / A14VI40 / 2543527 /2542925A / 2542925 / 2542704 / 2542557 / 2542472 / 2542472A /2542557A / 437436 / 437457 / 437472 / 439477 / TG15C156



Read more
€109.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 150

D = Bracket hole 10.70

G = Belt. adj. bracket hole 10.20

B = Width/holder arm 21.00

E = Belt. adj. brackethole pos. 13

C = Mount. bracket dist 45.10

H = Pulley dia. 54.20

A = Pulley dist. 43.00

Grooves/pulley 6

J =  Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

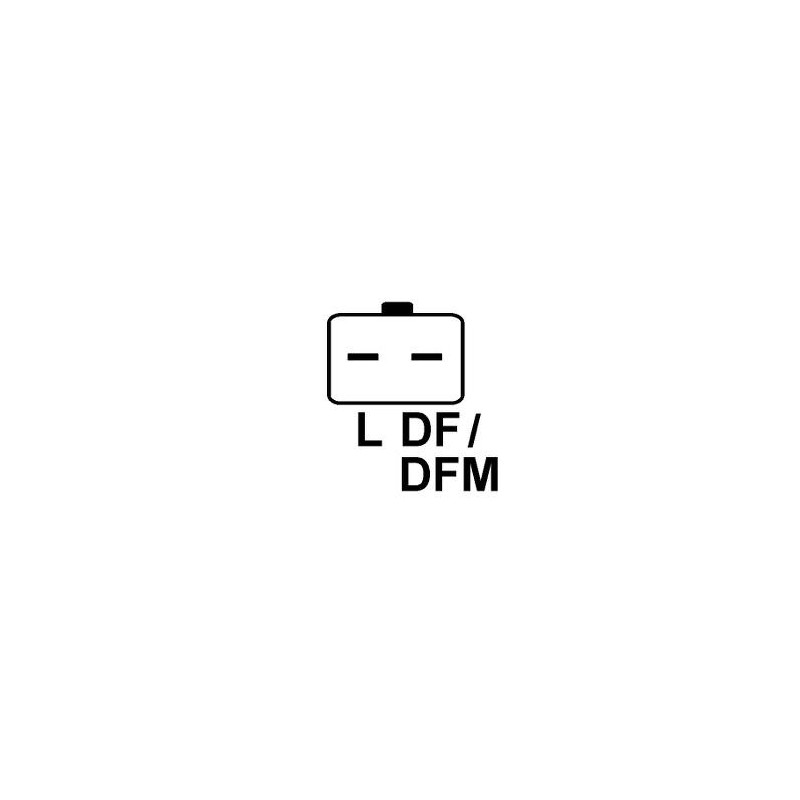

Plug no. 1 PL72

Fan If

Pulley Serpentine Pulley

Total length mm 175.00

Generic brand

replacing

0124525034 BOSCH DRA0191 DELCO
0986047360 BOSCH DRA4197 DELCO
104210-3170 DENSO DRA4214 DELCO
104210-3171 DENSO EAA-221596 EAA
104210-3240 DENSO EAA-222438 EAA
104210-4270 DENSO GA439503-A GPARTS
11.1674 LAUBER IA1435 ISKRA / LETRIKA
113755 CARGO LRA02228 LUCAS
2015290 SANDO LRA2228 LUCAS
20179092BN REAL MG 66 MAHLE
20179092OE REAL PRAL189 3EFFE
210538 ERA PRAL189B 3EFFE
225.520.150 PSH PRAL189V 3EFFE
225.526.150 PSH RAA15325 DELCO
23227N WAI / TRANSPO SA558 SOVEREIGN
2542472 VALEO SB140 SOVEREIGN
2542472A VALEO SG15S017 VALEO
2542557 VALEO TG15C022 VALEO
2542557A VALEO TG15C054 VALEO
2542704 VALEO TG15C119 VALEO
2542704A VALEO TG15c054 VALEO
2542925 VALEO UD01436A AS-PL
2542925A VALEO UNIT BOM 290-5425 WAI / TRANSPO
2543527 VALEO WA15208 DELCO
27060-YU020 TOYOTA 210612 ERA
27060-YV020 TOYOTA ANM36434X ANDEL
28-4702 ELSTOCK ALT1483 ELECTROLOG
301674RI KUHNER STA0315R BOVEZ
301674RIV KUHNER ALT119 ROLLCO
301850RI KUHNER ALT153 ROLLCO
301850RIV KUHNER 31400-73J00-000 SUZUKI
31400-73J00 SUZUKI 3140073J00000 SUZUKI
32047360 HERTH+BUSS 5702-K6 PEUGEOT
437436 VALEO 5702ES PEUGEOT
437472 VALEO 5702H4 PEUGEOT
437575 VALEO 5702K6 PEUGEOT
439503 VALEO 9640088280 PEUGEOT
4702 CEVAM 9644529680 PEUGEOT
56824 EAI 96460668 PEUGEOT
5702A6 PEUGEOT 9646066880 FIAT
5702A7 PEUGEOT 9646066880 PEUGEOT
5702C5 PEUGEOT 9648477580 PEUGEOT
5702C6 PEUGEOT 9650582080 PEUGEOT
5702F3 PEUGEOT K9639396480 FIAT
57056P PEUGEOT K9646066880 FIAT
57058G PEUGEOT
5705AC PEUGEOT
5705AL PEUGEOT
5705ES PEUGEOT
5705EW PEUGEOT
5705HC PEUGEOT
5705NE PEUGEOT
89213167 POWERMAX
8EL011710-661 HELLA
8EL738003-001 HELLA
9090243 FRIESEN
9213167 POWERMAX
9639396480 FIAT
9640623580 PEUGEOT
9640628880 PEUGEOT
9646049980 PEUGEOT
96460654 PEUGEOT
9646068880 PEUGEOT
9646476280 PEUGEOT
9646477580 PEUGEOT
A0268 AS-PL
A14VI40 VALEO
AAN8119 ISKRA / LETRIKA
AEC1674 AUTOELECTRO
ALT14136 WOODAUTO
ALT171100 SIOM
ALT172900 SIOM
ALT172900A SIOM
ALT172900R SIOM
ALT371050 SIOM
ALT6630 SIOM
ALT7950 SIOM
ALTE878 3EFFE
ALTF040 3EFFE
ALTL189 3EFFE
ALTL189B 3EFFE
ALTL189NE 3EFFE
ALTL189V 3EFFE
CA1674IR HC PARTS
CAL15290AS CASCO
CAL15290GS CASCO
CGB-14197 AINDE
