w111687

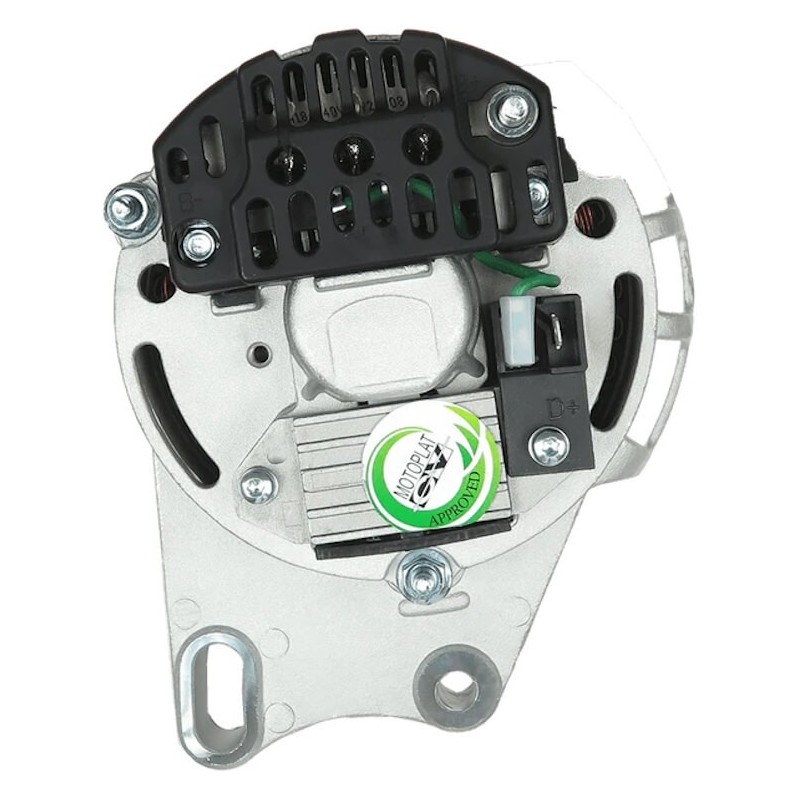

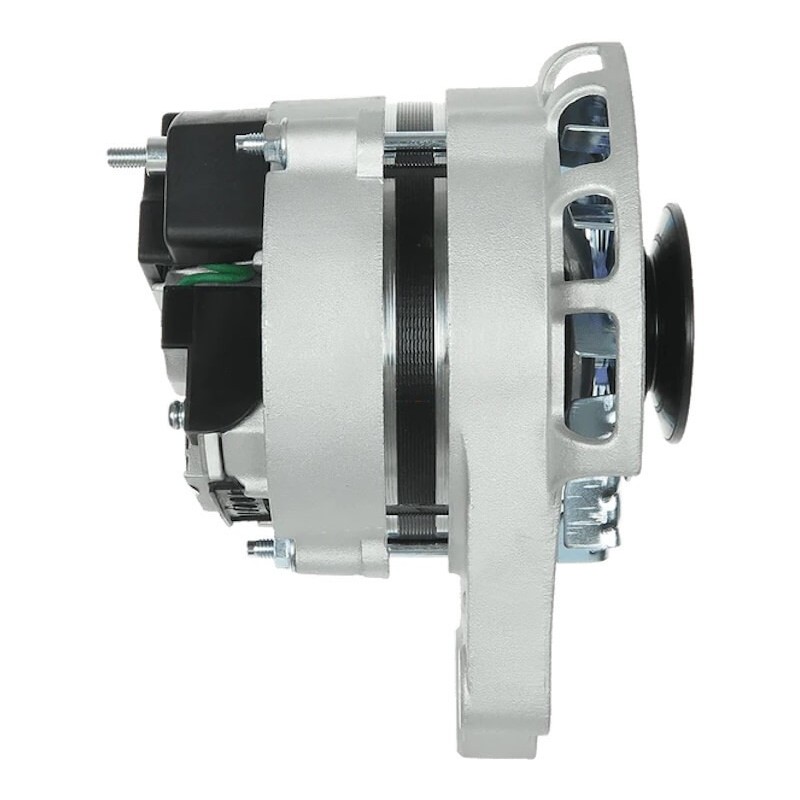

Alternator NEW for FIAT / LANCIA

= BOSCH 0986039501

= DELCO REMY 19025078 / DRA9501N / DRA9501

= Elstock 28-1832

= FIAT 46472225 / 77110890 / 7711092 / 7704356 / 46231650 / 7693374

= ISKRA IA0355 / AAK4174 / 11.201.355

Read more
€89.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 55

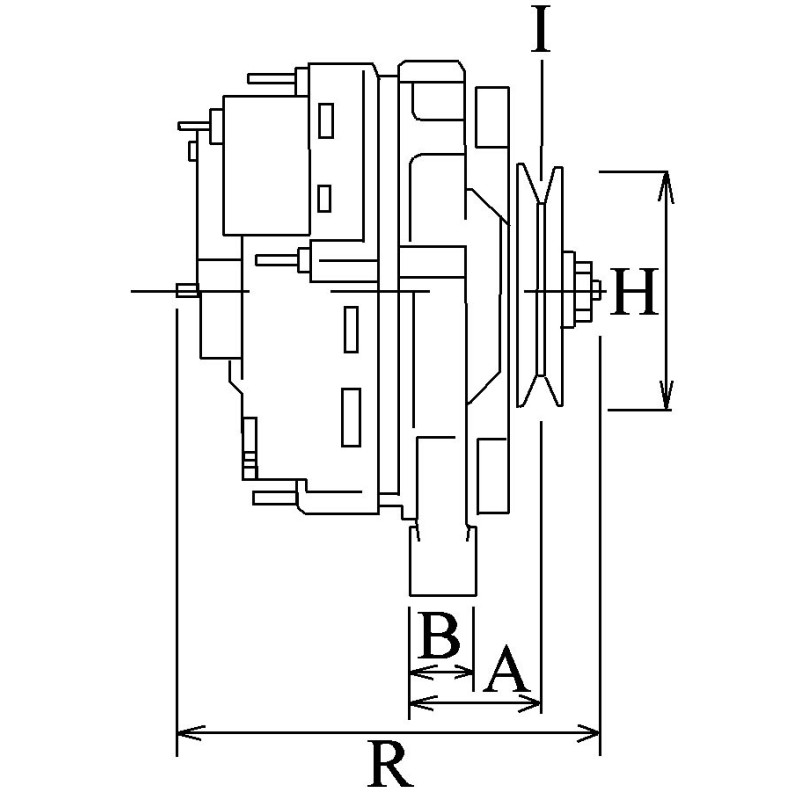

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 23.50

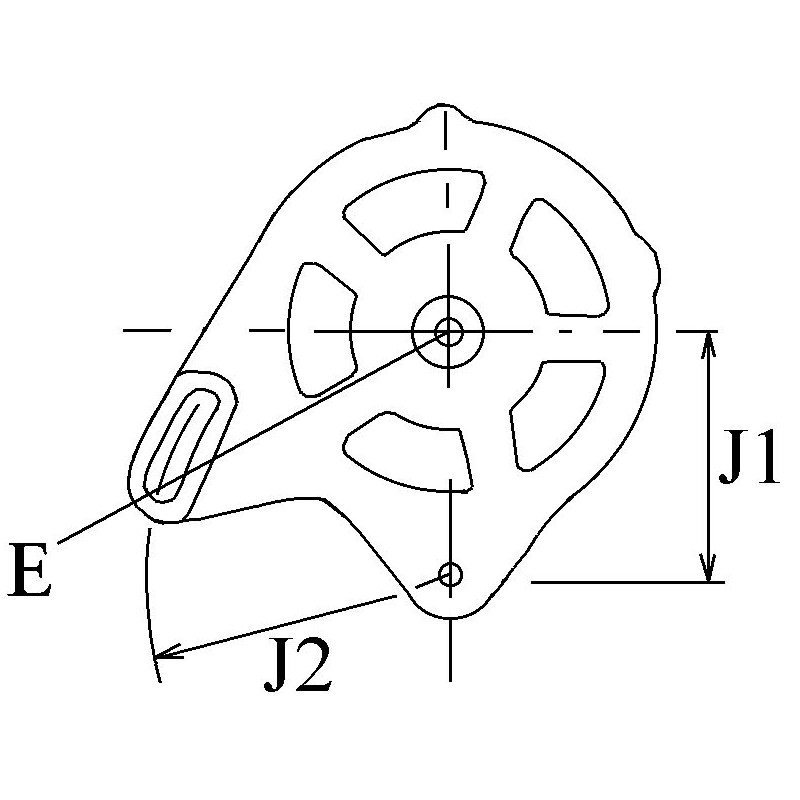

E = Belt. adj. brackethole pos. 24

H = Pulley dia. 70.00

A = , Pulley dist. 53.00

Grooves/pulley 1

J = Radius 101.50

J = Radius 60.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 174.00

generic brand

replacing

063321165010 MAGNETI MARELLI 8EL731727-001 HELLA
063730893010 MAGNETI MARELLI 943321165 MAGNETI MARELLI
0986039501 BOSCH 943321165010 MAGNETI MARELLI
11.201.355 ISKRA / LETRIKA 943321171010 MAGNETI MARELLI
111687 CARGO 944390395010 MAGNETI MARELLI
20104011BN REAL A4047 AS-PL
20104011OE REAL AAK4174 ISKRA / LETRIKA
20110188 PRESTOLITE AEA1288 AUTOELECTRO
2021119.1 SANDO AG0183 GHIBAUDI
2030110.0 SANDO ALE0893 KRAUF
2030110.1 SANDO ALT1090 SIOM
210023 ERA ALT12050 WOODAUTO
21188N WAI / TRANSPO ALT321120 SIOM
272.020.0 ELMOT ALTL289 3EFFE
28-1832 ELSTOCK ALTL692 3EFFE
293.020.0 ELMOT CA893IR HC PARTS
295.020.0 ELMOT CAL21119 CASCO
30307RI KUHNER CAL21119AS CASCO
30893RI KUHNER CAL21119ES CASCO
437370 VALEO CAL21119GS CASCO
4541 CEVAM CAL21119OS CASCO
46231650 FIAT CAL21119RS CASCO
505.012.055 PSH CAL30110AS CASCO
56323 EAI CAL30110GS CASCO
63320094 MAGNETI MARELLI DA0611 DELCO
63321165 MAGNETI MARELLI DAN618 DENSO
63321454 MAGNETI MARELLI DRA9501 DELCO
63341454 MAGNETI MARELLI EAA-221464 EAA
71721180 FIAT IA0355 ISKRA / LETRIKA
72735607 MAHLE LRB00188 LUCAS
746064 VALEO LRB188 LUCAS
7704356 FIAT MAR329 MAGNETI MARELLI
7711092 FIAT MAR382 MAGNETI MARELLI
77110920 FIAT MG 608 MAHLE
89212601 POWERMAX MG608 MAHLE
8EL012427-471 HELLA MRA39501 MAGNETI MARELLI
A12ML0013A2 SIDAT RNL3950 RNL
A12MA1190A2 SIDAT SA219 SOVEREIGN
ANM31721X ANDEL SA540 SOVEREIGN
5530036 MEAT & DORIA 210225 ERA
ALT7823 ELECTROLOG
10588735 RHIAG

Fits :

Brand Model Typ Year
FIAT Panda 750 Cat 01.1995-10.2003
FIAT Panda 900 [1170A1.046] 04.1992-12.1996
FIAT Seicento 0.9 [1170A1.046] 11.1997-12.2008
FIAT 600 0.9 [1170A1.046] 11.1997-12.2008
FIAT Cinquecento 0.9 [170A1.000] 07.1991-12.1993
FIAT Cinquecento 0.9 i.e. [170A1.046] 07.1991-09.1994
FIAT Cinquecento 0.9 i.e. S [1170A1.000] 07.1991-07.1999
FIAT Cinquecento 0.9 i.e. S [1170A1.046] 07.1991-07.1999
