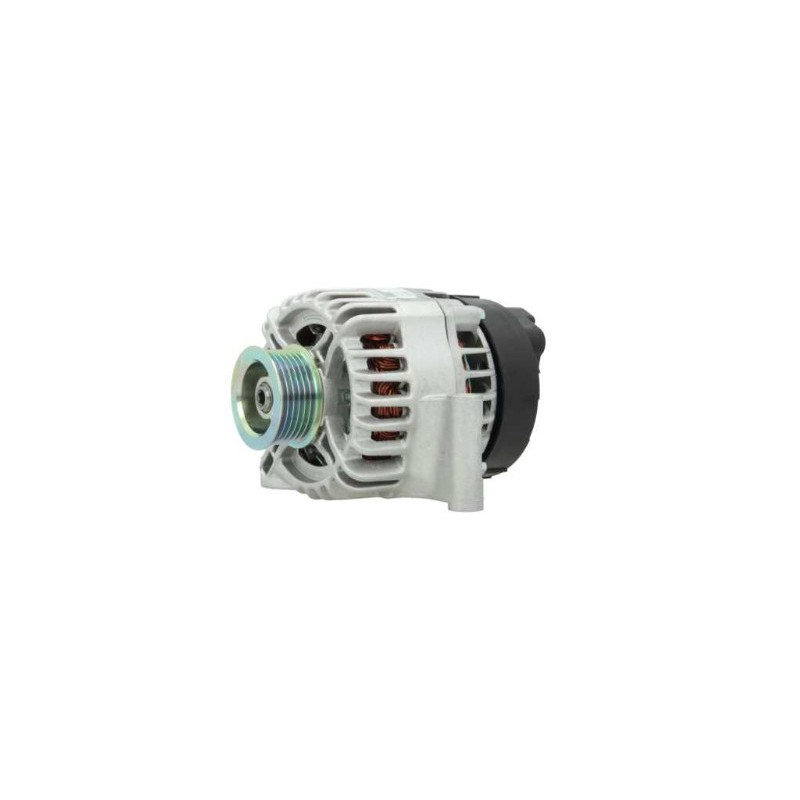

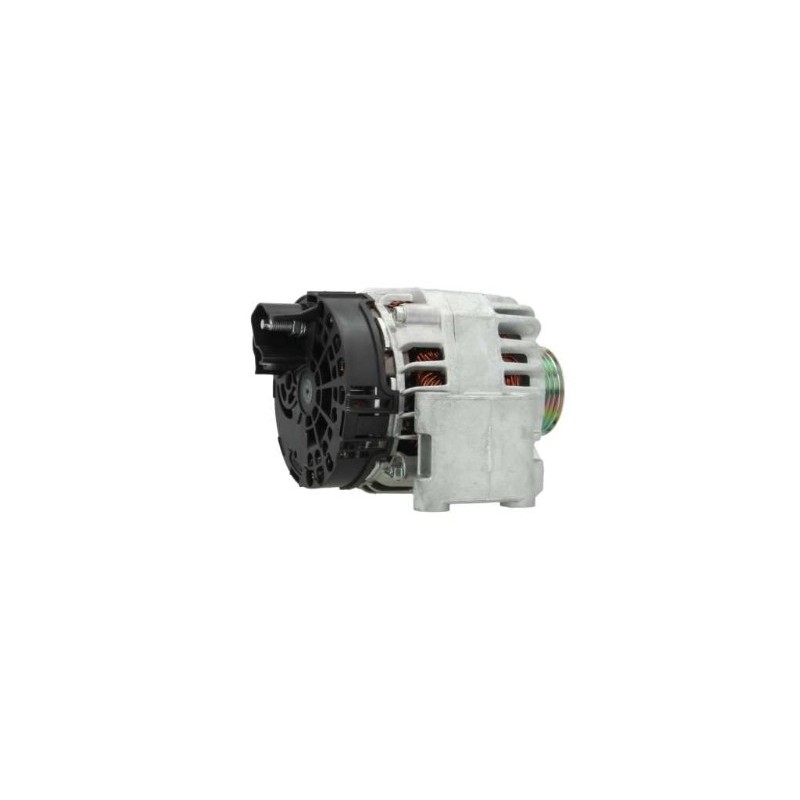

Alternator NEW replacing DENSO 101210-1271 / 101210-1270 / FIAT 51792276 / 51805804
Alternator NEW replacing :
DENSO 101210-1271 / 101210-1270
FIAT 51792276 / 51805804 / 51810284 / 51854907 / 51944877
MAGNETI MARELLI 63377025
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 105 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.30 |
| G | Belt. adj. bracket hole | 9.30 |
| B | Width/holder arm | 64.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 55.00 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 41.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 77.00 |
| j | Radius 2 | 77.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 185.00 |
Replacing | |
|---|---|
| 101210-1270 | DENSO |
| 101210-1271 | DENSO |
| 51805804 | FIAT |
| 51810284 | FIAT |
| 51854906 | FIAT |
| 51854907 | FIAT |
| 51880172 | FIAT |
| 52003512 | FIAT |
| 63377025 | MAGNETI MARELLI |
Brand générique
Mounted on :
ALFA ROMEO - Europe (2009-2016)
FIAT - Europe (2003-2016)
OPEL - Europe (2012-2012)
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
