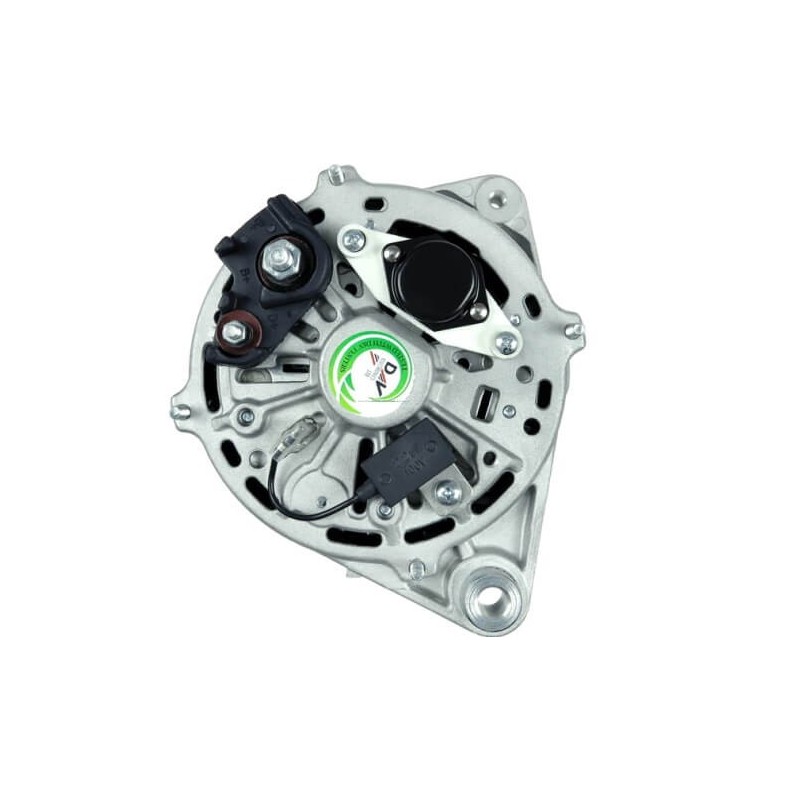

Alternator replacing BOSCH 0120468141 / 0120468123 / 0120468108

Information:

Voltage 14

Amp 115

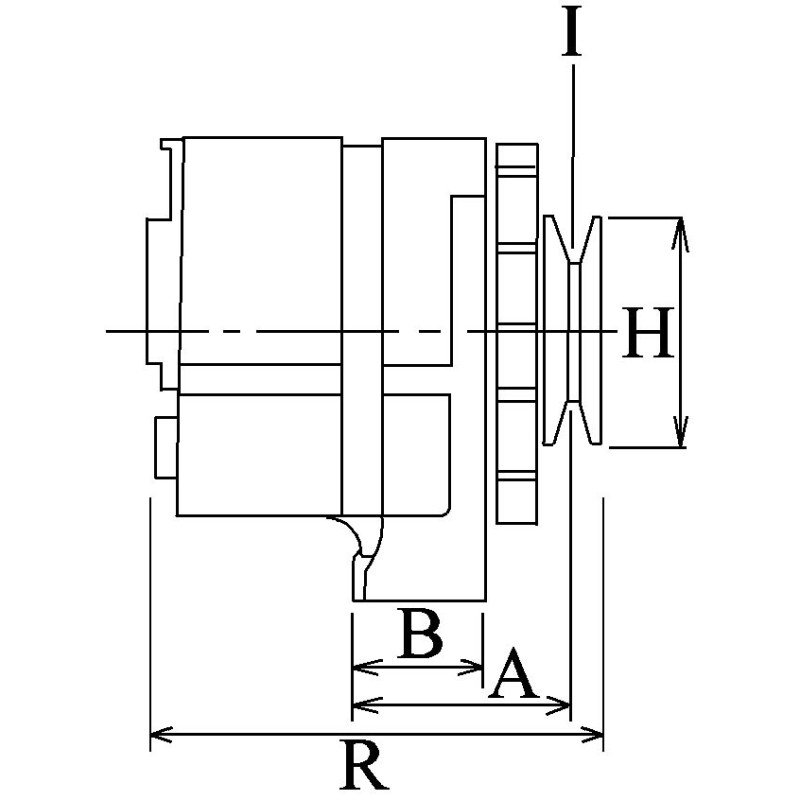

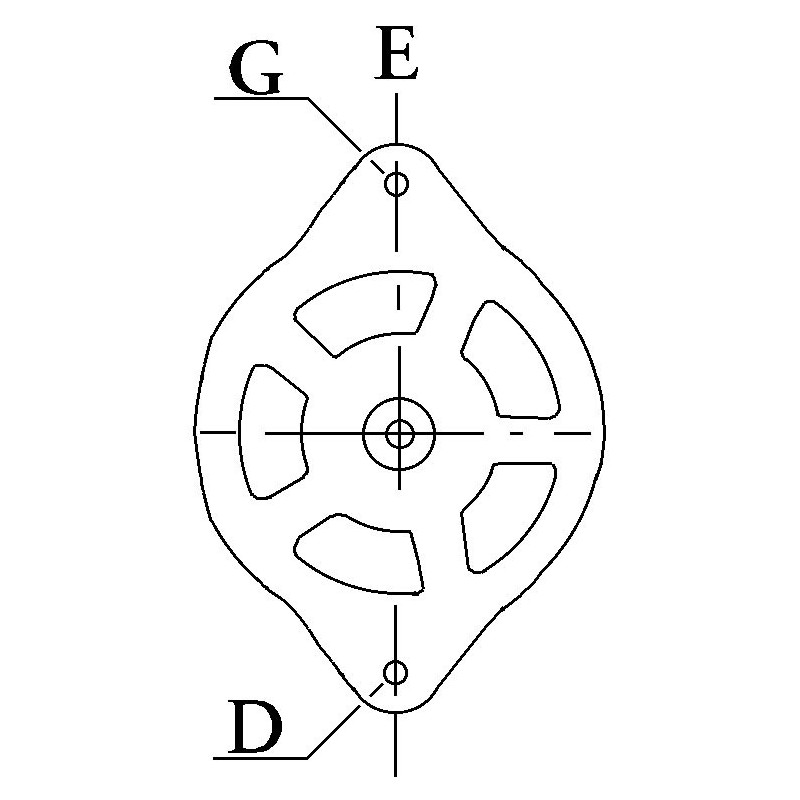

D = Bracket hole 10.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 83.00

H = Pulley dia. 68.50

A = Pulley dist. 31.00

Grooves/pulley 1

J = Radius 92.00

J = Radius 96.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 179.00

generic brand

= BOSCH B120501043 / 0120468141 / 0120468123 / 0120468108 / 0120468070
0120468052 / 0120468044 / 0120468024 / 0120468023 / 0120468022 / 0120468020

0120468019 / 0120468017

= FIAT 7634026 / 7689341 / 7713061

= VOLKSWAGEN 034903015f / 034903016 / 034903016h / 034903017b / 034903017BX
046903015d / 051903015d / 054903015l / 077903015 / 077903015c / 077903015g

                              NO CORE EXCHANGE NEEDED

                                                 TWO YEARS WARRANTY
