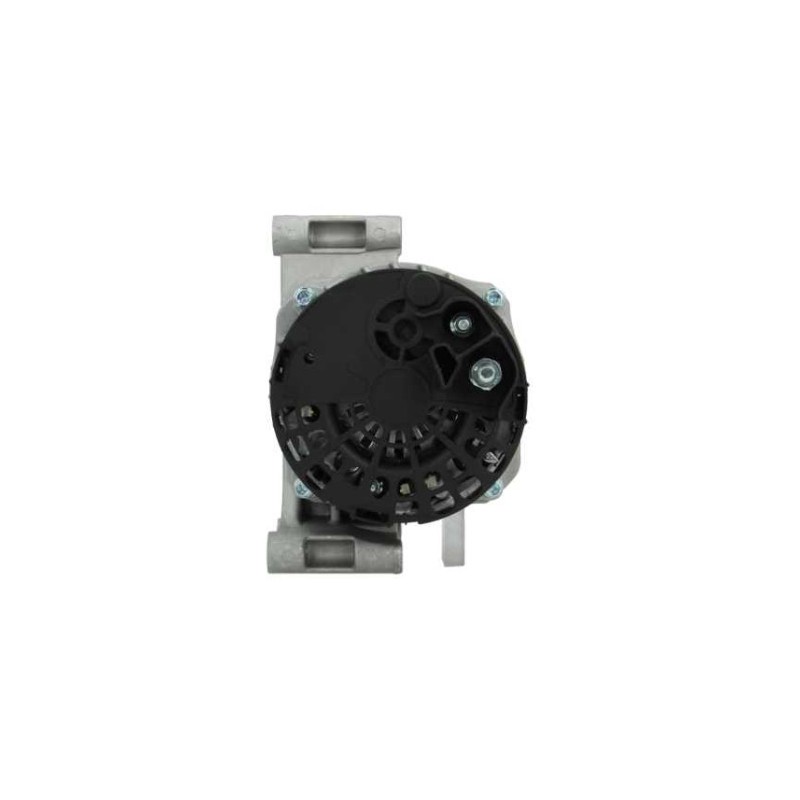

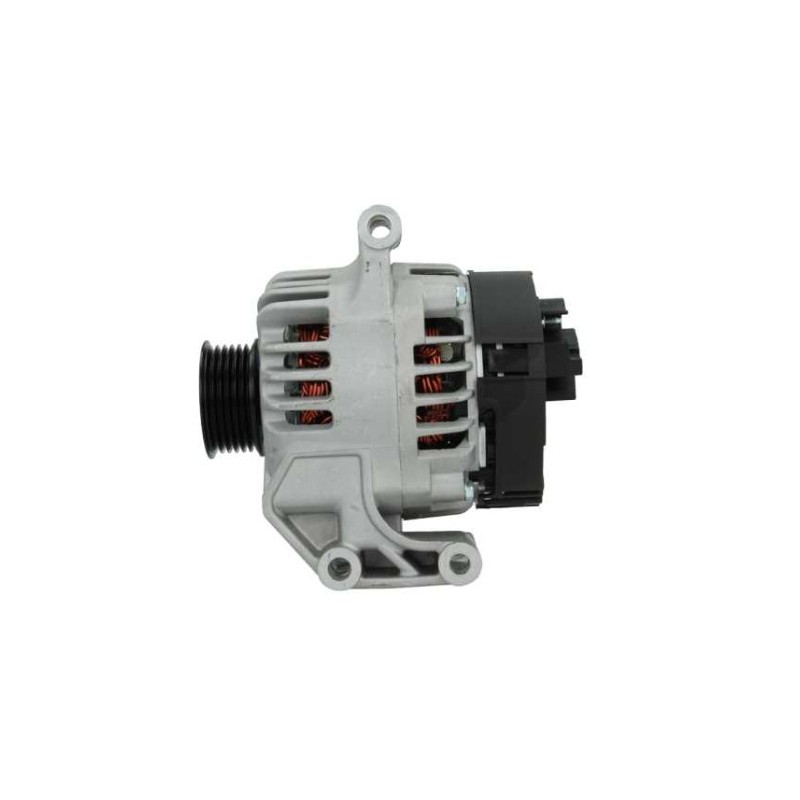

Alternator replacing 2606472A / 51792276 / 519141877 / TG9S060
Alternator replacing :
DENSO101210-1271, FIAT 51792276, 51805804, 51810284, 51854907, 51944877, MAGNETI MARELLI 63377025, OPEL 1204443, VALEO TG9S060
NO CORE EXCHANGE NEEDED
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 90 | |
Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 41.50 |
| B | Width/holder arm | 64.00 |
| C | Mount. bracket dist | 55.00 |
| D | Bracket hole | 10.50 |
| D | Trou from fixation support 2 | 9.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 54.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 77.00 |
| J | Radius 2 | 77.00 |

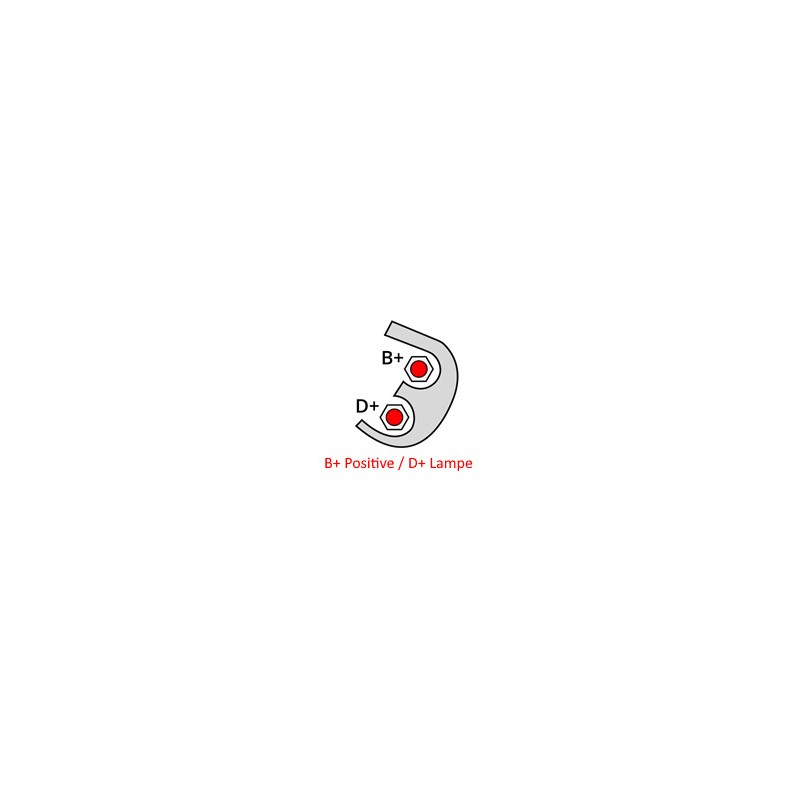

| K | Position B + | M8 |
| K | B+ position en min. | 14 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL_NA |
| R | Total length mm | 176.50 |
Replacing | |
|---|---|
| 2606472A | VALEO |
| 51792276 | FIAT |
| 51944877 | FIAT |
| TG9S060 | VALEO |
generic brand
| 1012101220 | DENSO |
| 1012101221 | DENSO |
| 1012101271 | DENSO |
| 1012101690 | DENSO |
| 12090399 | EuroTec |
| 12090776 | EuroTec |
| 20097N | WAI |
| 2543483 | VALEO |
| 2606472 | VALEO |
| 285928 | Elstock |
| 286503 | Elstock |
| 440297 | VALEO |
| 505567105 | PSH |
| 5180284 | FIAT |
| 51810284 | ALFA ROMEO |
| 5184907 | FIAT |
| 51854907 | FIAT |
| 51880172 | FIAT |
| 5705NY | PSA |
| 931178 | EDR |
| 9S5110346EA | FORD |
| DAN1001 | DENSO |
| DRA1178 | DELCO REMY |
| LRA03391 | LUCAS |
| MAN7025 | MAGNETI MARELLI |
| TG9S060 | VALEO |
Mounted on :
FIAT
| Doblo | Doblo | 1.3 | Diesel | 2005 10 | - | 199A2.000 | Multijet | 55 | 75 | Boîte/Trucksnette | 1248 | 4 | 223 | |
| Fiorino | Fiorino | 1.3 | Diesel | 2007 11 | - | 199A9.000 | Multijet | 55 | 75 | Boîte/Trucksnette | 1248 | 4 | 225 | |
| Fiorino | Fiorino | 1.3 | Diesel | 2007 11 | - | 199A2.000 | Multijet | 55 | 75 | Boîte/Trucksnette | 1248 | 4 | 225 | |
| Fiorino | Fiorino | 1.3 | Diesel | 2008 02 | - | 199A2.000 | Multijet | 55 | 75 | MPV | QUBO | 1248 | 4 | 300 |
| Panda | Panda | 1.3 | Diesel | 2012 02 | - | 199A9.000 | Multijet | 55 | 75 | Hayon | 1248 | 4 | 312 | |
| Panda | Panda Van | 1.2 | Diesel | 2012 06 | - | 199A9.000 | Multijet | 55 | 75 | Hayon | 4x4 | 1248 | 4 | 312 |
| Panda | Panda | 1.3 | Diesel | 2012 06 | - | 199A9.000 | Multijet | 55 | 75 | Hayon | 4x4 | 1248 | 4 | 312 |
| Panda | Panda | 1.2 | Diesel | 2014 06 | - | 312A8.000 | Multijet | 59 | 80 | Hayon | 4x4 | 1248 | 4 | 312 |
| Panda | Panda Van | 1.2 | Diesel | 2012 02 | - | 199A9.000 | Multijet | 55 | 75 | Hayon | 1248 | 4 | 312 | |
| Punto | Punto | 1.3 | Diesel | 2012 03 | - | 199A9.000 | Multijet | 55 | 75 | Hayon | 1248 | 4 | 199 |
| Punto | Punto | 1.3 | Diesel | 2012 03 | - | 199A2.000 | Multijet | 55 | 75 | Hayon | 1248 | 4 | 199 |
