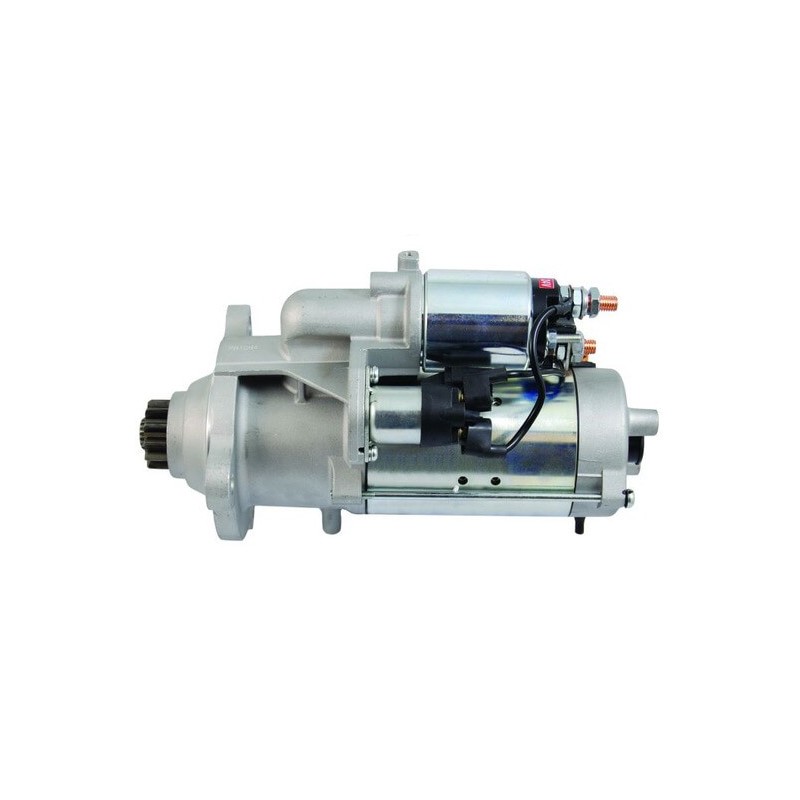

Starter replacing BOSCH 0001241005 / 0001241009 /0001241021
| 51261017220 | MAN | |
| 51262017195 | MAN | |
| 51262017220 | MAN | |
| 51262017228 | MAN | |
| 51262017239 | MAN | |
| 51262019220 | MAN | |
| 51262019239 | MAN | |
| 551513123 | PSH | |
| 671005124 | DRI | |
| 72442832 | Mahle | |
| 8111 | CEVAM | |
| 81262017199 | MAN | |
| 922640 | EDR | |
| A22640 | ATL | |
| AZF4875 | Mahle |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 5.5 | |

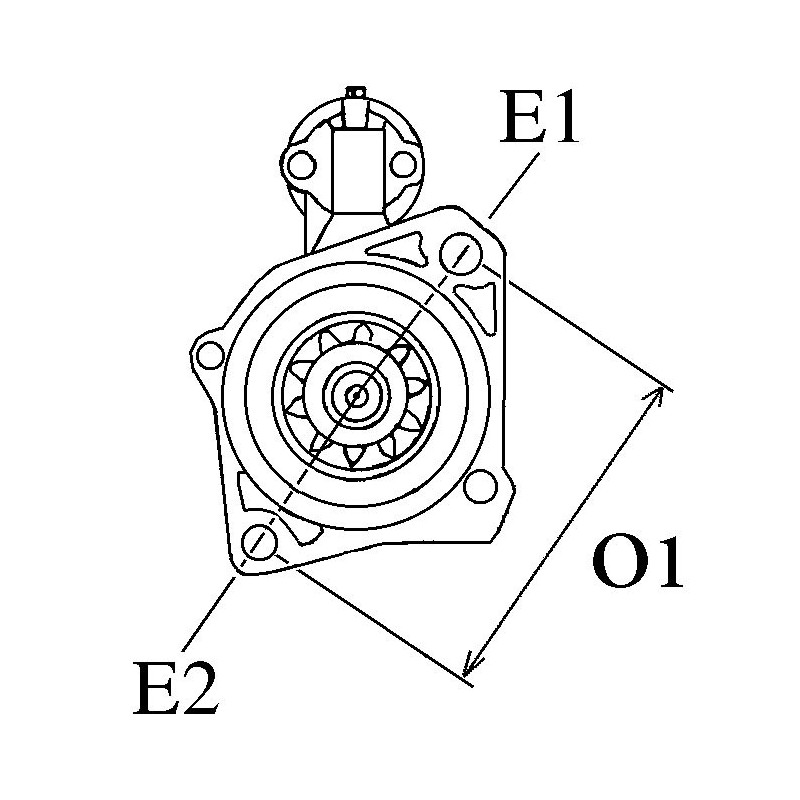

Physical Information | ||
|---|---|---|
| A | Mount flange | 92.00 |
| E | Mounting holes | 13.00 |
| E | Mounting holes 2 | 13.00 |
| E | Mounting holes 3 | 13.00 |
| B | Drive distance | 48.00 |
| F | Distance / Back | 255.00 |
| G | Distance / Front | 51.50 |
| H | Nbr of teeth | 12 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 126.50 |
| O | Distance 2 | 126.50 |
| O | Distance 3 | 126.50 |
| P | Rotation | Cr |
| R | Total length mm | 323.50 |
Replacing | |
|---|---|
| 0001241005 | BOSCH |
| 0001241009 | BOSCH |
| 0001241021 | BOSCH |
| 11.139.604 | ISKRA |
| 51.26201-7220 | MAN |
| 51.26201-7228 | MAN |
| 51.26201-7239 | MAN |
| 51.26201-9220 | MAN |
| 51.26201-9239 | MAN |
| 72442832 | ISKRA |
| AZF4875 | ISKRA |
| cs1583 | HC-PARTS |
Generic brand
for
| Brand | Model | Typ | Year |
| MAN | 40.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 41.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 26.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 41.530 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 35.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 35.530 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 33.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 32.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 24.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 32.530 12.8 | (TGA) | 01.2004-12.2004 |
| MAN | 37.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 37.530 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 18.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 24.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 26.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 28.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 33.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 18.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 28.530 12.8 | (TGA) | 01.2002-12.2006 |
