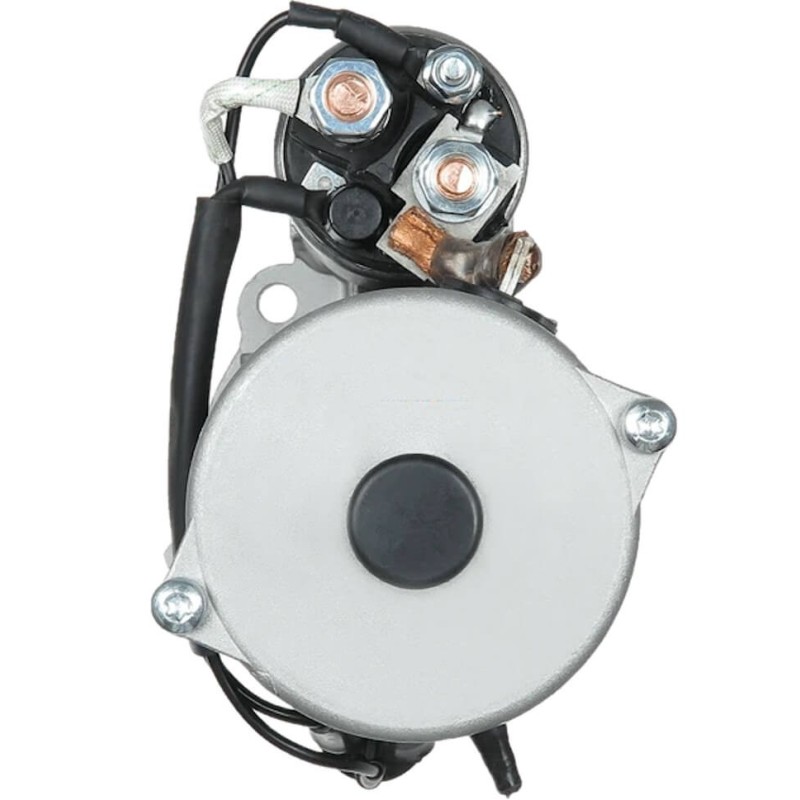

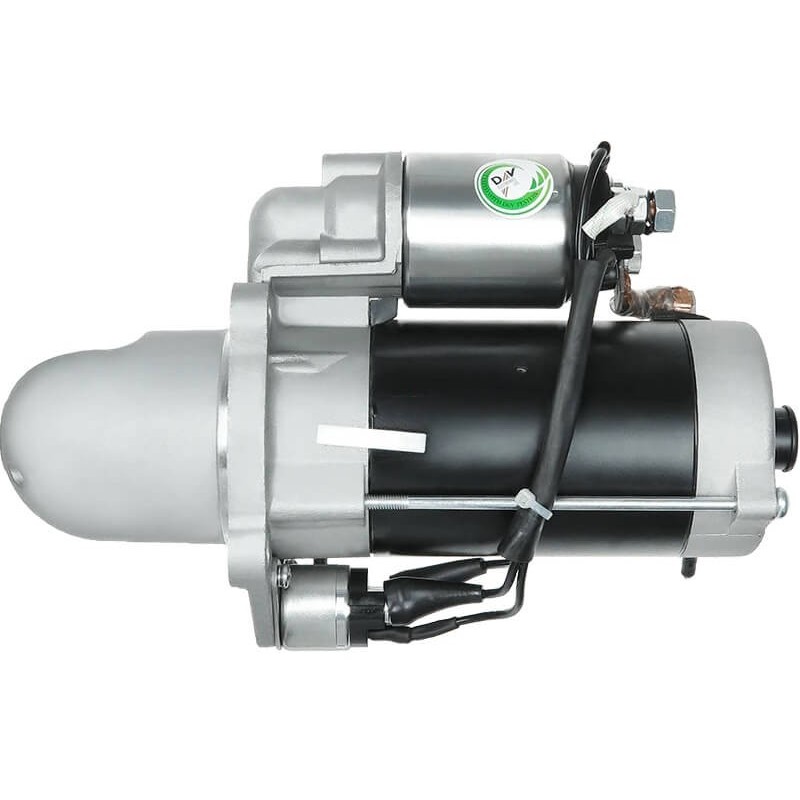

Starter replacing 0001230001 / 0001230027 / 0001262006 / 0041519301 / 0061512303
| 0061512301 | MERCEDES |
| 006151230180 | MERCEDES |
| 0061512303 | MERCEDES |
| 0986021340 | BOSCH |
| 114395 | CARGO |
| 120-20131 | ROBERT'S |
| 19070N | WAI / TRANSPO |
| 20401583BN | REAL |
| 20401583OE | REAL |
| 25-4119 | ELSTOCK |
| 254588 | KUHNER |
| 254588B | KUHNER |
| 260-23103 | DIXIE |
| 550.532.093 | PSH |
| 6010385.0 | SANDO |
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 3.0 | |
Catalogue information | ||
|---|---|---|
| Clutch type | Dry | |
| Drive type | Steel | |
Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 89.00 |
| I | B+ | M10 |
| No./mount. holes | 3 (0) | |
| B | Drive dist. | 49.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | 11.00 |
| E | Mount. hole 3 | 11.00 |
| F | Dist./back | 207.00 |
| G | Dist./front | 94.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 90.00 |
| O | Dist. 2 | 90.00 |
| O | Dist. 3 | 127.00 |
| R | Total length mm | 316.50 |
generic brand
replacing
| 0001230001 | BOSCH | EAA-121548 | EAA |
| 0001230027 | BOSCH | LRS02447 | LUCAS |
| 0001262006 | BOSCH | LRS2447 | LUCAS |
| 0041519301 | MERCEDES | MAV121690 | SIOM |
| 0061512301 | MERCEDES | MAV122270 | SIOM |
| 006151230180 | MERCEDES | STB4003 | KRAUF |
| 0061512303 | MERCEDES | STI4003 | KRAUF |
| 0986021340 | BOSCH | STR50410 | WOODAUTO |
| 114395 | CARGO | STRS877 | 3EFFE |
| 120-20131 | ROBERT'S | TS-6228 | DIXIE |
| 19070N | WAI / TRANSPO | UD16559S | AS-PL |
| 20401583BN | REAL | 958982 | MANITOU |
| 20401583OE | REAL | PRSS877 | 3EFFE |
| 25-4119 | ELSTOCK | 220857 | ERA |
| 254588 | KUHNER | S12BH0677A2 | SIDAT |
| 254588B | KUHNER | 332138 | LOGISTIK |
| 260-23103 | DIXIE | 5010516 | MEAT & DORIA |
| 550.532.093 | PSH | STR1449 | ELECTROLOG |
| 6010385.0 | SANDO | 00615123010080 | MERCEDES |
| 6010385.1 | SANDO | A00615123010080 | MERCEDES |
| 8105 | CEVAM | A006151230180 | MERCEDES |
| 88214746 | POWERMAX | BOS0001262006 | WOODAUTO |
| A0041519301 | MERCEDES | CST10385AS | CASCO |
| A0061512301 | MERCEDES | CST10385GS | CASCO |
| A0061512303 | MERCEDES |
Fits
| Brand | Model | Typ | Year |
| MERCEDES BENZ TRUCKS & BUSES | U 500 6.3 | [OM906.955] | 01/10/00 |
| MERCEDES BENZ TRUCKS & BUSES | U 500 6.3 | [OM906.967] | 01/10/00 |
