Starter replacing BOSCH BNG4/24CRS162 / 9000084018 / 0001416076

Information:

Voltage 24

KW 5.4

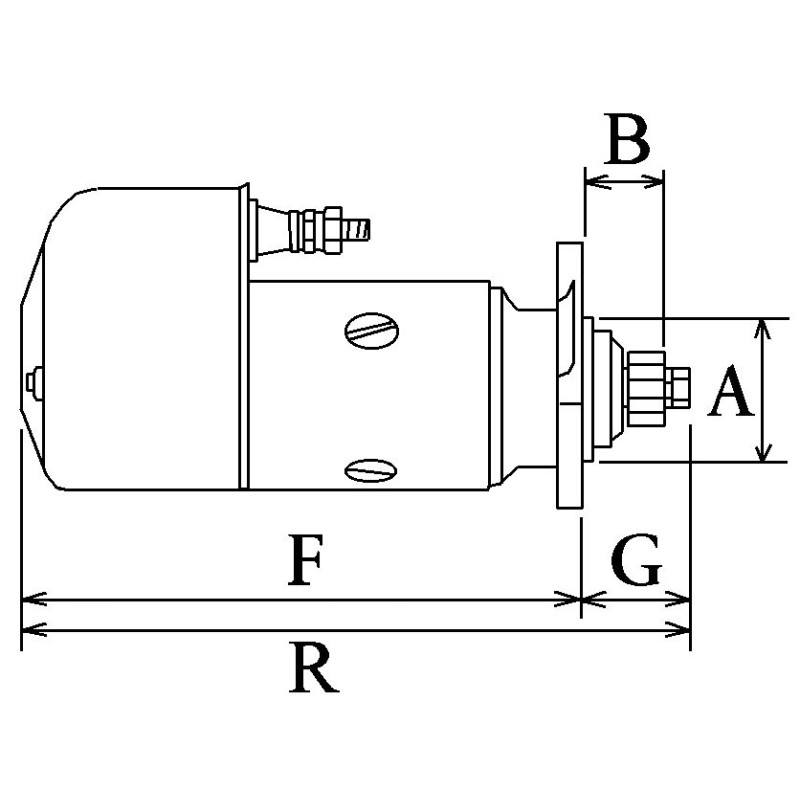

A = Mount flange 89.00

B = Drive distance 48.50

F = Distance / Back 322.50

G = Distance / Front 63.00

H = Nbr of teeth 11

B+ M10

B- M10

Gear type Dd

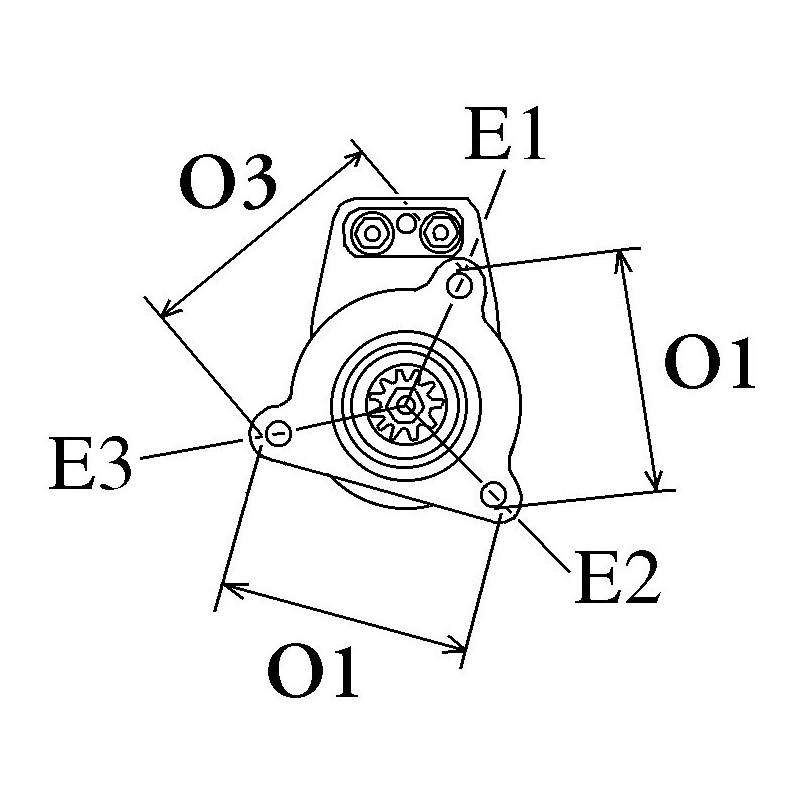

O = Distance 1 90.00

O = Distance 2 90.00

O = Distance 3 128.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 387.00

Oil sealed Oui

 marque générique

= BOSCH BNG4/24CRS162 / 9000084018 / 0001416076

0001416021 / 0001416009 / 0001416008

0001415016 / 0001415004 / 0001414008

0001411016 / 0001410044 / 0001402053

= Butec 860504 / 860121

= Elmot R23.11 / 6110000

= MAGNETON 9125250

= DELCO REMY 19024576 / 19024555 / 19024099

19024016 / 19024015 / 19024037

= MERCEDES-BENZ 0011512901 / A0011512901

= AVF im325 / im350 / im508 / im509 / im521

= Monark 81466003 / 81466009 / 81468009

= VOLVO 85000438 / 85000450 / 240504 / 465929 / 469414

= FIAT 61227993

= MAN 51.26201-7034 / 51.26201-7100 / 51.26201-9034

= RENAULT 5000270909

               NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY
