Starter replacing BOSCH 0001416052 / 0001416011 / 0001415017

w110582

New product

2 Items

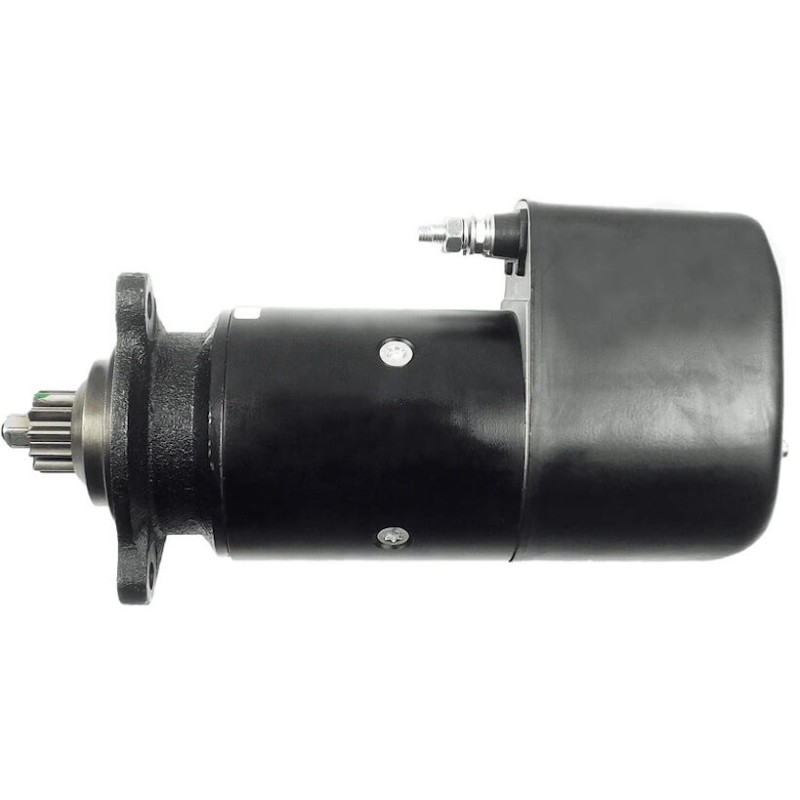

Starter for IVECO engine / truck / marine

= BOSCH 0001416052 / 0001416011 / 0001415017 / 0001410106

= Butec 860516 / 860125

= Elmot R23.06 / 6060000

= MAGNETON 9125480 / 9125270

= DELCO REMY 19024046 / 19024018

                            NO CORE EXCHANGE NEEDED



219,90 € Inc VAT

Add to wishlist

More info

Information:

Voltage 24

KW 5.4

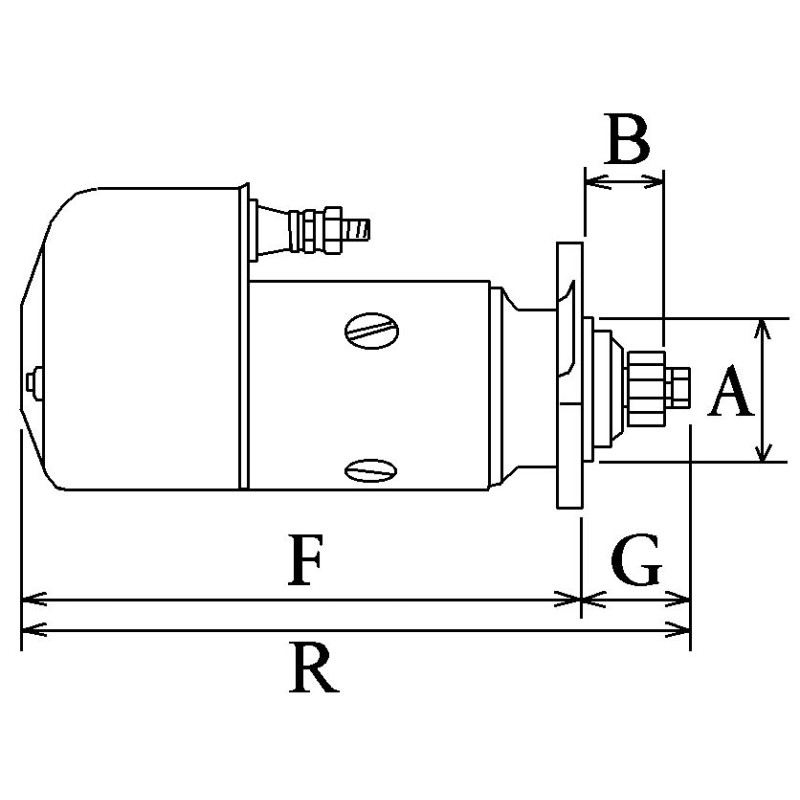

A = Mount flange 92.00

B = Drive distance 47.00

F = Distance / Back 324.50

G = Distance / Front 61.50

H = Nbr of teeth 11

B+ M10

B- M10

Gear type Dd

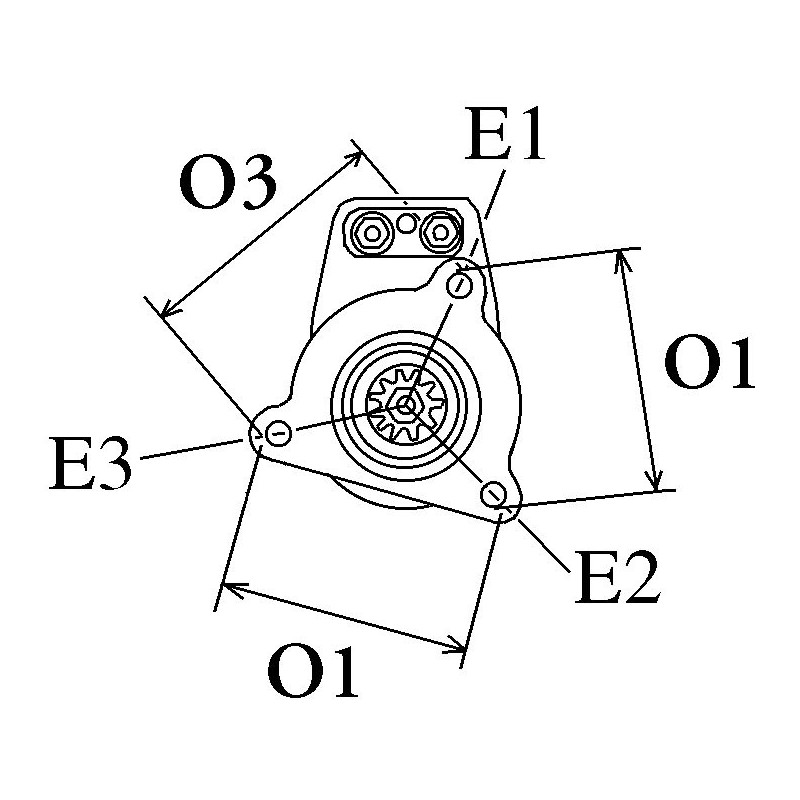

O = Distance 125.50

O = Distance 2 125.50

O=  Distance 3 125.50

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

generic brand

replacing

0001415017BOSCHCST10622ASCASCO
0001416011BOSCHCST10622ESCASCO
0001416052BOSCHCST10622RSCASCO
0986013420BOSCHCST10634ASCASCO
0986018420BOSCHCST10634ESCASCO
10502KUHNERCST10634GSCASCO
10502PKUHNERCST10634RSCASCO
110582CARGODRS3420DELCO
19784NWAI / TRANSPODRS8420DELCO
20401226BNREALEAA-121507EAA
20401226ELREALIM511AVF
20401436BNREALLRS00986LUCAS
20401436ELREALLRS986LUCAS
20401436RCREALMAV126340SIOM
22608EFELMAV1306SIOM
28.0502LAUBERMAV2070SIOM
2997384IVECOS0221AS-PL
33532EAISTR22057WOODAUTO
42498148IVECOSTRL3163EFFE
42498619IVECO220022ERA
45-1368ELSTOCK220220ERA
45-2459ELSTOCKS24BH0040A2SIDAT
455522VALEOS24BH0039A2SIDAT
4784745FIATANM15640XANDEL
4784747FIAT5110042MEAT & DORIA
6010622SANDO10825EFEL
6010634SANDOR20K1ELMOT
81466052MONARKPRSL3163EFFE
860516GBPRESTOLITESTR1644ELECTROLOG
8704CEVAM1516763RDAF
8813420FRIESEN2995116IVECO
88212396POWERMAX4784445FIAT
8EA726150-001HELLA611466642IVECO
AES9186AUTOELECTRO61583669FIAT
CGB-11552AINDEPTC-4040POWER TRUCK
CS502HC PARTS

Fits

BrandModelTypYear
IVECOM 165-24 9.6[8220.22.102]06.1982-09.1989
IVECOM 165-24 9.6[8220.22.102]06.1982-09.1986
IVECOM 165-24 9.6[8220.22.102]01.1985-12.1985
IVECOM 175-24 9.5[8460.21.002]09.1986-11.1992
IVECOM 175-24 9.5[8460.21.002]09.1986-07.1992
IVECOM 175-24 9.5[8460.21.010]09.1986-07.1992
IVECOM 175-24 9.5[8460.21.010]09.1986-11.1992
IVECO180 E 25 9.5[8460.41T]05.1999-11.2004
IVECO380 E 34 9.5[8460.41K.]11.1999-11.2004
IVECO380 E 34 9.5[8460.41K]01.1993-11.2004
IVECO190 E 38 9.5[8460.41LTCA]01.1993-02.2002
IVECO380 E 34 9.5[8460.41K]01.1993-07.2000
IVECO190 E 38 9.5[8460.41LTCA]01.1993-07.2000
IVECO260 E 30 9.5[8460.41C.TCA11.1999-11.2004
IVECO260 E 30 9.5[8460.41C]01.1993-11.2004
IVECO190-26 9.5[8460.21.102]09.1986-09.1994
IVECO260 E 30 9.5[8460.41C]01.1993-07.2000
IVECO190-26 9.5[8460.21.102]01.1990-12.1992
IVECO180 E 30 9.5[8460.41C.320]01.1992-12.1996
IVECO180 E 30 9.5[8460.41C.320]07.1992-12.1996
IVECO340 E 34 9.5[8460.41K.]11.1999-11.2004
IVECO190-32 9.5[8460.41.102]10.1988-01.1998
IVECO180 E 34 9.5[8460.41K.406]01.1992-12.1993
IVECO340 E 34 9.5[8460.41K]04.1992-07.2000
IVECO190-32 9.5[8460.41.102]01.1990-12.1992
IVECO180 E 34 9.5[8460.41K.406]04.1992-07.2000
IVECO340 E 34 9.5[8460.41K]01.1993-11.2004
IVECO180 E 38 9.5[8460.41L.5020]01.1992-12.1993
IVECO260 E 34 9.5[8460.41C.TCA11.1999-11.2004
IVECO180 E 38 9.5[8460.41L.5020]09.1992-12.1993
IVECO260 E 34 9.5[8460.41K.TCA]11.1999-11.2004
IVECO260 E 34 9.5[8460.41K]01.1993-11.2004
IVECO260 E 34 9.5[8460.41K]01.1993-07.2000
IVECO260 E 38 9.5[8460.41LTCA]01.1993-02.2002
IVECO260 E 38 9.5[8460.41N]01/01/94
IVECO400 E 34 9.5[8460.41K.406]01/01/92
IVECO400 E 34 9.5[8460.41K.406]01.1992-08.1998
IVECO400 E 34 9.5[8460.41K.406]04.1992-12.2000
IVECO400 E 34 9.5[8460.41K]01.1993-11.2004
IVECO400 E 34 9.5[8460.41K]01.1993-12.2000
IVECO440 E 34 9.5[8460.41K.406]01/01/92
IVECO190 E 30 9.5[8460.41C.320]01.1997-07.2002
IVECO440 E 34 9.5[8460.41K.406]04.1992-12.2000
IVECO190 E 30 9.5[8460.41C.320]01.1997-08.1998
IVECO440 E 34 9.5[8460.41K]01.1993-11.2004
IVECO190 E 30 9.5[8460.41C.]11.1999-11.2004
IVECO440 E 34 9.5[8460.41K]01.1994-07.2000
IVECO240 E 30 9.5[8460.41C.TCA]01/01/97
IVECO400 E 38 9.5[8460.41L.5020]01/01/92
IVECO190 E 30 9.5[8460.41C]01.1993-11.2004
IVECO190 E 30 9.5[8460.41C]01.1993-07.2000
IVECO240 E 34 9.5[8460.41K.TCA]09.1995-12.1996
IVECO400 E 38 9.5[8460.41L.5020]09.1992-11.2000
IVECO240 E 38 9.5[8460.41L.5020]01/01/92
IVECO400 E 38 9.5[8460.41L.5020]01.1993-02.2002
IVECO240 E 38 9.5[8460.41L.5020]09.1992-02.2002
IVECO400 E 38 9.5[8460.41LTCA]01.1993-02.2002
IVECO400 E 38 9.5[8460.41LTCA]01.1994-11.2000
IVECO240 E 38 9.5[8460.41L.5020]01.1993-02.2002
IVECO400 E 38 9.5[8460.41N]09.1992-11.2000
IVECO400 E 38 9.5[8460.41N]01.1993-02.2002
IVECO440 E 38 9.5[8460.41L.5020]01.1992-11.2000
IVECO190 E 34 9.5[8460.41K.406]04.1992-07.2000
IVECO440 E 38 9.5[8460.41L.5020]01.1993-02.2002
IVECO190 E 34 9.5[8460.41K.406]01/01/93
IVECO440 E 38 9.5[8460.41LTCA]01.1993-02.2002
IVECO8460 9.5[5460.41.970]01/10/89
IVECO440 E 38 9.5[8460.41LTCA]01.1993-02.2002
IVECO8460 9.5[5460.41.970]10.1989-12.1999
IVECO190 E 34 9.5[8460.41K.TCA]11.1999-11.2004
IVECO440 E 38 9.5[8460.41N]01.1992-02.2002
IVECOM 165-24 9.6[8220.22.002]06.1982-09.1989
IVECO190 E 34 9.5[8460.41K]01.1993-11.2004
IVECO440 E 38 9.5[8460.41N]01.1993-02.2002
IVECO8460 9.5[8460SI..]10.1989-12.1999
IVECOM 165-24 9.6[8220.22.002]06.1982-09.1986
IVECO190 E 34 9.5[8460.41K]01.1993-07.2000
IVECO8460 9.5[8460SI..]01/10/89
IVECOM 165-24 9.6[8220.22.002]01.1985-12.1985

Data sheet

Nombre de dents11
Nombre de trous3
Voltage24
