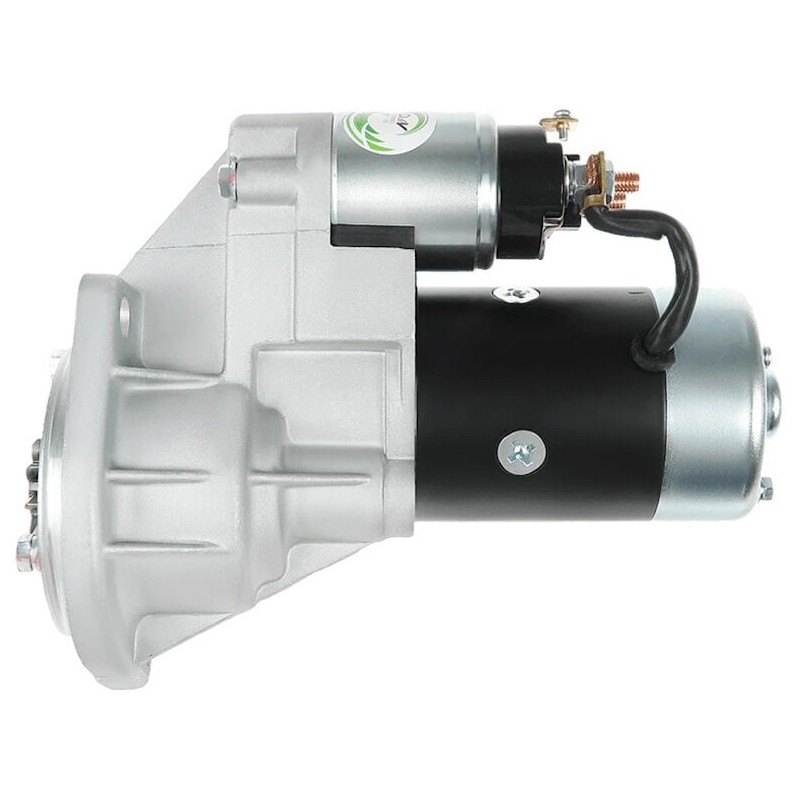

Starter replacing HITACHI S25-212 / S25-120A / S25-120 for ISUZU
Starter replacing
HITACHI S25-120A / S25-120 / S24-13 / S24-03C / S24-03B / S24-03A
ISUZU 5811001280 / 5811001282 / 5811001292 / 8942549221 / 8943205310 / 8943334380
YANMAR 11913177010 / 11913177011
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 3.5 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 94.90 |
| E | Mounting holes | 13.00 |
| E | Mounting holes 2 | 13.00 |
| B | Drive distance | 21.00 |
| F | Distance / Back | 221.00 |
| G | Distance / Front | 21.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 120.00 |
| P | Rotation | Cr |
| R | Total length mm | 248.00 |
Replacing | |
|---|---|
| 119131-77010 | YANMAR |
| 5811000301 | ISUZU |
| 5811001280 | ISUZU |
| 5811001282 | ISUZU |
| 5811001292 | ISUZU |
| 8942549221 | ISUZU |
| 8943205310 | ISUZU |
| 8943334380 | ISUZU |
| js748 | HC-PARTS |
| s24-03a | HITACHI |
| s24-03b | HITACHI |
| s24-03c | HITACHI |
| s24-13 | HITACHI |
| s25-120 | HITACHI |
| s25-120a | HITACHI |
| 012413 |
| 110723 |
| 11913177010 |
| 11913177011 |
| 131505092 |
| 18280 |
| 18280N |
| 18284N |
| 19903 |
| 220608 |
| 22230HI |
| 4271SP |
| 450476 |
| 5811001280 |
| 5811001281 |
| 5811001282 |
| 8942549221 |
| 894259221 |
| 8943205310 |
| 8943334380 |
| 91251116 |
| 913219 |
| 913219N |
| A78070 |
| A90800 |
| AUS112 |
| AUS114 |
| CST20604AS |
| CST20604GS |
| DRS3219 |
| DRS3219N |
| EF19123N |
| F042S04050 |
| JS748 |
| KTR263010184 |
| LRS01834 |
| S2403 |
| S2403+ |
| S2403A |
| S2403B |
| S2403C |
| S2413 |
| S25120 |
| S25120A |
| S25212 |
| S25516 |
| ST18284 |
| STR3031sa |
| STR6103 |
| STR8812sa |
generic brand
fits
| ISUZU | 350 | 4BC1/4BC2/4BD1/4BE1/ | / | / |
| ISUZU | Elf Trucks | 4BC1/4BC2/4BD1/4BE1/ | / | / |
| ISUZU | KS | 4BC1/4BC2/4BD1/4BE1/ | / | / |
| ISUZU | KT | 4BC1/4BC2/4BD1/4BE1/ | / | / |
| ISUZU | NKR | 4BC1/4BC2/4BD1/4BE1/ | / | / |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
