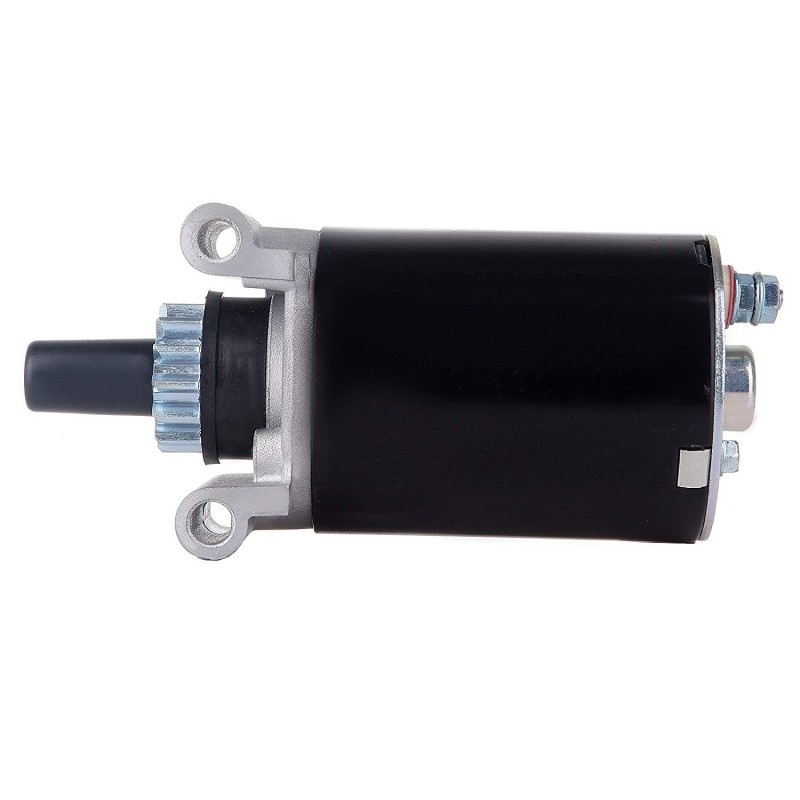

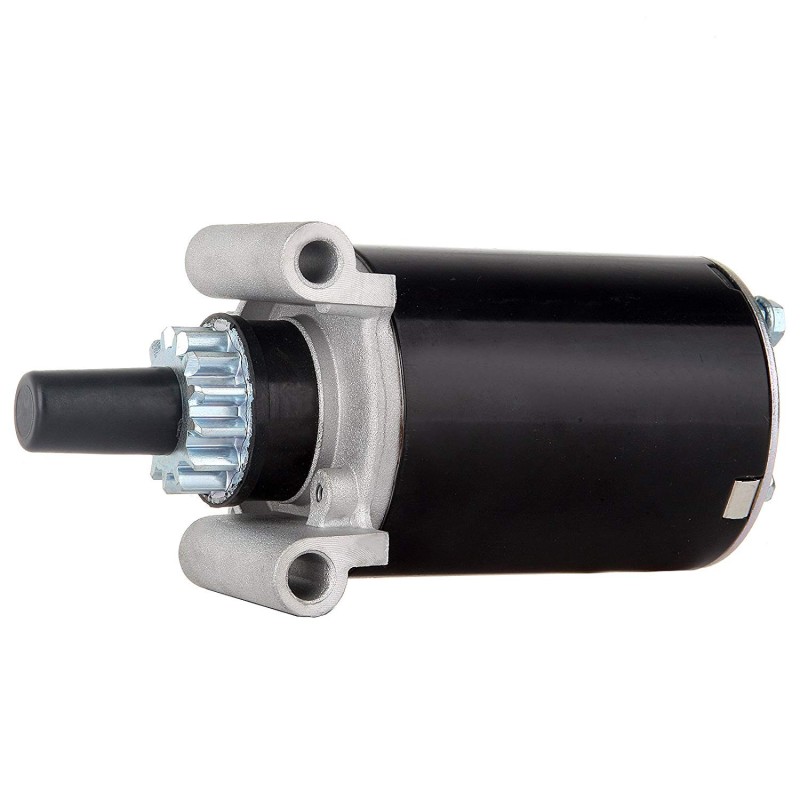

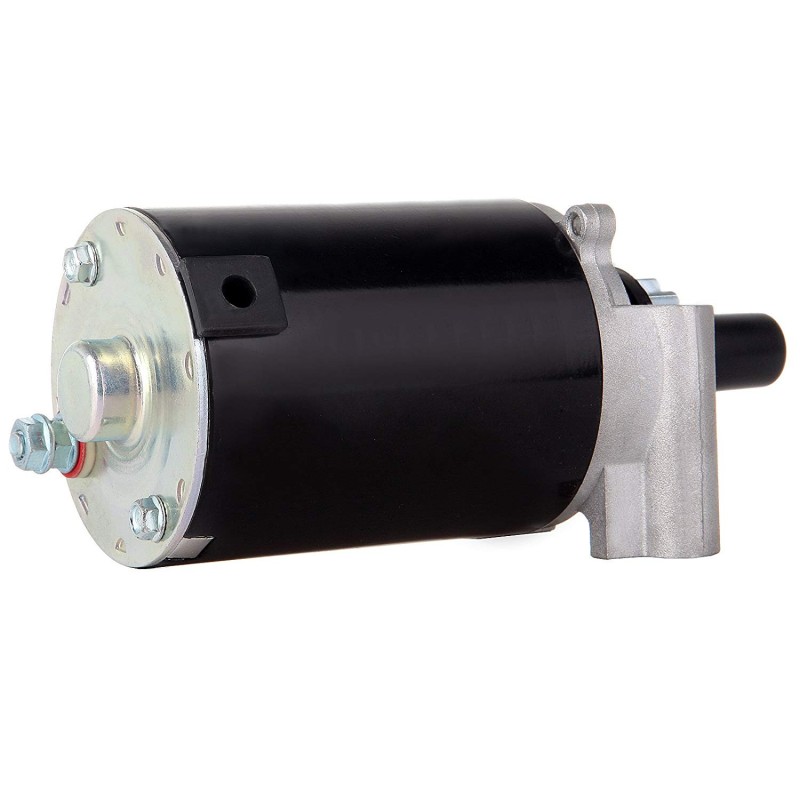

Starter replacing 12-098-05 / 12-098-06 / 12-098-09 / 12-098-12

W112150

New product

3 Items

Starter replacing :

JOHNSON ELECTRIC 6734640, KHOLER 12-098-09, 12-098-19, 12-098-19S, 12-098-21, 12-098-21S, Original Reference Number 5239740, 5278440, 5667040

UNITED TECHNOLOGIES 5239740-M030SM, 5239740MO30SM, 5278440-M030SM, 5278440MO30SM, 5667040-M030SM, 5667040MO30SM, 6734640, SM52397, SM52784, SM56670

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

68,90 € Inc VAT

Add to wishlist

More info

Information:

Electrical Information
Voltage12
Physical Information
EMounting holes8.50
EMounting holes 28.50
BDrive distance17.00
FDistance / Back136.00
GDistance / Front52.00
HNbr of teeth13
IB+1/4" UNC
NGear typeDd
ODistance mm68.00
PRotationCOUNTER CLOCKWISE
RTotal length mm202.00
Replacing
12-098-05KOHLER
12-098-06KOHLER
12-098-09KOHLER
12-098-12KOHLER
1209821KOHLER
12-098-21KOHLER
5239740MO30SMUNITED TECHNOLOGIES
5278440MO30SMUNITED TECHNOLOGIES
5667040MO30SMUNITED TECHNOLOGIES
6734620mo30smUNITED TECHNOLOGIES
8FV351330011HELLA
sm52397UNITED TECHNOLOGIES
sm52784UNITED TECHNOLOGIES
sm56670UNITED TECHNOLOGIES

generic brand

Mounted on :

BrandModelTypYear
CUB CADET1315[12.5H.P.]01.1989-12.1991
CUB CADET1320[12.5H.P.]01.1989-12.1991
CUB CADET1325[12.5H.P.]01.1992-12.1993
CUB CADET133001.1992-12.1993
CUB CADET1340[12.5H.P.]01.1990-12.1991
CUB CADET140501.1990-12.1991
CUB CADET1405[14H.P.]01.1990-12.1991
CUB CADET141501.1988-12.1989
CUB CADET142001.1988-12.1991
CUB CADET171501.1988-12.1990
CUB CADET172001.1988-12.1991
KOHLERC12-501.1998-12.2008
TORO315-8[15H.P.]01.2002-12.2004
TOROGT01.2005-12.2007
TORO264-6[14H.P.]01.1994-12.1996
TORO264-H[14H.P.]01.1994-12.1996
TOROProLine 185[CV14S-1429]01.1991-12.1992
TORO312-801.1998-12.2008
TORO312-8[12.5H.P.]01.1998-12.2001
TORO314-801.1998-12.2008
TORO314-8[14H.P.]01.1999-12.2001
TORO314-8-T01.1998-12.2008
TORO314-H01.1995-12.2005
