W112244

Starter for JOHNSON marine , CUB CADET (1997-2004) , JOHN DEERE (1994-2005) , NEW HOLLAND Industrial (2004-2007) , Scotts (2000-2003) , Toro (1996-2008)

= KHOLER 12-098-02 / 12-098-04 / 12-098-08 / 1209813

12-098-13 / 12-098-15 / 12-098-19 / 12-098-22 / 1209822

= United technologie SM56669 / 6560040 / 6560020MO30SM
5666940MO30SM / 5666940-M030SM / 5278340MO30SM

5278340-M030SM

Read more
€56.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

2-2241 WAI / TRANSPO 1209808 KOHLER
5666940 UNITED TECHNOLOGIES 1209813 KOHLER
5770 LESTER 1209815 KOHLER
SAB0037 ARROWHEAD 1209815S KOHLER
UD13667S AS-PL 1209820 KOHLER
71-09-5770 WILSON 1209822 KOHLER
112244 CARGO 1209822S KOHLER
2-2241-1 WAI / TRANSPO 20607113 DIXIE
2-2241-UT WAI / TRANSPO 5225040M030SM UNITED TECHNOLOGIES
5770N WAI / TRANSPO 5225040MO30SM UNITED TECHNOLOGIES
5770N-OE WAI / TRANSPO 5278340M030SM UNITED TECHNOLOGIES
10440804 ALANKO 5278340MO30SM UNITED TECHNOLOGIES
F032112244 BOSCH 5666940M030SM UNITED TECHNOLOGIES
106-10140 ROBERT'S 5666940MO30SM UNITED TECHNOLOGIES
106-10140NOE ROBERT'S 6560040 UNITED TECHNOLOGIES
1209802 KOHLER 91-09-1044 WILSON
1209804 KOHLER AM122435 JOHN DEERE
STR88212 WOODAUTO K0H1209822 NEW HOLLAND
WOOSTR88212 WOODAUTO K0H1209822S NEW HOLLAND
332240 LOGISTIK SM56669 UNITED TECHNOLOGIES
STZ6669 KRAUF STR1049 UNIPOINT

Features

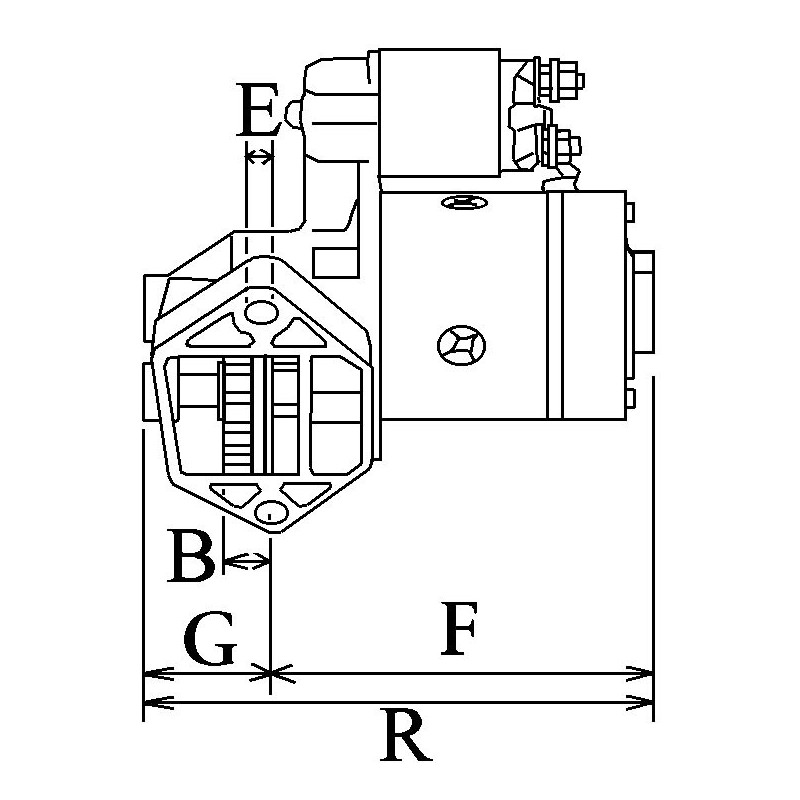

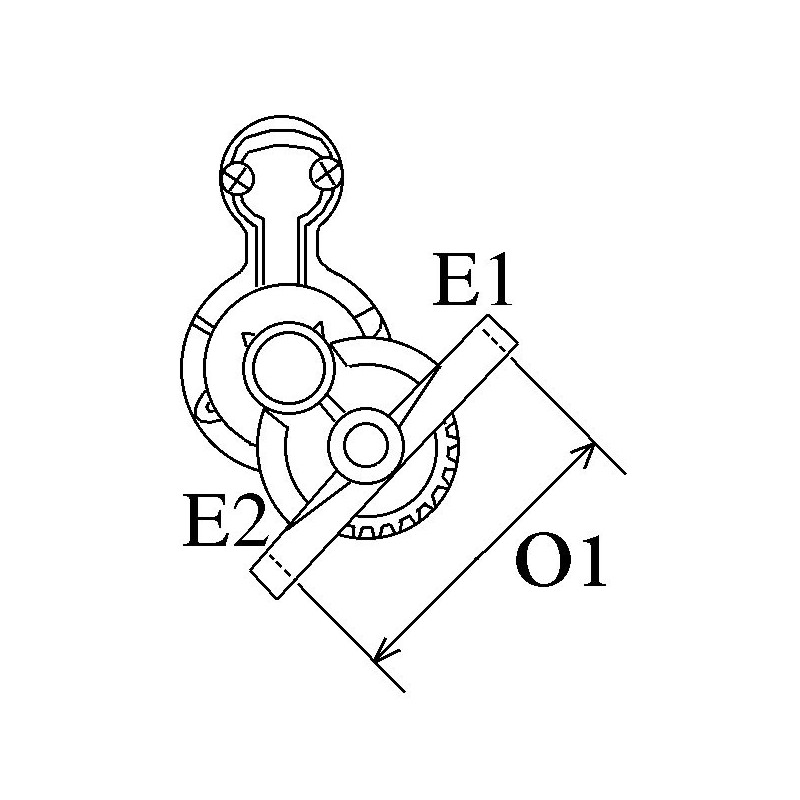

Information:

Voltage 12

B = Drive distance 17.50

H = Nbr of teeth 13

I = B+ 1/4" UNC

N = Gear type Dd

O = Distance mm 68.45

P = Rotation COUNTER CLOCKWISE

R = Nbr of mounting holes 2 (0)

Clutch Tipo Dry

Drive Tipo Steel

generic brand

JOHN DEERE AM122435

JOHNSON ELECTRIC 6560040

KHOLER 12-098-02, 12-098-04, 12-098-08, 12-098-13, 12-098-15, 12-098-15S, 12-098-20, 12-098-22, 12-098-22S

NEW HOLLAND K0H1209822, K0H1209822S

Original Reference Number 5225040, 5278340

UNITED TECHNOLOGIES 5225040-M030SM, 5225040MO30SM, 5278340-M030SM, 5278340MO30SM, 5666940, 5666940MO30SM, 6560040, SM56669

                   NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY

Mounting on

Brand Model Typ Year
CUB CADET LT1018LE [18H.P.] 01.2004-12.2004
CUB CADET Z42 [15H.P.] 01.1997-12.1999
CUB CADET 1515 [15H.P.] 01.2002-12.2002
CUB CADET 1517 [17H.P.] 01.2002-12.2002
JOHN DEERE L110 [17.5H.P.] 01.2003-12.2005
JOHN DEERE LT133 [13H.P.]
JOHN DEERE LT150 [15H.P.]
JOHN DEERE LT155 [15H.P.]
JOHN DEERE LT160 [16H.P.]
JOHN DEERE LTR155 [15H.P.]
JOHN DEERE Sabre 17.542HS   01.2002-12.2003
JOHN DEERE SST15 [CVS15S-15H.P.] 01.2001-12.2004
JOHN DEERE 7G18 [18H.P.] 01.2009-12.2011
JOHN DEERE 7G18 [CV943T-15H.P.] 01.2005-12.2009
JOHN DEERE STX46 [15H.P.] 01.1995-12.2005
NEW HOLLAND MY16 [16H.P.] 01.2004-12.2014
NEW HOLLAND MZ17H [18H.P.]
SCOTTS S2048 [20H.P.] 01.1999-12.2009
TORO 265-6 [15H.P.] 01.1998-12.2000
TORO 265-6 Yard Tractor [15H.P.] 01.1996-12.1997
TORO 265-H [15H.P.] 01.1996-12.2002
TORO 266-H [16H.P.] 01.2001-12.2002
TORO 266-HE [16H.P.] 01.2001-12.2002
TORO TimeCutter ZX440 Riding Mower [490cc] 01.2006-12.2008
TORO Wheelhorse 265-6 [CV15S-PS41550-15H.P.] 01.1998-12.2008
TORO Wheelhorse 265-H [15H.P.] 01.1998-12.2008
TORO 410 Garden Tractor [460cc] 01.2005-12.2005
TORO 416XT Garden Tractor [16H.P.] 01.2003-12.2004
TORO Z17-44 TimeCutter Z Riding Mower [17H.P.] 01.2001-12.2002
TORO Z17-52 TimeCutter Z Riding Mower [17H.P.] 01.2001-12.2002
TORO MZ17H [18H.P.] 01.2006-12.2006
TORO 18-52ZX TimeCutter ZX Riding Mower [18H.P.] 01.2003-12.2004
