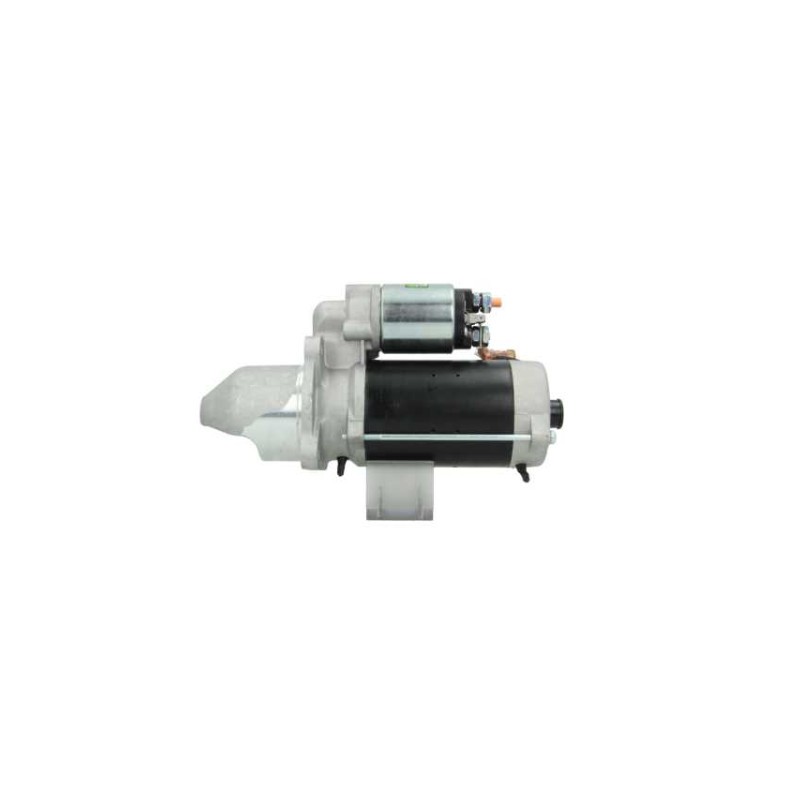

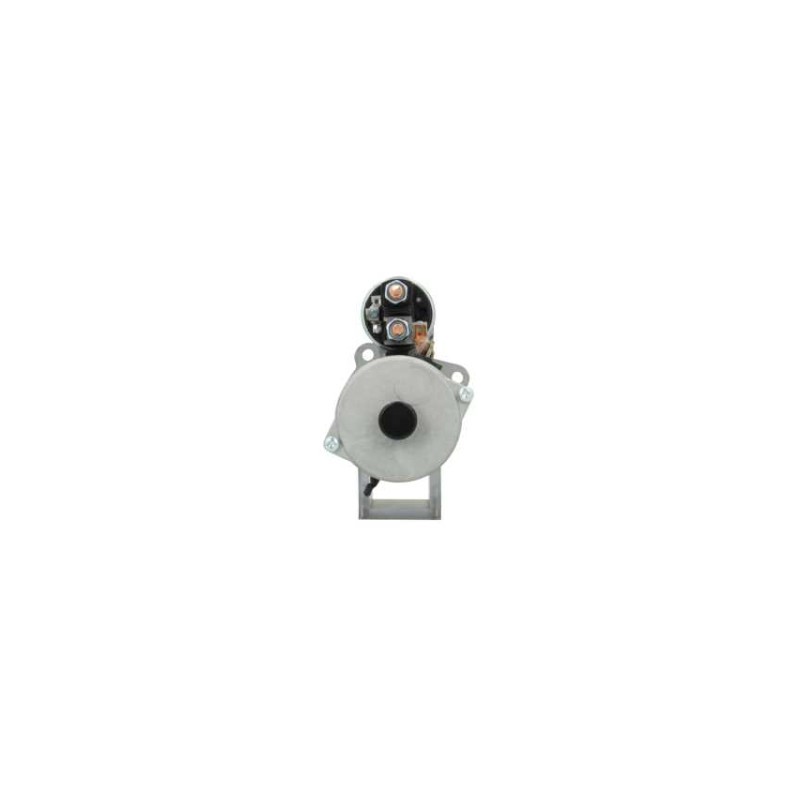

Starter replacing RE501551 / 0001230018 / 0001230008 / RE507943
Starter replacing :
BOSCH 0001230018 / 0001230008
DELCO REMY DRS0362
JOHN DEERE RE501551 / RE507943
UNIPOINT STR22096
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 3.0 | |
| H | Nbr of teeth | 10 |
| P | Rotation | Cr |
| N | Gear type | Gr |
| A | Mount flange | 89.00 |
| I | B+ | M10 |
| B | Drive distance | 51.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| E | Mounting holes 3 | 10.50 |
| F | Distance / Back | 206.00 |
| G | Distance / Front | 108.00 |
| K | Thread length mm | 20.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 126.00 |
| O | Distance 2 | 89.00 |
| O | Distance 3 | 89.00 |
| R | Total length mm | 312.00 |
Replacing | |
|---|---|
| 0001230008 | BOSCH |
| 0001230018 | BOSCH |
| RE501551 | JOHN DEERE |
| RE507943 | JOHN DEERE |
generic brand
Mounted on :
JOHN DEERE
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
