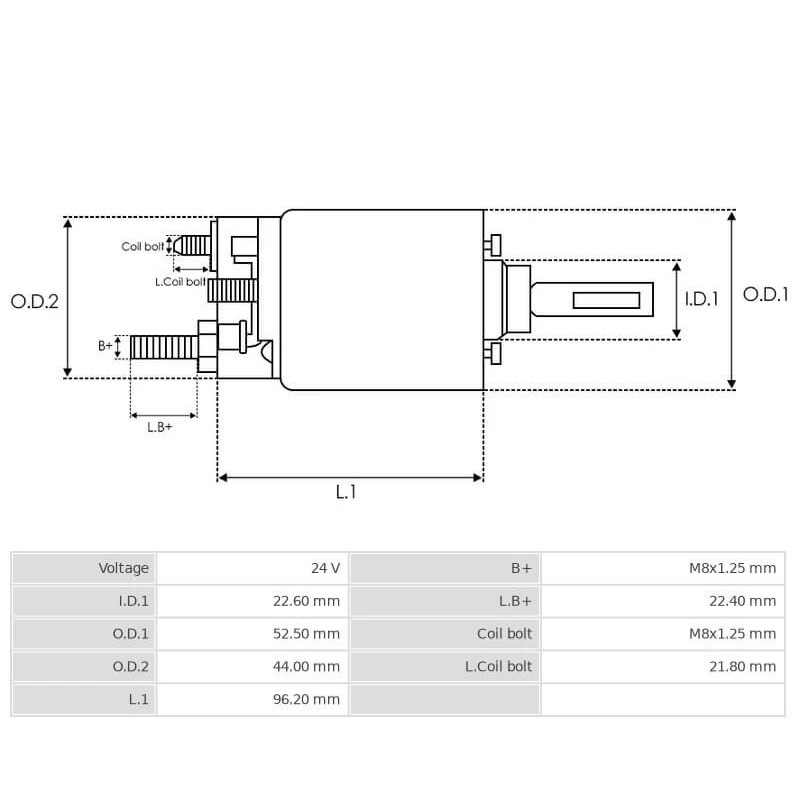

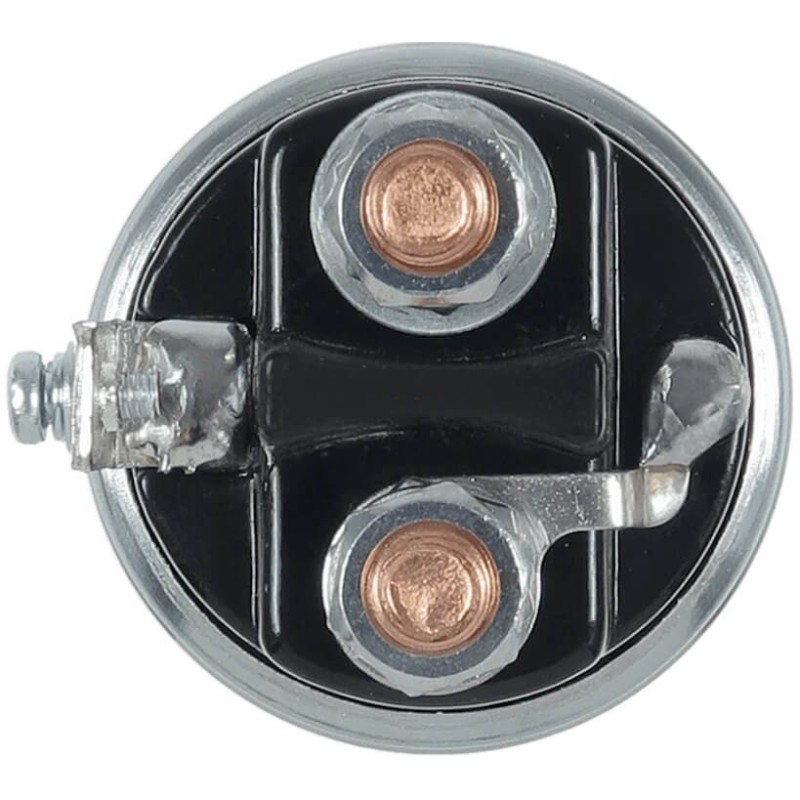

Solenoid for starter HITACHI S24-64B / S25-128 / S25-129A / S25- 129C

Information: Voltage 24, DE 51.90, Total length mm 165.15

Bolt Coil M8, DE/capot 45.10, DI capot 20.45

  B+ M8, Height/B+ 20.90, Kl. 50/mm 9.40

Bolt Coil l. 20.90, Height/kl. 50 12.35, No./terminals 3

= HITACHI 2250M-4700 / 2250I-9700 / 2250-m4700

2250-i9700 / 2250-77003 / 2250-5700 / 2250-27002

also for starter HITACHI S25-132C / S25-132F / S25-64B
