Solenoid for starter HITACHI s13-115 / S13-115A / S13-120A

Display all pictures

Solenoid for starter HITACHI s13-115 / S13-115A / S13-120A

Reference: w138739

Condition: New product

2 Item Items

Relay / Solenoid for starter HITACHI

s13-115

S13-115A

S13-120A

S13-294

S13-94

S13-94A

More info

More info

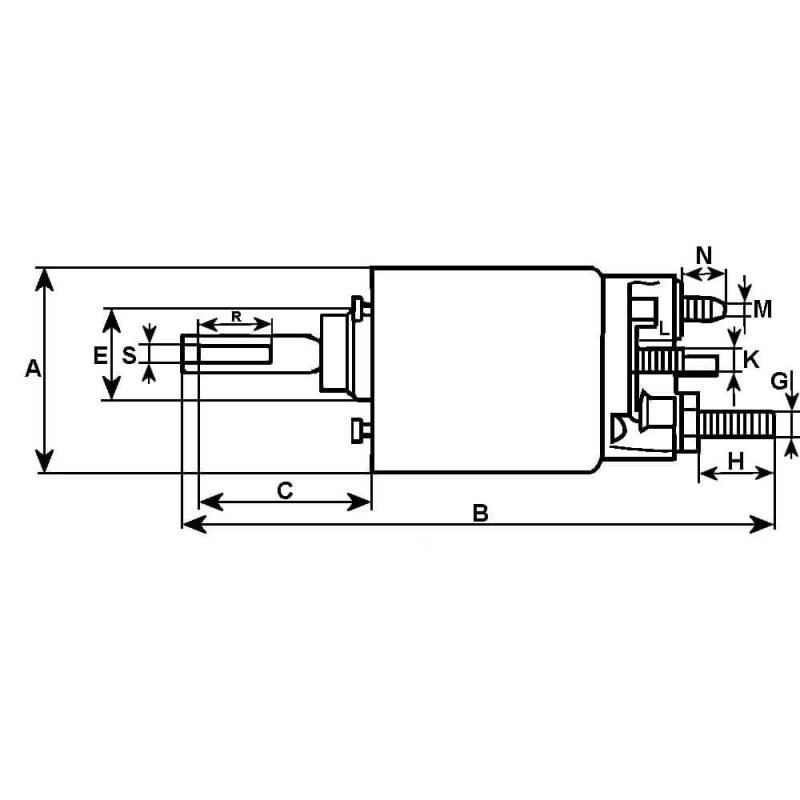

Physical information
A	OD mm	52.20
B	Total length mm	124.85
	No./mount. holes	2
E	ID/cover mm	21.75

Plunger information
Q	Length mm	46.00
	Fork Lever	w/
S	ID/eye	4.90

Bracket information
D	OD/cover mm	44.70
G	B+	M8
	Height/B+	23.25
	Terminal 50/mm	6.30
M	Coil bolt	M8
N	Coil bolt l.	22.20
	No./terminals	3

Electrical information
	Voltage	12

generic brand

Replacing
129400-77530	Yanmar
2130-17010	Hitachi
2130-47005	Isuzu
2130-47005	Hitachi
689	ZM
ZM 689	ZM
