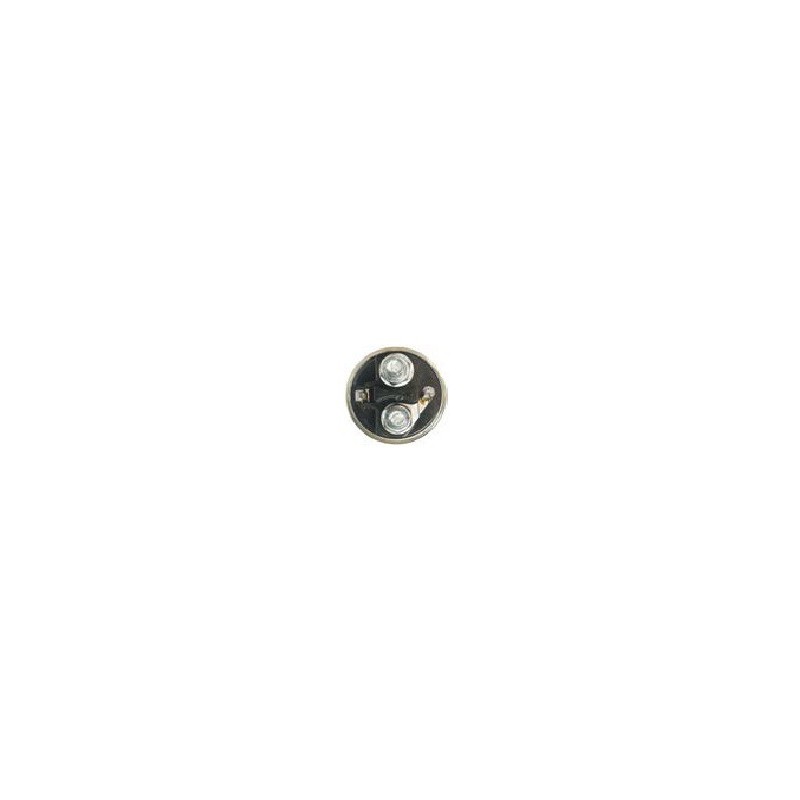

Solenoid for starter Lucas 063216727010 / 063216731010 / 063216733010

w131115

New product

1 Item

Solenoifrom 24 volts No./terminals 3  Bolt type M10

= Lucas 063633933010/ 085540211010/ tob811

= Fiat 7980336 /9986109

= Magneti Marelli ie39aaa / 85540211 / 85540111 / 79036685

 63633933 / 63633925 / 63633902 / 63633901



39,90 € TTC

Send to a friend

Send to a friend

Solenoid for starter Lucas 063216727010 / 063216731010 / 063216733010

Solenoid for starter Lucas 063216727010 / 063216731010 / 063216733010

Solenoifrom 24 volts No./terminals 3  Bolt type M10

= Lucas 063633933010/ 085540211010/ tob811

= Fiat 7980336 /9986109

= Magneti Marelli ie39aaa / 85540211 / 85540111 / 79036685

 63633933 / 63633925 / 63633902 / 63633901



Recipient :

* Required fields

  or  Cancel

More info

Information:

Voltage 24

A = DE mm 60.80

B = Total length mm 157.80

M = Bolt Coil M10

D = DE/capot mm 54.70

E = DI capot mm 30.00

G = B+ M10

H = Height/B+ 20.35

K = Kl. 50/mm 6.30

N = Bolt Coil l. 20.35

L = Height/kl. 50 14.00

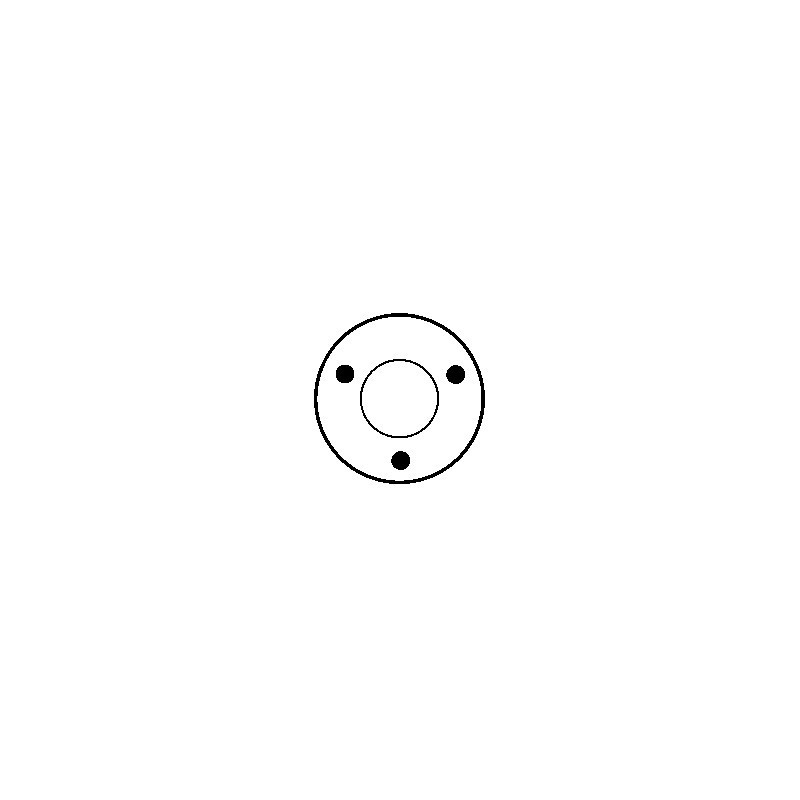

No./terminals 3

also for starter Lucas 063216740010 / 063216741010

063216748010 / 063217225010 / 063217226010

=Lucas 063633933010/ 085540211010/ tob811

also for starter Magneti Marelli :

63216703 / 63216725

63216726 / 63216727 / 63216731 / 63216733 / 63216738

63216740 / 63216741 / 63216747 / 63216748 / 63216763

MT67 / MT67AC / MT67AD / MT67BA / MT67CA / MT67CB

MT67DA / MT67FA / MT67FB / MT71SB / MT72AA / MT72AB

=Fiat 7980336 /9986109

= Magneti Marelli ie39aaa / 85540211 / 85540111 / 79036685

 63633933 / 63633925 / 63633902 / 63633901



063216727010LUCAS
063216731010LUCAS
063216733010LUCAS
063216740010LUCAS
063216741010LUCAS
063216748010LUCAS
063217225010LUCAS
063217226010LUCAS
63216703MAGNETI MARELLI
63216725MAGNETI MARELLI
63216726MAGNETI MARELLI
63216727MAGNETI MARELLI
63216731MAGNETI MARELLI
63216733MAGNETI MARELLI
63216738MAGNETI MARELLI
63216740MAGNETI MARELLI
63216741MAGNETI MARELLI
63216747MAGNETI MARELLI
63216748MAGNETI MARELLI
63216763MAGNETI MARELLI
63217201MAGNETI MARELLI
63217225MAGNETI MARELLI
63217226MAGNETI MARELLI
63221630MAGNETI MARELLI
MT67AAMAGNETI MARELLI
MT67ACMAGNETI MARELLI
MT67ADMAGNETI MARELLI
MT67BAMAGNETI MARELLI
MT67CMAGNETI MARELLI
MT67CAMAGNETI MARELLI
MT67CBMAGNETI MARELLI
MT67DAMAGNETI MARELLI
MT67DBMAGNETI MARELLI
MT67FAMAGNETI MARELLI
MT67FBMAGNETI MARELLI
MT72AMAGNETI MARELLI
MT72AAMAGNETI MARELLI
MT72ABMAGNETI MARELLI
063207234000MAKO
