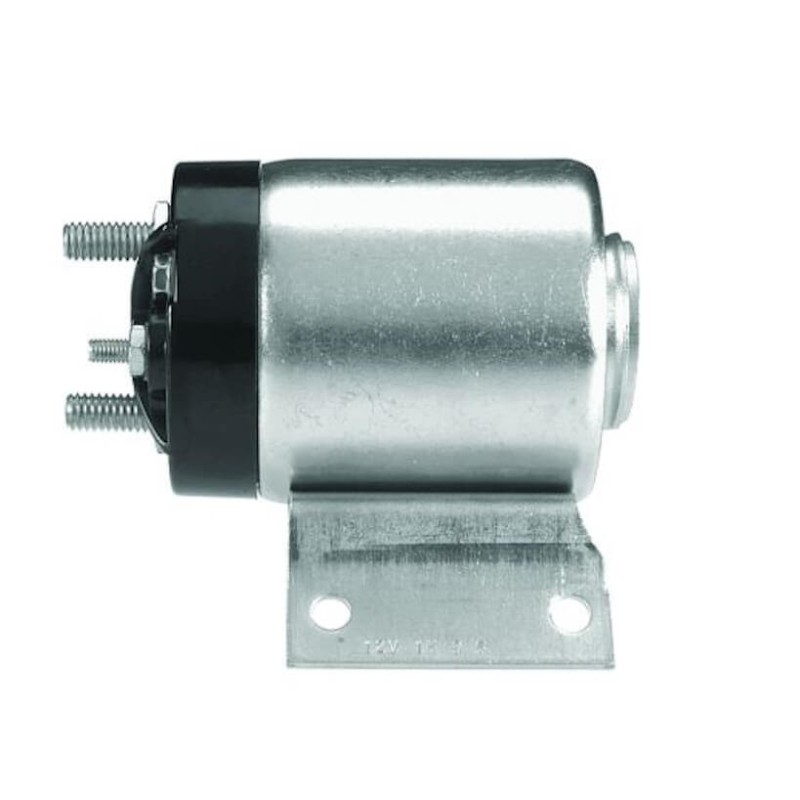

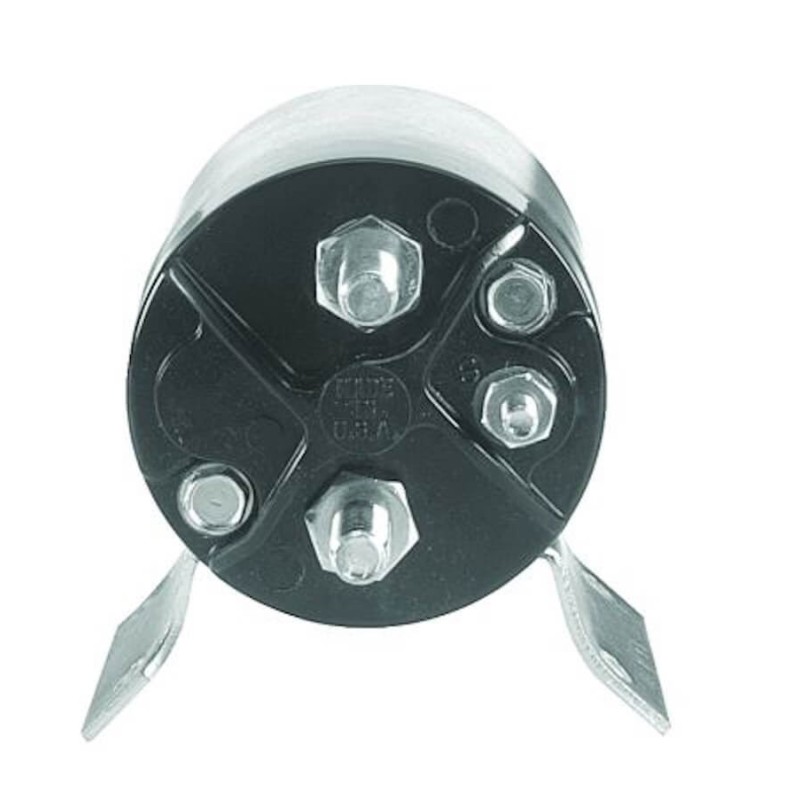

Relay replacing PRESTOLITE SAD-4401 / SAD-4403 / SAD-4503 / SAF-4001 / SAG-4001

 generic brand

Information:

Voltage 12

A = DE mm 66.40

B = Total length mm 110.65

M = Bolt Coil M8

D = OD/cover mm 65.90

E = DI capot mm 31.95

G = B+ M8

H = Height/B+ 21.00

K = Kl. 50/mm M4

N = Bolt Coil l. 19.75

L = Height/kl. 50 12.80

No./terminals 3

replacing :

CHRYSLER 1692659, 1889799, PRESTOLITE 15-1, 15-325, 15-4, 15-57, 15-61, 15-62, 15-63, 15-64, SAD-4401, SAD-4403, SAD-4501, SAD-4502

for :

CARRIER TRANSICOLD 30-00308-00

CHRYSLER 1642140, 1689342, 1770712, 1922641, 1941119; FORD B8C-11002-A

HYSTER 3003779, 3003786; Onan 191-0324, 191-0658, 191-1209

PRESTOLITE 46-10, 46-115, 46-128, 46-129, 46-185, 46-190, 46-191, 46-2242, 46-2427, 46-246, 46-2465, 46-2663, 46-310, 46-863, 46-879, 46-953, MBJ6001, MCL6003, MDF6001, MDF6005, MDF6006, MDF6008, MDF6013, MDF6015, MDF6016, MDL6001, MDL6002, MDL6005, MDL6020, MDT6002, MDT6003, MDT6009, MDT6012, MDT6012BT, MDT6012C, MDT6013, MDT6013A, MDT6014, MDT6018, MDT6021, MDT6023, MDT6023T, MDU6019, MEO6001, MEO6003, MEO6004, MEO6005, MEO6005A, MEO6009

THERMO KING 3041C58G01, 4079D65G01, 44-4731, 44-4753, 45-267, 45-338; Yale 5099304-00, 599904-00

fits:

CARRIER TRANSICOLD (1978-1996) , Case (1956-1958) , CHRYSLER (1957-1960) , Eaton (1963-1984) , MERCEDES-BENZ (1961-1975) , Onan (1960-1988) , Stufrombaker (1956-1956) , Yale (1972-1978)
