Solenoid for starter BOSCH 0001218157 / 0001218757 / 0001223001

Display all pictures

Solenoid for starter BOSCH 0001218157 / 0001218757 / 0001223001

Reference: w137491

Condition: New product

1 Item Items

Solenoid BOSCH for starter BOSCH 0001218157 / 0001218757 / 0001223001 / 0001223014

More info

More info

Information:

Electrical Information
Voltage		12

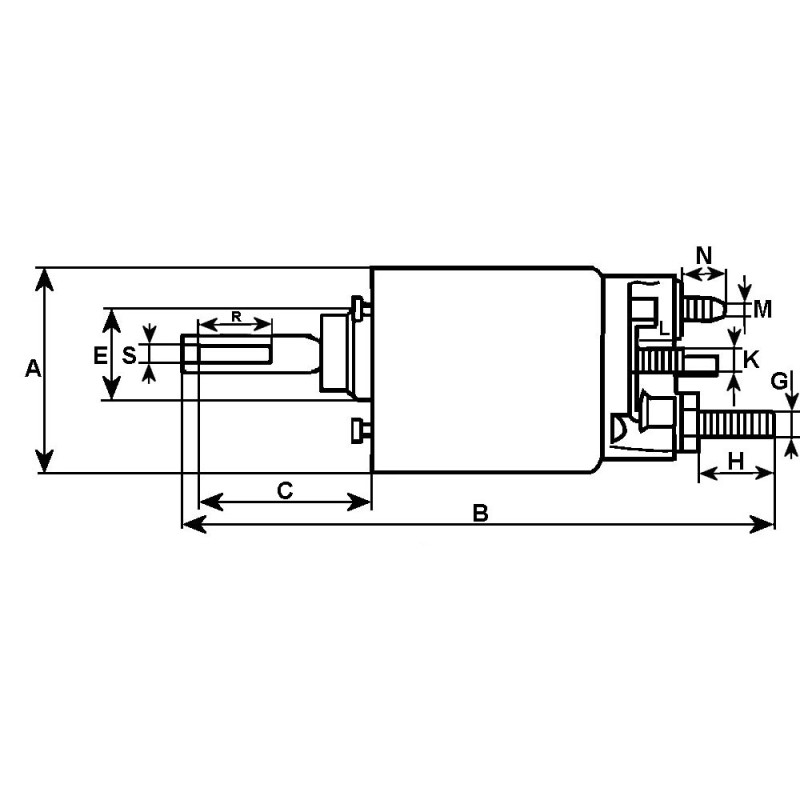

Physical Information
A	DE mm	56.30
B	Total length mm	152.20

Support
M	Bolt Coil	M8
D	OD/cover mm	49.35
E	DI capot mm	27.00
G	B+	M8
H	Height/B+	22.75
K	Kl. 50/mm	M5
N	Bolt Coil l.	7.90
L	Height/kl. 50	9.45

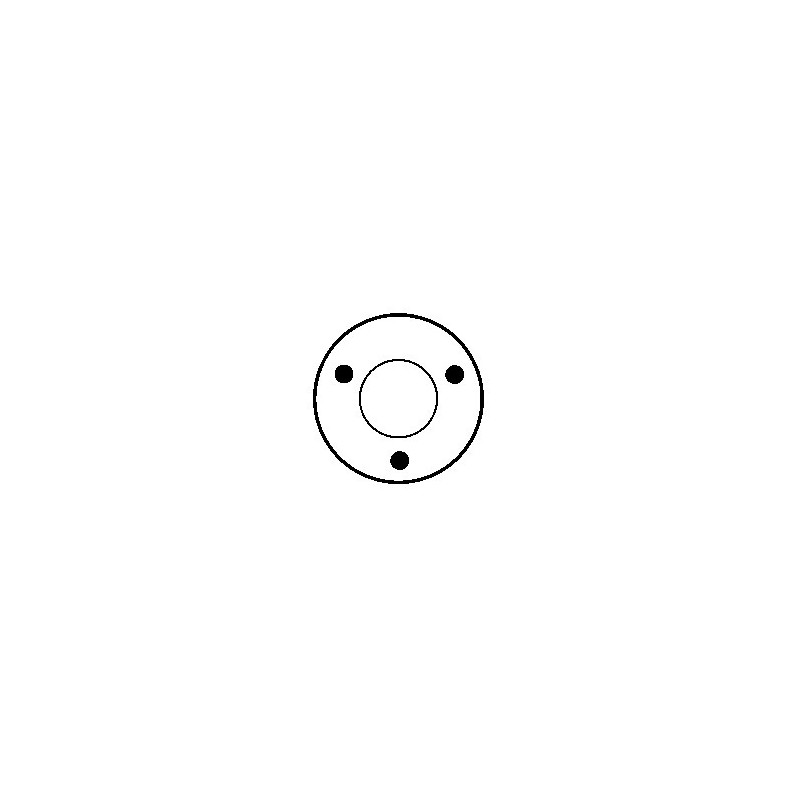

No./terminals		3

Replacing
2339303857	BOSCH
9330331001	BOSCH

for starter BOSCH :

0001218157 / 0001218757 / 0001223001 / 0001223014
